Sq Ft
5,309 FT²
Bed
5
Bath
4.5
Stories
2
Garage
3
Depth
85' 10"
Width
93'
On Sale
$1,355.75
$1,595.00
© copyright by architect

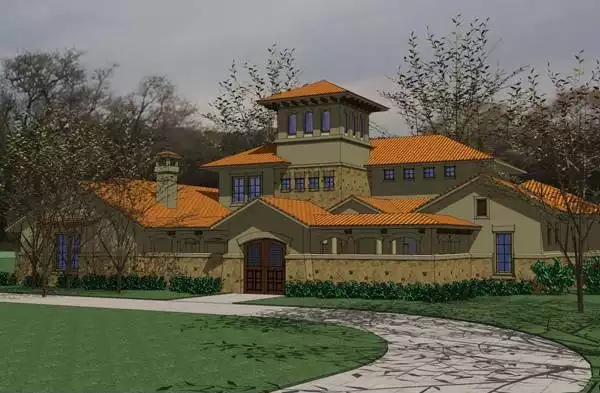

View All 1 Images | Photographs may reflect modified home
Sq Ft
5,309 FT²
From
$1,355.75
Bed
5
Bath
4.5
Stories
2
Garage
3
Depth
85' 10"
Width
93'

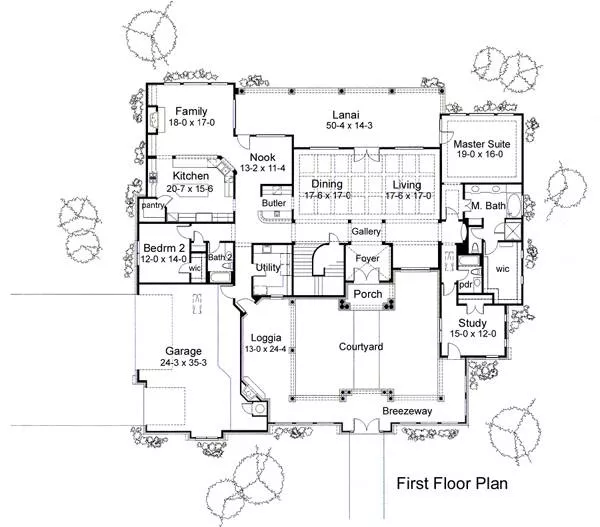

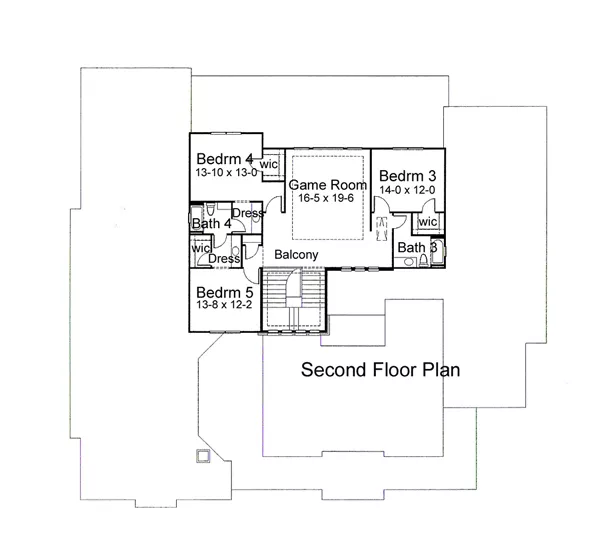

Click to Zoom In on Floor Plan
© copyright by architect



About This Plan

This home is the epitomy of relaxed and elegant living. A casual courtyard with outdoor fireplace is perfect for a siesta on a breezy day. The open Formal Dining and Living are accentuated with a coffered ceiling and views to the Lanai. The Master Wing is luxurious with a fully equiped Bath and a huge walk-in closet. The secluded Study provides a quite workspace away from the hustle of the rest of the home. This home if full of charming and warm details that make this plan a dream come true.


FEATURES & DETAILS

Exterior features
Front Porch
Foundation Options
Basement
Crawlspace
Slab
Walkout Basement
Garage Location
Side
Garage Options
Attached
5,309 Ft
2
Total Heated
3,914 Ft
2
1st Floor
1,395 Ft
2
2nd Floor
5
Bedrooms
4.5
Bathrooms
3
Garage
2
Stories
93' 0"
Width
85' 10"
Depth
2x4
Framing
Stick
Roof Framing
6/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
914 Ft
2
Garage
1,467 Ft
2
Porch
822 Ft
2
Patio


Plan Package Options

 Select Plan Package
$1,595
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,595
$1,745
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,745
$1,845
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,845
$2,395
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,395
$2,790
CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$2,790
 Need To Reverse Plan? (Optional)
$195
Readable Reverse

Reverse house plans with readable text and dimensions

$195
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
