House Plan 5813: The San Gabriel

This floor plan is loaded with custom features. The spacious Kitchen offers a large island with vegetable sink, as well as plenty of storage and a built-in desk. The generous Great Room is cozy and inviting with or without the optional fireplace.  Read more >

House Plan Details

Sq. Ft.
2,549
Beds
4
Baths
2.1
Stories
2
Garages
2
Width
58' 6"
Depth
61' 4"
1st Floor
1,773
2nd Floor
776
Garage
567
Porch
396
Select Plan Package
Five Sets
$780
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $650

PLAN IMAGES

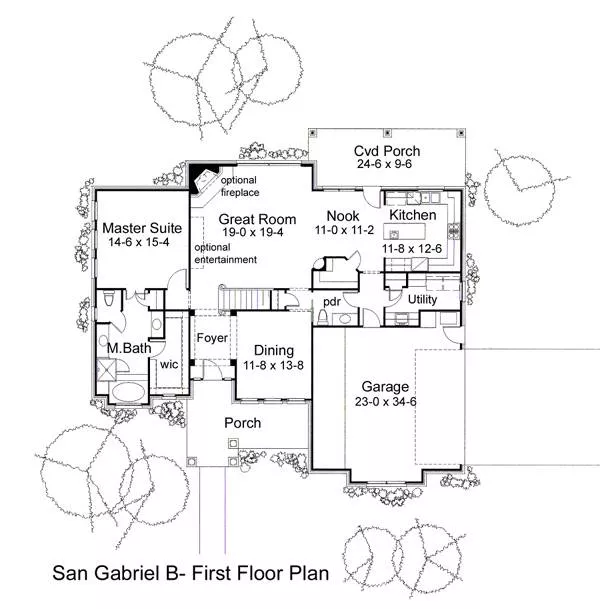

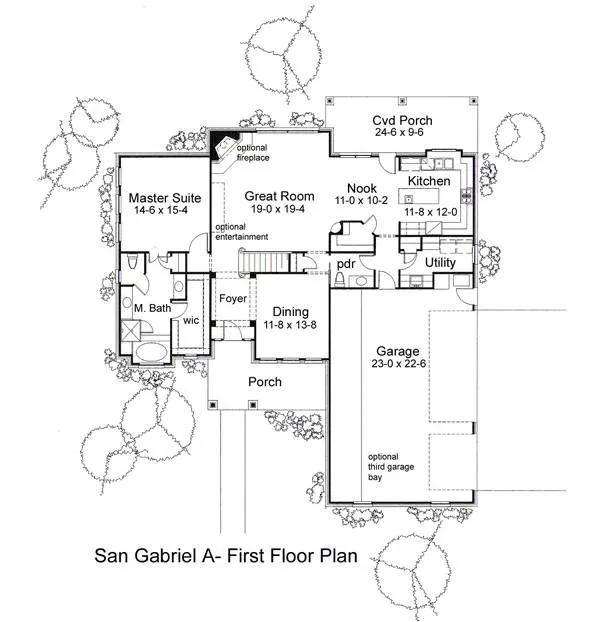

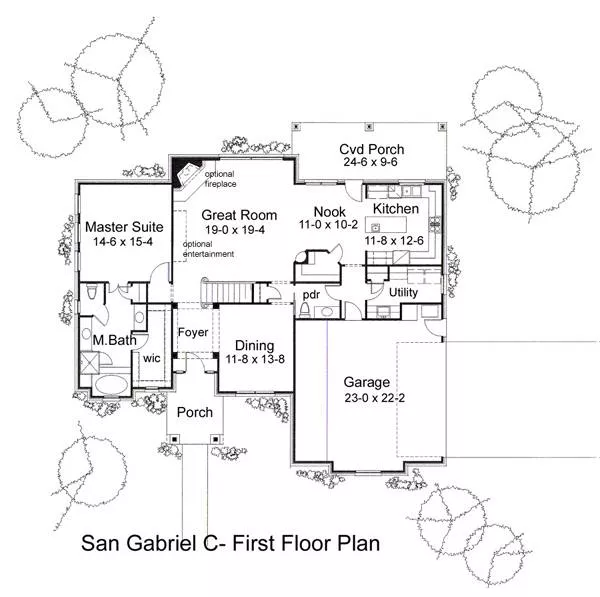

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 2.1
Garage: 2
Stories: 2
Exterior Style
Contemporary
European
Modern
Dimensions
Width: 58' 6"
Height: 28' 1"
Depth: 61' 4"
Heated Living Space
Total Sq. Ft: 2,549
1st Floor: 1,773
2nd Floor: 776
Unheated Living Space
Garage: 567
Porch: 396
Ceiling
Upper Ceiling Ft: 9
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Kitchen Features
Walk-in Pantry
Walk-in Pantry
Additional Room Features
Garage Location
Side
Garage Features
Attached
Attached
Lot Features
Roof Pitch
Primary: 8:12
Gable: 12:12
Porch: 4:12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
