House Plan 3236: The Retreat at Waters Edge

"Best of Show" winner at both the 2006 Seattle Street of Dreams and the 2007 AIBD Design Competition, the Retreat was inspired by the timeless villas of Tuscany. The shingle-style estate's five structures are joined by trellised arbors and sheltering roofs, its traditional forms complementing floor plans designed for active lifestyles.  Read more >

House Plan Details

Sq. Ft.
9,820
Beds
4
Baths
6.2
Stories
2
Garages
4
Width
126' 0"
Depth
94' 0"
1st Floor
5,472
2nd Floor
3,758
Lower
590
Garage
1,872
Select Plan Package
PDF Files - Single Use Li
$3900
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0

Note: This plan cannot be purchased for construction in Washington State.

PLAN IMAGES

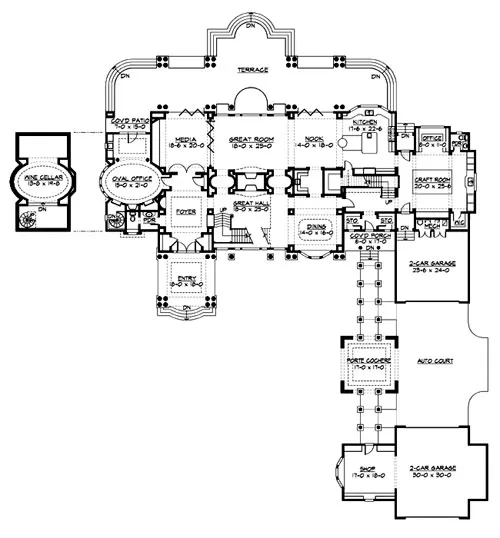

Main Floor
