House Plan 5422: The Rayburn

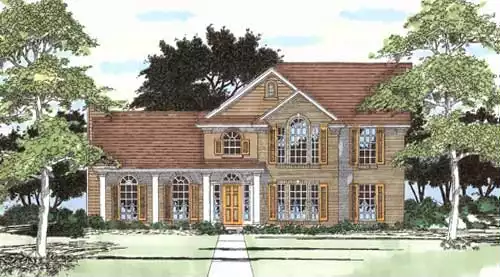

The front porch columns and arched windows add elegant detail to the facade of this European style home. A vaulted ceiling great room, a guest suite and office are locatd conveniently on the first floor level. A two car detached garage plan is included.  Read more >

House Plan Details

Sq. Ft.
2,484
Beds
4
Baths
3.0
Stories
2
Garages
2
Width
51' 6"
Depth
43' 0"
Select Plan Package
PDF Plan Package
$1445
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,484
1st Floor SQ. FT.:
1,574
2nd Floor SQ. FT.:
910
Bedrooms:
4
Bathrooms:
3.0
Garage:
2
Stories:
2
Main Ceiling Height:
9'
Upper Ceiling Height:
9'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 6/12
Secondary: 8/12
Width:
51' 6"
Depth:
43' 0"
Height:
26' 9"
Exterior Styles:
Traditional
Unheated Living Space:
Porch: 128
Patio: 79
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Garage Features:
Detached
Garage Location:
Lot Features:
