House Plan 5421: The Crockett

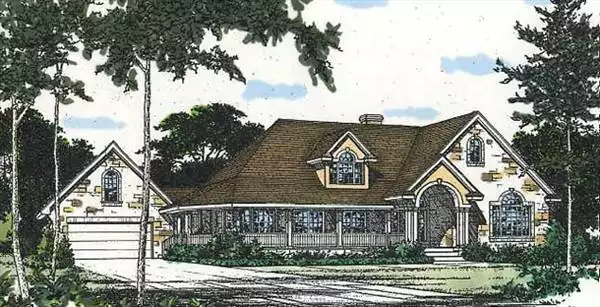

This European country style home has an arched entry with columns, a wraparound front porch and covered deck at the rear. The utility/mudroom has a separate entry from the side porch. Interior features include remote guest suite and an optional bonus room above the garage.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,481
Beds
4
Baths
3.0
Stories
1
Garages
2
Width
88' 3"
Depth
60' 0"
Modify this Home Plan
Estimate the Cost to Build
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF Plan Package
$1445
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

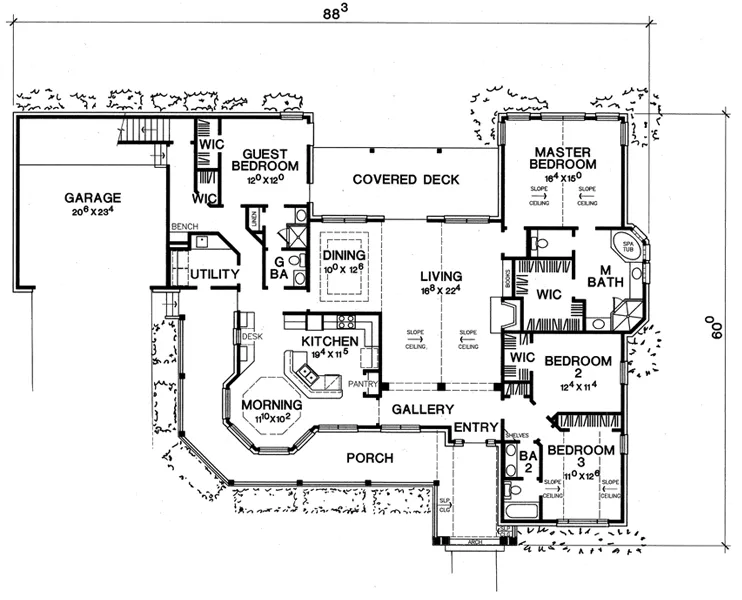

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,481
1st Floor SQ. FT.:
2,481
Bonus:
281
Bedrooms:
4
Bathrooms:
3.0
Garage:
2
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
8/Slope'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 10/12
Secondary: 12/12
Dormer: 12/12
Porch: 6/12
Width:
88' 3"
Depth:
60' 0"
Height:
23' 2"
Exterior Styles:
Country
Southern
Traditional
Unheated Living Space:
Garage: 513
Porch: 534
Deck: 267
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features:
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Additonal Features:
Bonus Room
Dining Room
Fireplace
Foyer
In-law Suite
Laundry 1st Fl
Mud Room
Rec Room
Unfinished Space
Vaulted Ceilings
Garage Features:
Attached
Front-entry
Garage Location:
Side
Lot Features:
