House Plan 1516: The Raleigh

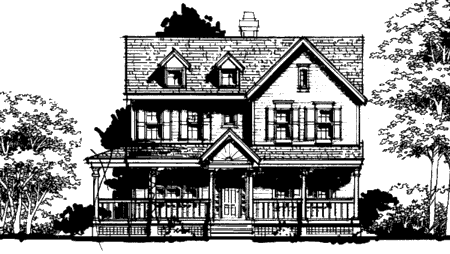

Enjoy the lovely exterior features of this home, which include a gorgeous gabled roof, lap siding and a covered entry that invites guests inside. The interior hosts a bayed living room with a two-story, vaulted ceiling. The modern kitchen features a vaulted breakfast nook and a convenient design.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
2,667
Beds
4
Baths
3.0
Stories
2
Garages
3
Width
35' 0"
Depth
88' 0"
1st Floor
1,554
2nd Floor
1,113
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Five Sets
$747
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $672
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

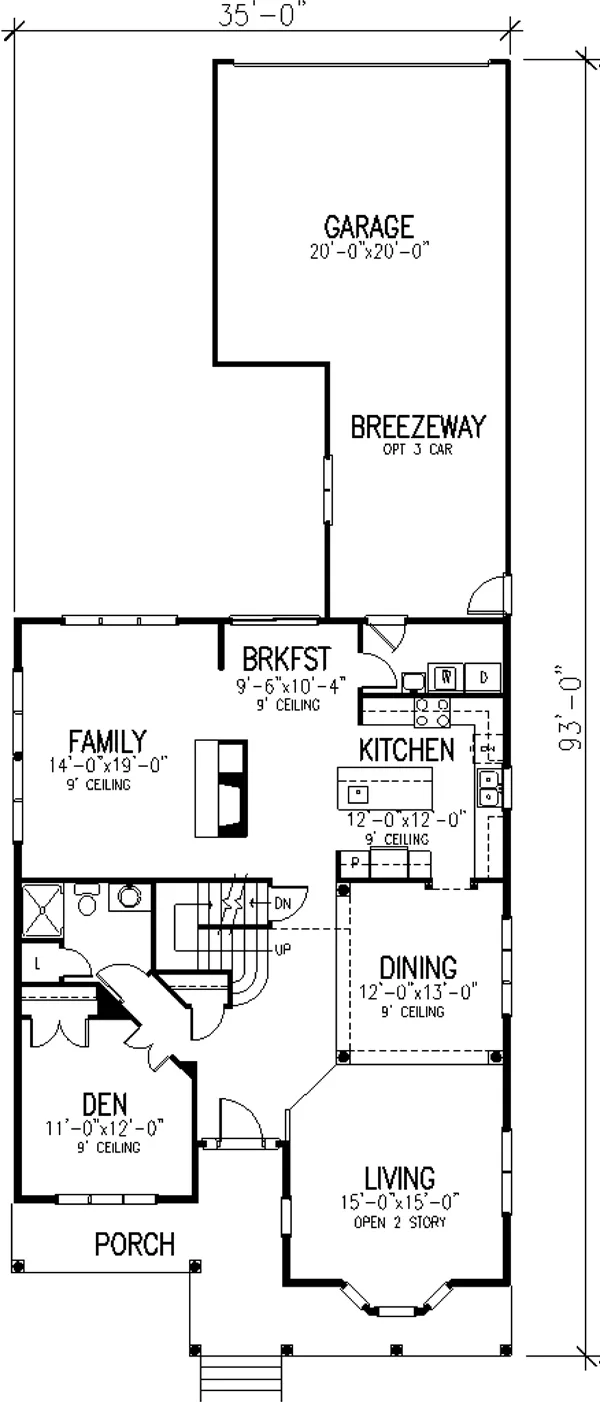

Main Floor Plan

Main Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.0
Garage: 3
Stories: 2
Exterior Style
Cottage
Farm House
Traditional
Dimensions
Width: 35' 0"
Height: 28' 0"
Depth: 88' 0"
Heated Living Space
Total Sq. Ft: 2,667
1st Floor: 1,554
2nd Floor: 1,113
Unheated Living Space
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft:
Framing Information
Framing: 2x6
Roof Framing: Combination
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
Rear
Garage Features
Attached
Tandem
Lot Features
Suited for narrow lot
Suited for view lot
Roof Pitch
