Search Plans


Sq Ft
2,020 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
54'

Width
66'
From
$1,295.00
© copyright by designer

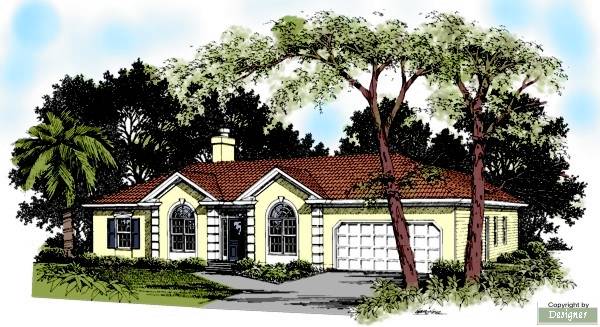

View All 2 Images | Photographs may reflect modified home
Sq Ft
2,020 FT²
From
$1,295.00
Beds
3
Baths
2
Stories
1
Garage
2
Depth
54'
Width
66'

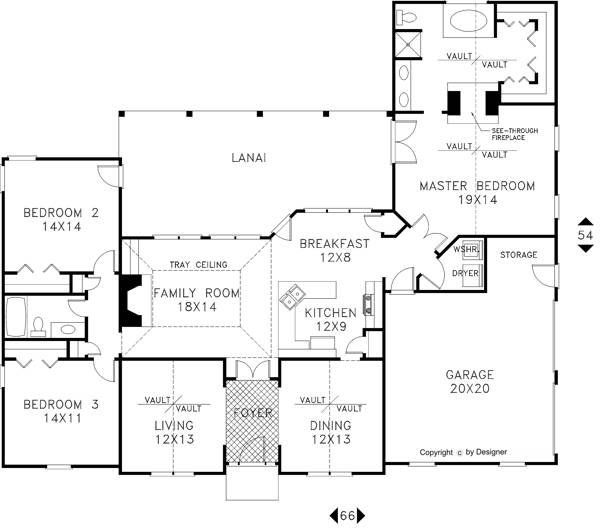

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This attractive 2,020 sq.ft. Mediterranean ranch design, with 3 bedrooms and 2 baths, is loaded with luxurious features. Vaulted ceilings are featured in the formal living and dining areas as well as the master bedroom. The 18'x14' family room has a fireplace, an entertainment center, and a trey ceiling. A see-through fireplace is one of the highlights of the master bedroom which has access to a large lanai. (The lanai is also accessible from bedroom #2.) Featuring a vaulted ceiling, the master bath has both a garden tub and a shower. Closet space abounds in the spacious triple closet. The two remaining bedrooms are isolated from the master suite and share a hall bath. Numerous windows throughout the breakfast and family rooms make these rooms bright and airy.




FEATURES & DETAILS

Exterior features
No Porch
Foundation Options
Slab
Garage Location
Front
Garage Options
Attached
Side-entry
2,020 Ft
2
Total Heated
3
Bedrooms
2
Bathrooms
2
Garage
1
Stories
66' 0"
Width
54' 0"
Depth
20' 0"
Height
9' 0"
Main Floor Ceiling
2x4
Framing
Stick
Roof Framing
6/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space


Plan Package Options

 Select Plan Package
$845
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$845
$1,295
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,295
$1,345
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,345
$1,395
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,395
$1,795
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,795
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
