Search Plans


Sq Ft
1,991 FT²

Beds
3

Baths
2.5

Stories
2

Garage
3

Depth
49'

Width
55'
From
$1,395.00
© copyright by designer
View All 1 Images | Photographs may reflect modified home
Sq Ft
1,991 FT²
From
$1,395.00
Beds
3
Baths
2.5
Stories
2
Garage
3
Depth
49'
Width
55'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This attractive 1-1/2 story design offers luxurious features in a popular mid-size package. The appealing brick facade is accented with multi-level stucco trim and copper roofing returns. Careful planning creates a dramatic openness giving this 1991 square foot home a much larger "feel".

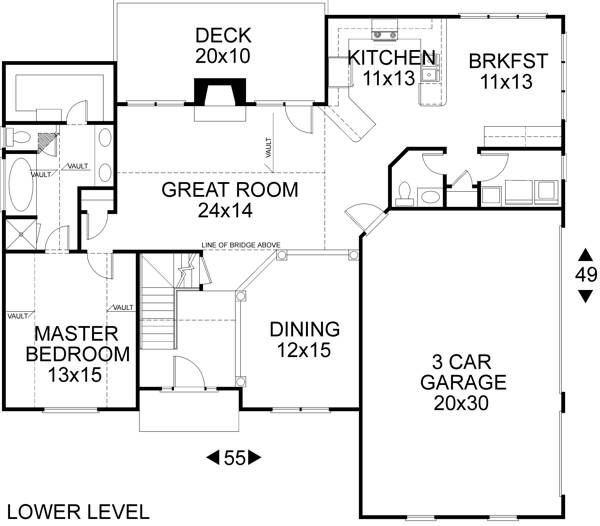

Just beyond the beveled glass front door with it's sidelights and transom lies an open foyer which vaults to 18'. To the right is an 12' x 15' dining room with a 4" raised floor surrounded by decorative columns. Just beyond the "bridge" is the 24' x 14' great room with a fireplace centered between two french door units with radius windows above. The master suite vaults to 12' and is brightened by a 6' "Palladian" window. It includes a full-featured vaulted bath and a 6' x 11' closet. The open 11'x13' kitchen provides 2 breakfast bars serving both the breakfast and great rooms. The large breakfast area allows space for a recipe desk and additional cabinetry. There's also a spacious laundry room with a laundry tub. Lower level rooms which are not vaulted have 9' ceilings.

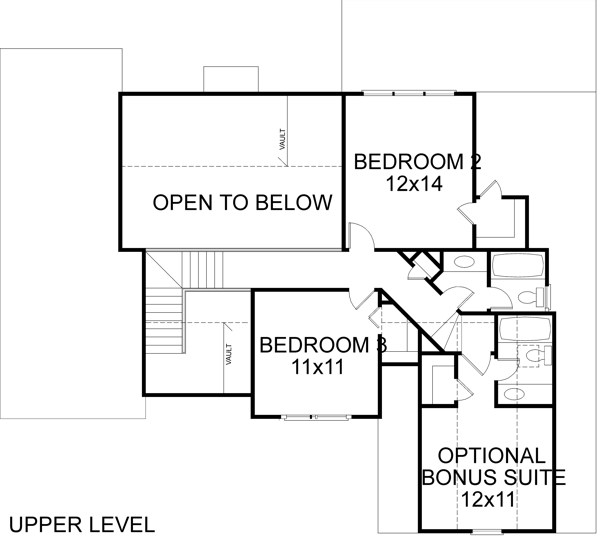

Upstairs, accessed by the "bridge", are the two secondary bedrooms, measuring 11' x 11' and 12' x 14'. A real plus is the optional bonus suite which enables expansion of this new design to 4 bedrooms and 3 1/2 baths. All upper level rooms have 8' ceilings. Foundation options include basement and crawl space.



FEATURES & DETAILS

Kitchen features
Nook / Breakfast Area
Bedroom features
Primary Bdrm Main Floor
Exterior features
Deck
No Porch
Foundation Options
Basement
Crawlspace
Slab
Additional features
Great Room
Laundry 1st Fl
Garage Location
Side
Garage Options
Attached
1,991 Ft
2
Total Heated
1,417 Ft
2
1st Floor
514 Ft
2
2nd Floor
3
Bedrooms
2.5
Bathrooms
3
Garage
2
Stories
55' 0"
Width
49' 0"
Depth
26' 0"
Height
9' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
12/12
Primary Roof Pitch
Single
Dwelling Number
2nd Floor
Bonus Access

Unheated Living Space
252 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$895
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$895
$1,395
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,395
$1,445
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,445
$1,495
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,495
$1,895
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,895
 Need To Reverse Plan? (Optional)
$295
Readable Reverse

Reverse house plans with readable text and dimensions

$295
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
