HOUSE PLANS
START AT $1,345
SQ FT
2,521
BEDS
4
BATHS
3
STORIES
1
CARS
2
WIDTH
76' 7"
DEPTH
57' 6"
© copyright by designer
Photographs may reflect modified homes.
SQ FT
2,521
BEDS
4
BATHS
3
STORIES
1
CARS
2

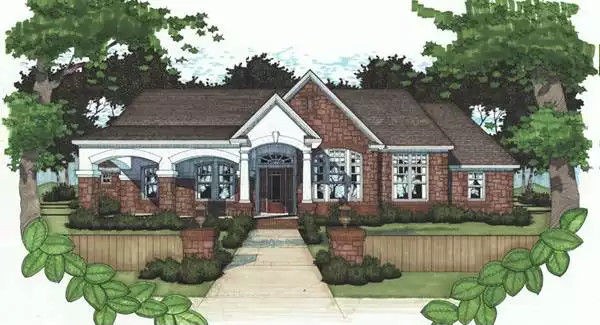

House Plan 5796: The Newcastle

This plan is elegant with numerous custom features. The Foyer features built-in niches for displaying art. A large Study can also become a fourth bedroom if needed. The island Kitchen looks out to the Family Room with built-in cabinets and fireplace. The delightful Nook has window seating and plenty of natural light for morning meals.  Read more >

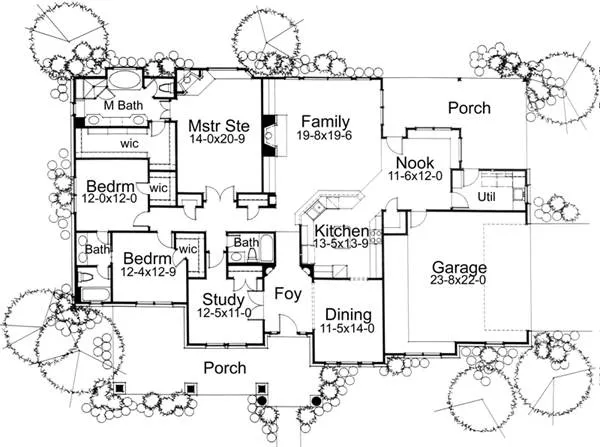

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more Digital plans emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more.

PDF Single Build
Most recommended package
$1,345

5 Printed Sets + PDF


Digital plan emailed to you in PDF format, allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$1,595

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,745

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,145

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,540
Standard or Readable Reverse?
Standard $0

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$195
Select Foundation Option
Optional Add-Ons
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Walk-in Pantry
Garage Location
Side
Garage Features
Attached
Details:
View All Plan Details
2,521
Total Sq. Ft.:
4
Bedrooms:
3
Bathrooms:
2
Garage:
1
Stories:
76' 7"
Width:
57' 6"
Depth:
19' 4"
Height:
9
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
6/12
Primary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
567 Ft
2
Garage:
650 Ft
2
Porch:
Exterior Styles
Contemporary
European
