House Plan 5442: The Newcastle

A convenient first floor master suite is a popular feature of this four bedroom country style home. The floor plan includes a utility/mudroom, separate living and family rooms and a country kitchen. The rear garage is side entry.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
3,145
Beds
4
Baths
3.1
Stories
2
Garages
2
Width
83' 6"
Depth
59' 0"
Modify this Home Plan
Estimate the Cost to Build
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF Plan Package
$1995
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

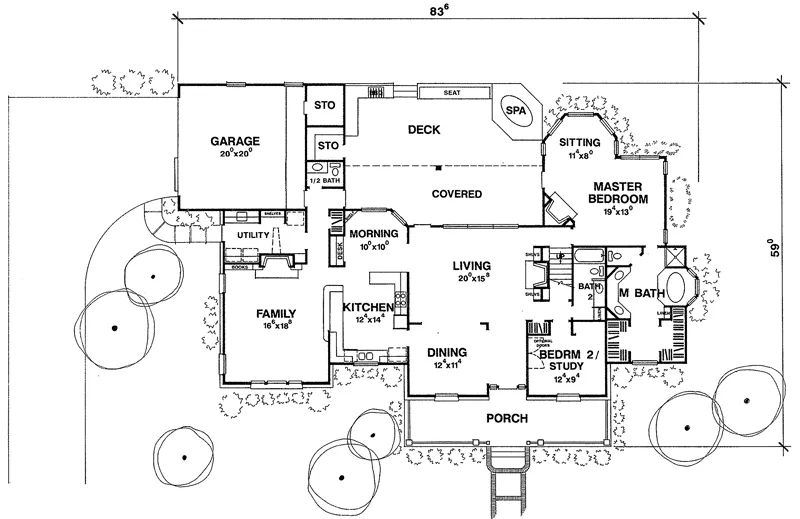

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
3,145
1st Floor SQ. FT.:
2,351
2nd Floor SQ. FT.:
794
Bedrooms:
4
Bathrooms:
3.1
Garage:
2
Stories:
2
Main Ceiling Height:
9'
Upper Ceiling Height:
8'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 10/12
Width:
83' 6"
Depth:
59' 0"
Height:
26' 11"
Exterior Styles:
Country
Southern
Traditional
Unheated Living Space:
Garage: 500
Porch: 268
Patio: 280
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Garage Features:
Attached
Garage Location:
Side
Lot Features:
