House Plan 8230: The Mayflower

The Kitchen has a uniquely shaped island with a drop-in down draft stove. Across the hall is a huge walk-in pantry with a freezer and lots of shelving. The Great Room has an optional Gas Fireplace and optional recessed 10 ceiling.  Read more >

House Plan Details

Sq. Ft.
2,452
Beds
4
Baths
2.1
Stories
1
Garages
2
Width
96' 0"
Depth
74' 0"
1st Floor
2,452
Garage
576
Porch
1222
Select Plan Package
Five Sets
$740
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

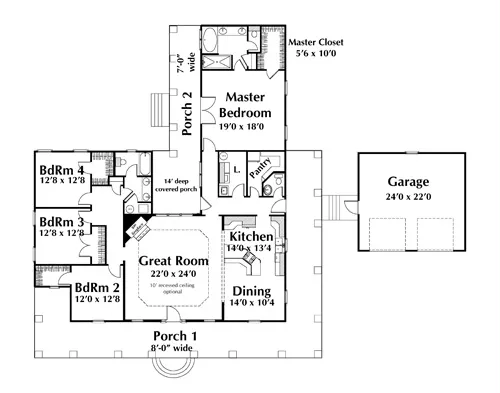

Floor Plan

Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 2.1
Garage: 2
Stories: 1
Exterior Style
Country
Southern
Traditional
Dimensions
Width: 96' 0"
Height: 27' 0"
Depth: 74' 0"
Heated Living Space
Total Sq. Ft: 2,452
1st Floor: 2,452
Unheated Living Space
Garage: 576
Porch: 1222
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
Double Vanity Sink
Master Bdrm Main Floor
Master Bdrm Main Floor
Separate Tub and Shower
Separate Tub and Shower
Split Bedrooms
Split Bedrooms
Walk-in Closet
Walk-in Closet
Kitchen Features
Butler's Pantry
Butler's Pantry
Country Kitchen
Country Kitchen
Kitchen Island
Kitchen Island
Nook / Breakfast Area
Nook / Breakfast Area
Peninsula / Eating Bar
Peninsula / Eating Bar
Walk-in Pantry
Walk-in Pantry
Additional Room Features
Fireplace
Fireplace
Great Room
Great Room
Laundry 1st Fl
Laundry 1st Fl
Open Floor Plan
Open Floor Plan
Garage Location
Rear
Garage Features
Attached
Attached
Lot Features
Suited for corner lot
Suited for corner lot
Suited for view lot
Suited for view lot
Roof Pitch
Primary: 6/12
