Sq Ft
3,497 FT²

Beds
4

Baths
3.5

Stories
2

Garage
2

Depth
64' 2"

Width
84'

From
$1,595.00

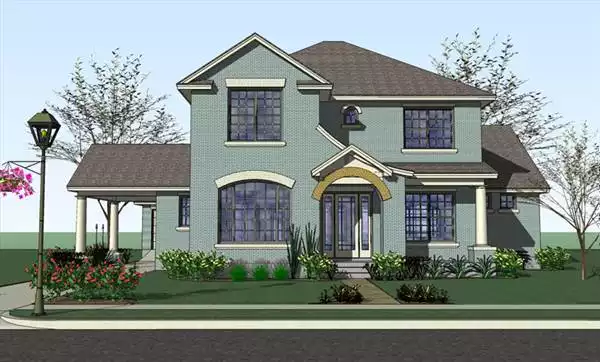

Rendering - Front

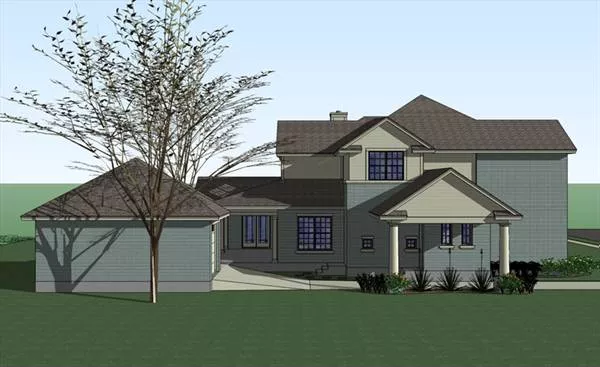

Left Elevation

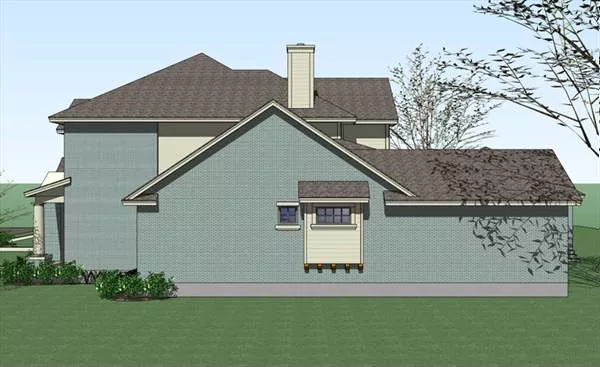

Right Elevation

Rear Elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

3,497 FT²

From

$1,595.00

Beds

Baths

3.5

Stories

Garage

Depth

64' 2"

Width

84'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

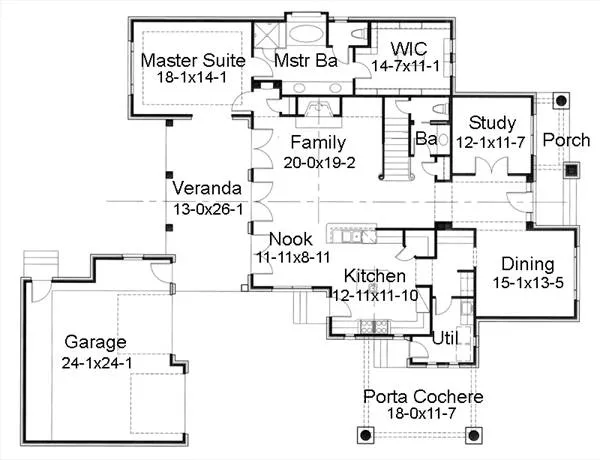

First Floor Plan

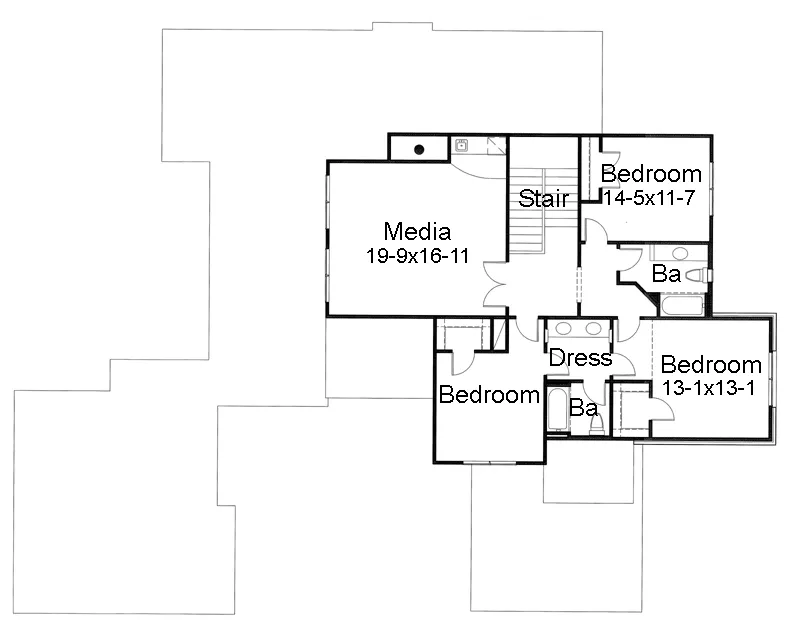

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

This plan, similar to the Goldsmith, has all the same features with a more traditional styling. The plan includes a separate garage with a porte cochere for additional parking. Inside, the island kitchen offers views into the spacious family room. French doors open to a side veranda. The luxurious master suite boasts direct access to the veranda. The second floor hosts three additional bedrooms as well as a media room.

FEATURES & DETAILS

Foundation Options

Crawlspace
Slab
Walkout Basement

Garage Location

Rear

Garage Options

Detached
Front-entry

3,497 Ft

Total Heated

2,210 Ft

1st Floor

1,287 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

84' 0"

Width

64' 2"

Depth

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

Single

Dwelling Number

Unheated Living Space

618 Ft

Garage

451 Ft

Porch

Exterior Styles

Country

Traditional

Collections

Luxury

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

$1,595

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,595

$1,745

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,745

$1,845

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,845

$2,395

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,395

$2,790

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$2,790

Need To Reverse Plan? (Optional)

$195

Readable Reverse

Reverse house plans with readable text and dimensions

$195

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
