HOUSE PLANS
START AT $1,995
SQ FT
3,543
BEDS
4
BATHS
3.5
STORIES
2
CARS
3
WIDTH
80' 11"
DEPTH
58' 2"
© copyright by designer
Photographs may reflect modified homes.
SQ FT
3,543
BEDS
4
BATHS
3.5
STORIES
2
CARS
3

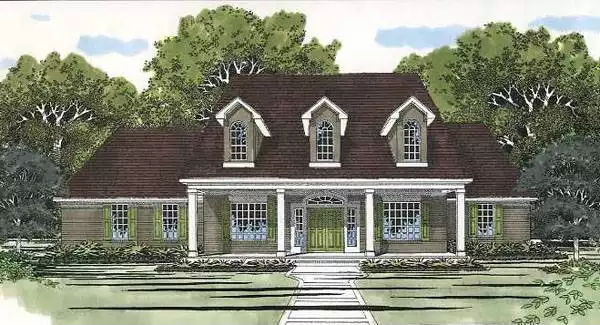

House Plan 5454: The Mansfield

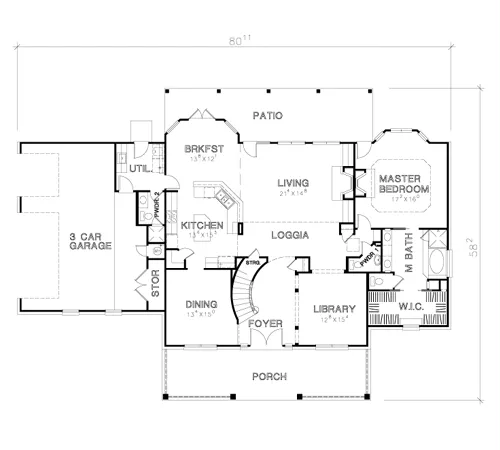

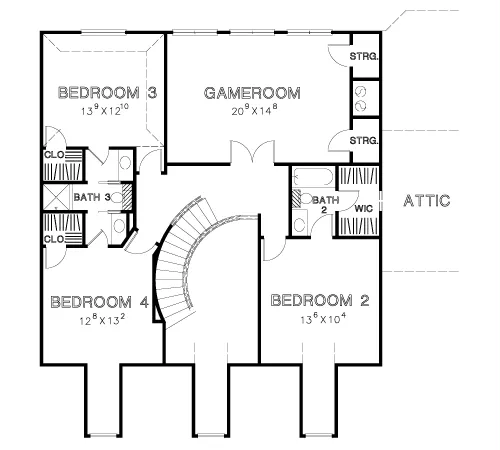

Columned porches front and rear add to the country charm of this four bedroom home. The master suite is on the first floor and the other bedrooms and a gameroom are upstairs. A library, formal dining area and a utility/mudroom are first floor features. The three car garage is side entry.

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,995

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
States N/A: TX,NM,LA
2D electronic editable computer files
$3,095
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$400
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Garage Location
Side
Garage Features
Attached

Hide Plan Features
Details:
View All Plan Details
3,543 Ft
2
Total Heated:
2,172 Ft
2
1st Floor:
1,371 Ft
2
2nd Floor:
4
Bedrooms:
3.5
Bathrooms:
3
Garage:
2
Stories:
80' 11"
Width:
58' 2"
Depth:
30' 4"
Height:
9
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
10/12
Primary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
723 Ft
2
Garage:
371 Ft
2
Porch:
336 Ft
2
Patio:
Exterior Styles
Country
Traditional

Hide Plan Details
