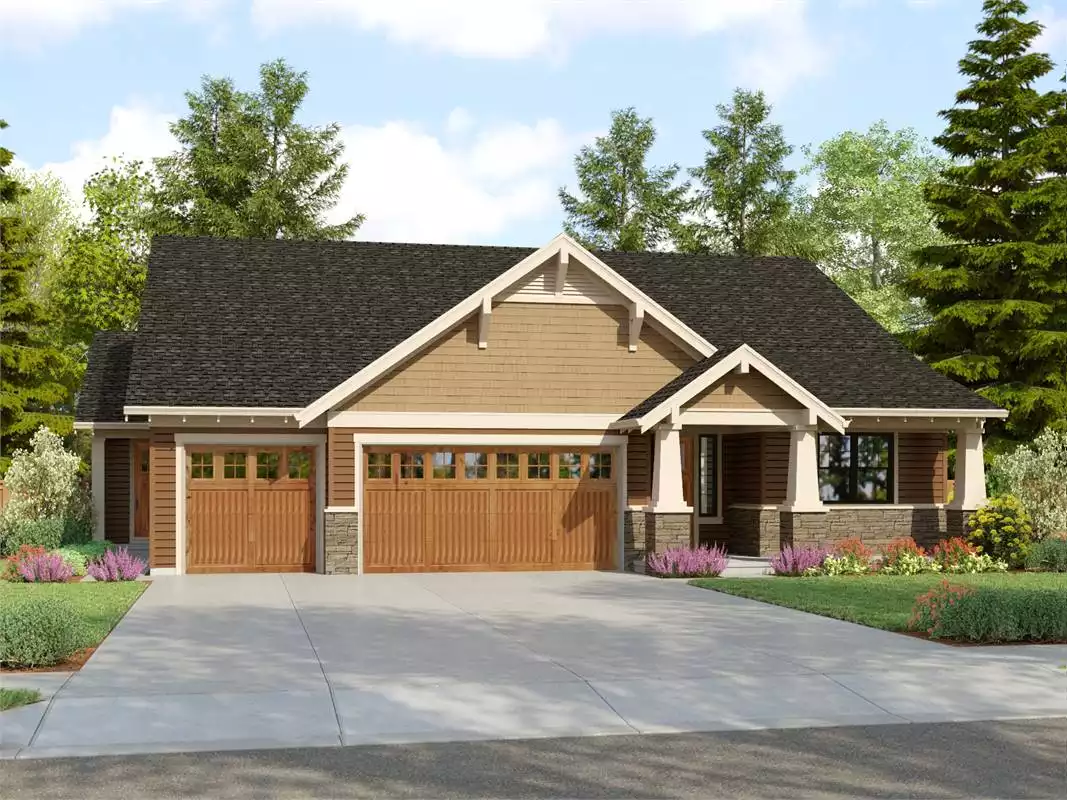

Multi-Generational Craftsman Style Ranch House, Plan 6587


Sq Ft
2,601 FT²

Beds
4

Baths
3

Stories
1

Garage
3

Depth
70'

Width
63'
From
$1,763.00
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
2,601 FT²
From
$1,763.00
Beds
4
Baths
3
Stories
1
Garage
3
Depth
70'
Width
63'

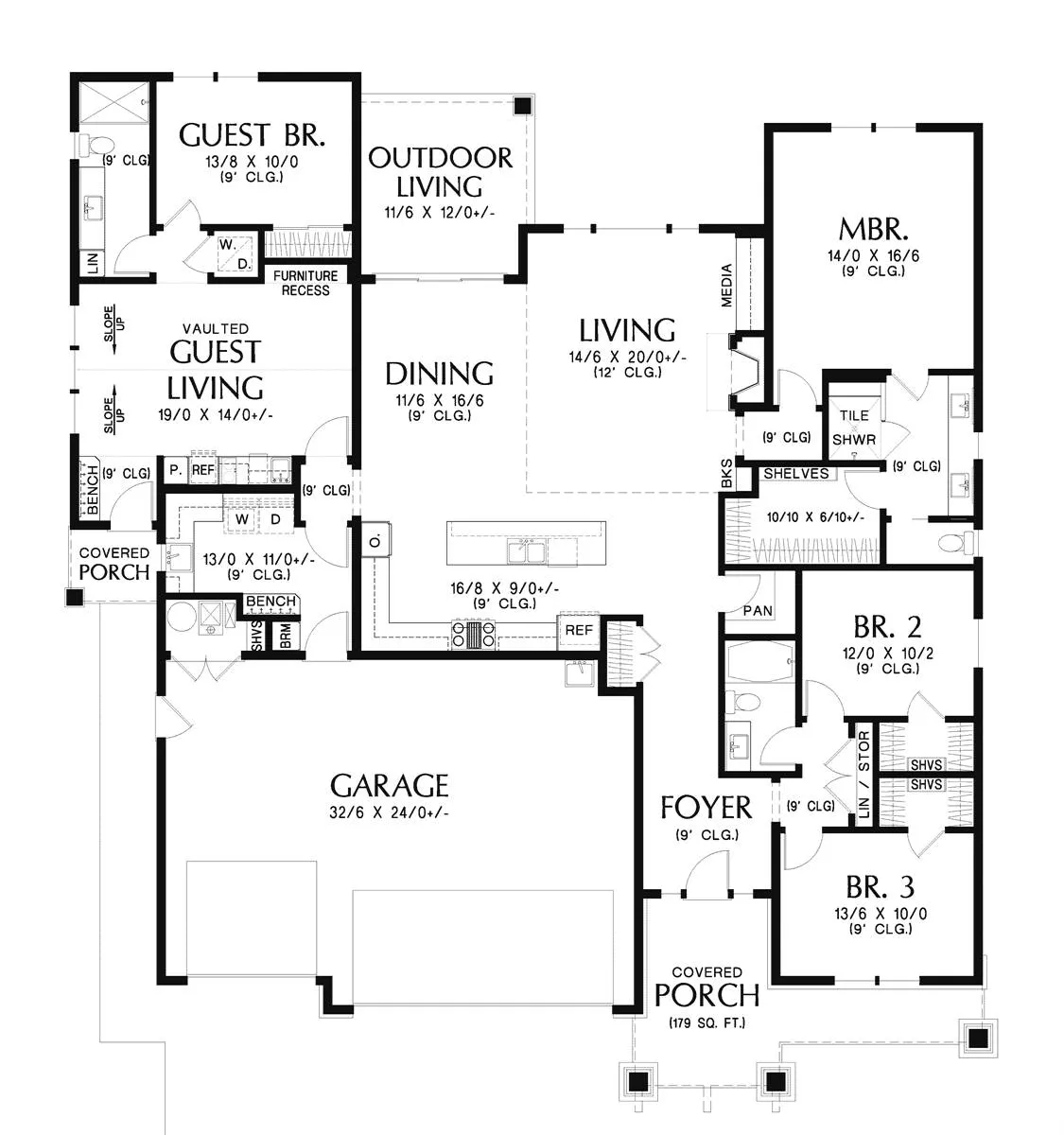

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

If you have been looking for a plan that can accommodate an older relative needing privacy but closeness along with raising children in the home, this affordable 1 story Craftsman house plan is designed just for your unique needs.

Entering the home, the two secondary bedrooms of 4 are at the front and share a tucked away bathroom. The shared spaces of the home have a 12’ ceiling in the living area making the space feel even larger. The cook of the home will love the ease of the 3 point kitchen and easily accessed pantry while being apart of the conversations. The master bedroom claims the back right of the home with a large walk-in closet and tile shower with a bench and dual sinks.

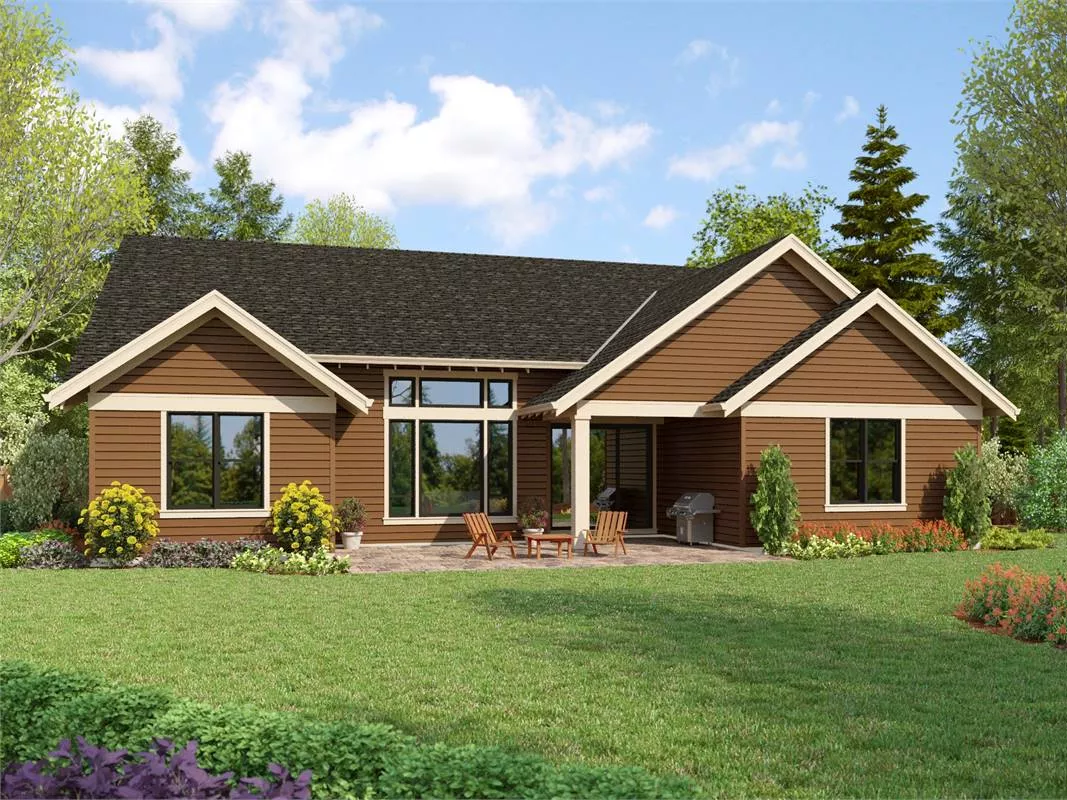

The back of the home is open to a covered patio, accessed by sliding doors off the casual dining space. The HUB of the family entrance has the laundry area and a place for coats and shoes. It also conveniently allows access to the “private wing” for the suite in the back left of the home. The suite has its own living space, accented with arched living space (and its own private entry/exit) as well as a small kitchenette. The ensuite bathroom continues a large walk-in shower, as well.


FEATURES & DETAILS

Kitchen features
Kitchen Island
L-Shaped
Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Outdoor Living Space
Additional features
Dining Room
Fireplace
Foyer
Great Room
In-law Suite
Laundry 1st Fl
Mud Room
Open Floor Plan
Garage Location
Front
Garage Options
Attached
Front-entry
3,384 Ft
2
Total Structure
2,601 Ft
2
Total Heated
4
Bedrooms
3
Bathrooms
3
Garage
1
Stories
63' 0"
Width
70' 0"
Depth
24' 9"
Height
9' 0"
Main Floor Ceiling
12' 0"
Living/Great Room Ceiling
2x6
Framing
Truss
Roof Framing
6/12
Primary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
783 Ft
2
Garage


Plan Package Options

 Select Plan Package
$1,763
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,763
$1,963
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,963
$2,013
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,013
$3,526
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,526
 Need To Reverse Plan? (Optional)
$225
Readable Reverse

Reverse house plans with readable text and dimensions

$225
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
