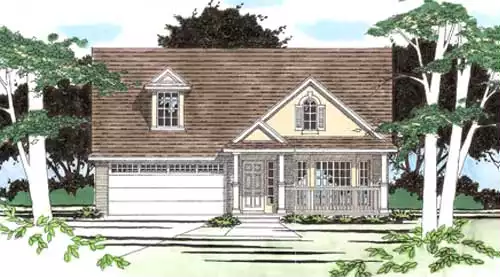

See all 1 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 4619: The Lockhart

Designed for a narrow lot, this two story country style home has a first floor master suite and two bedrooms upstairs. The efficient open plan makes good use of the available floor space.
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
1,544
Beds
3
Baths
2.1
Stories
2
Garages
2
Width
38' 6"
Depth
47' 2"
Modify this Home Plan
Estimate the Cost to Build
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF Plan Package
$995
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

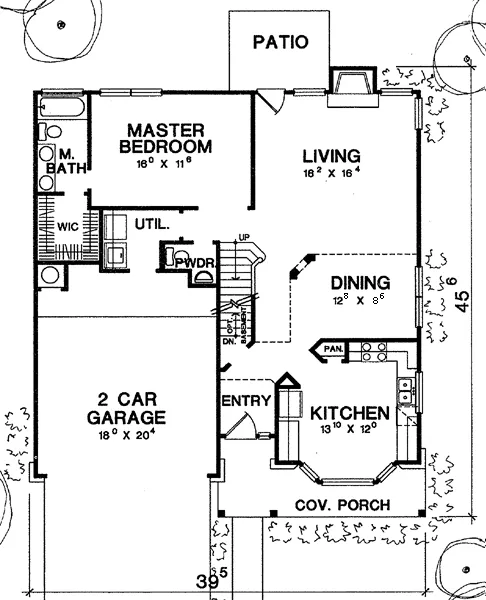

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,544
1st Floor SQ. FT.:
1,099
2nd Floor SQ. FT.:
445
Bedrooms:
3
Bathrooms:
2.1
Garage:
2
Stories:
2
Main Ceiling Height:
'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 10/12
Secondary: 6/12
Width:
38' 6"
Depth:
47' 2"
Height:
22' 0"
Exterior Styles:
Southern
Traditional
Unheated Living Space:
HOME FEATURES
Bedroom Features:
Master Bdrm Main Floor
Split Bedrooms
Walk-in Closet
Kitchen Features:
Additonal Features:
Great Room
Laundry 1st Fl
Garage Features:
Attached
Front-entry
Garage Location:
Front
Lot Features:
Suited for narrow lot
