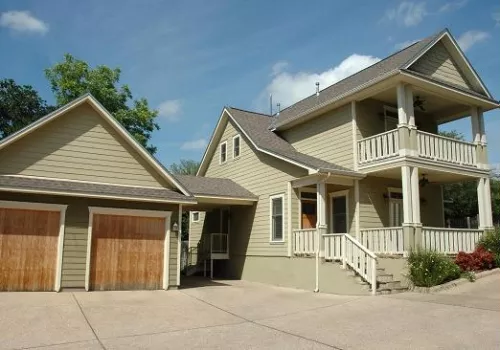

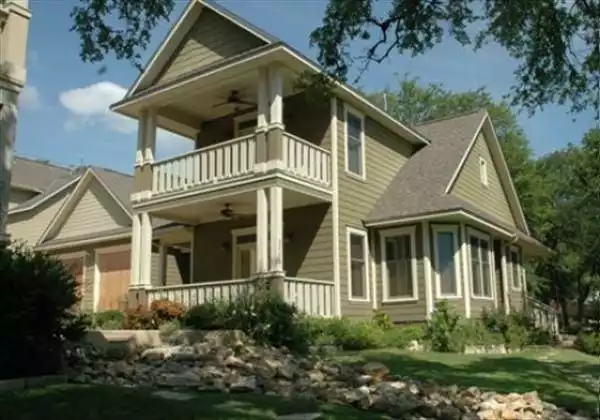

See all 2 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 5383: The Lafayette

This beautifully detailed classic Southern home was   Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
1,565
Beds
3
Baths
3.0
Stories
2
Garages
0
Width
28' 0"
Depth
46' 0"
Modify this Home Plan
Estimate the Cost to Build
For assistance, email, live chat, or call us at 866-214-2242
10% Off ALL House Plans!
Select Plan Package
PDF Plan Package
$995
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

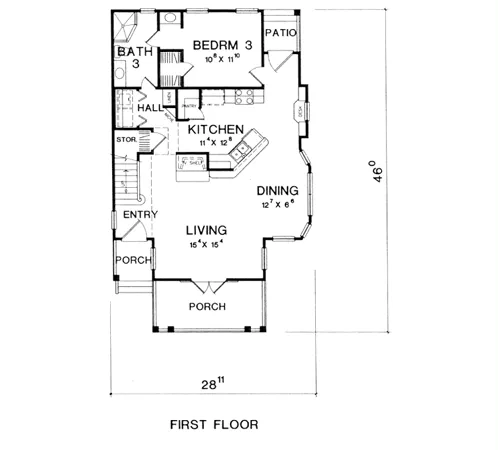

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,565
1st Floor SQ. FT.:
960

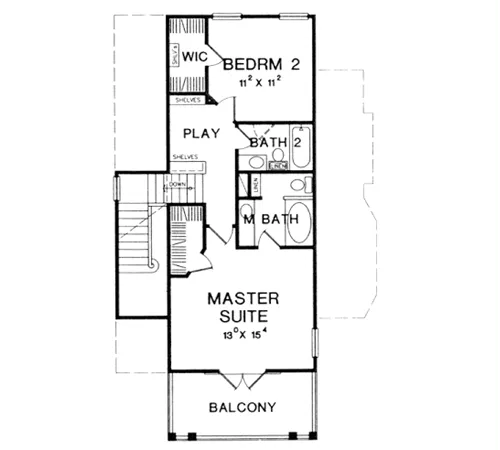

2nd Floor SQ. FT.:
605
Bedrooms:
3
Bathrooms:
3.0
Garage:
0
Stories:
2
Main Ceiling Height:
10'
Upper Ceiling Height:
9'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 10/12
Width:
28' 0"
Height:
29' 0"
Depth:
46' 0"
Exterior Styles:
Beach
Cottage
Traditional
Unheated Living Space:
Porch: 256
HOME FEATURES
Bedroom Features:
Master Bdrm Upstairs
Walk-in Closet
Kitchen Features:
Peninsula / Eating Bar
Walk-in Pantry
Additonal Features:
Dining Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Loft / Balcony
Garage Features:
Detached
Garage Location:
Lot Features:
Suited for narrow lot

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
