House Plan 5409: The Katy

Arched windows and a 12' high entry enhance this European style home. The floor plan features an open living/dining area and the kitchen has serving counter to the family room. Bedroom 4 is an optional study/home office at the entry.

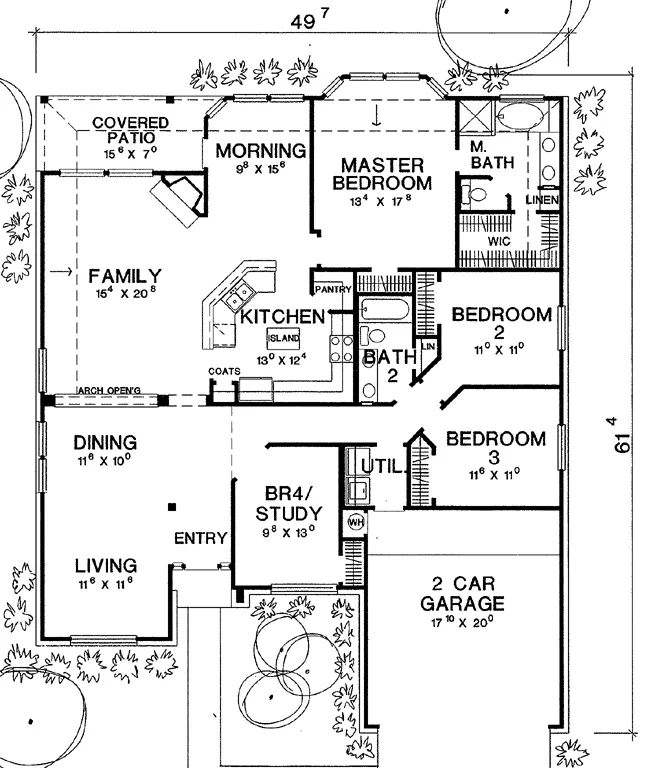

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,445

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
States N/A: TX,NM,LA
2D electronic editable computer files
$2,445
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$300
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
Features:
View All Plan Features
Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Master Bdrm Main Floor
Walk-in Closet
Additional features
Family Room
Great Room
Laundry 1st Fl
Garage Location
Front
Garage Features
Attached
Front-entry

Hide Plan Features
Details:
View All Plan Details
2,045 Ft
2
Total Heated:
4
Bedrooms:
2
Bathrooms:
2
Garage:
1
Stories:
49' 7"
Width:
61' 4"
Depth:
21' 0"
Height:
10
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
6/12
Primary Roof Pitch:
8/12
Secondary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
