House Plan 3473: The Jayville

This affordable house has finesse both inside and out. The home will fit on a narrow or small lot, thus saving on land costs. A country porch shelters visitors and provides shaded comfort for sunny days. A formal foyer leads to the large great room, with fireplace, or the kitchen dining areas.  Read more >

House Plan Details

Sq. Ft.
1,642
Beds
3
Baths
2.0
Stories
2
Garages
1
Width
30' 6"
Depth
40' 0"
1st Floor
724
2nd Floor
918
Garage
302
Porch
115
Select Plan Package
Four Sets
$645
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $645

PLAN IMAGES

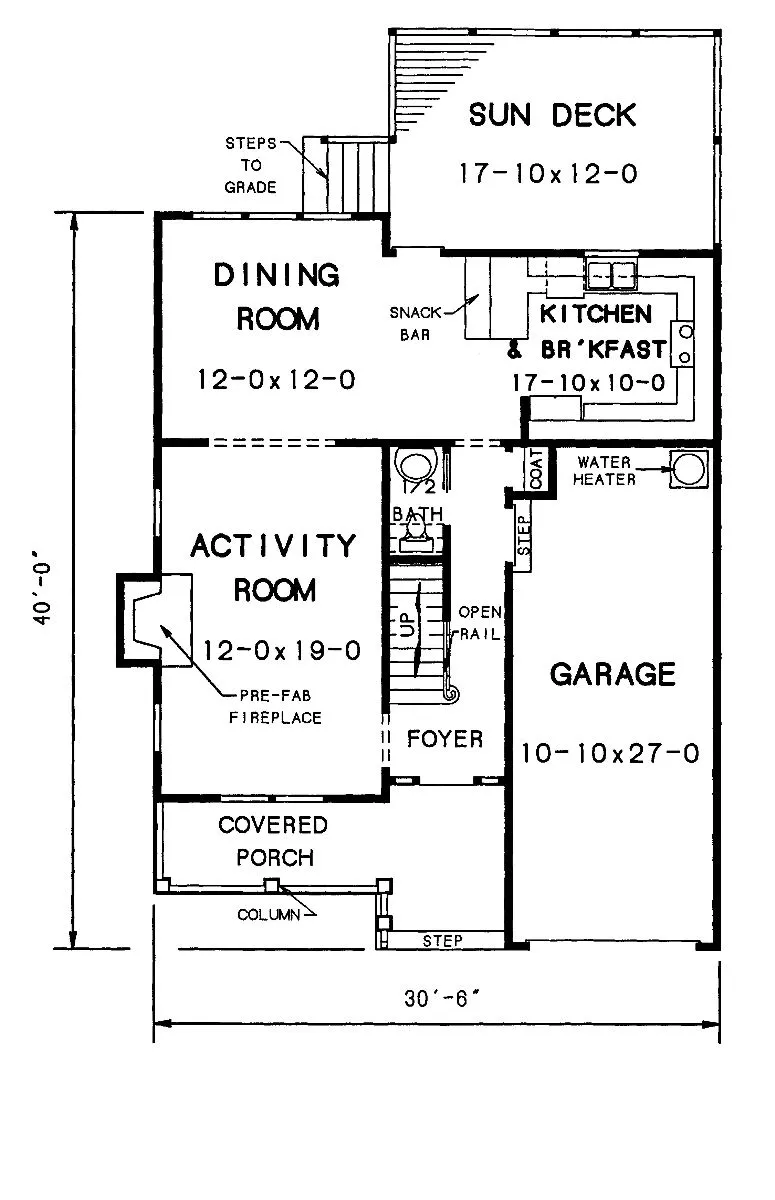

1st floor plan

1st floor plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 1
Stories: 2
Exterior Style
Bungalow
Cottage
Country
Dimensions
Width: 30' 6"
Height: 31' 6"
Depth: 40' 0"
Heated Living Space
Total Sq. Ft: 1,642
1st Floor: 724
2nd Floor: 918
Unheated Living Space
Garage: 302
Porch: 115
Deck: 214
Ceiling
Upper Ceiling Ft: 8
Main Ceiling Ft: 8
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
Master Bdrm Upstairs
Walk-in Closet
Kitchen Features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Additional Room Features
Dining Room
Fireplace
Foyer
Great Room
Laundry 2nd Fl
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for narrow lot
Roof Pitch
Primary: 10/12
