House Plan 5423: The Jacksonville

Roof dormers, arched windows and a columned front proch add a touch of elegance to this traditional home. The great room ceiling vaults to 11'-6" in the center. Popular features include country kitchen with an island, a formal dining room and a utility/mudroom.  Read more >

House Plan Details

Sq. Ft.
2,532
Beds
4
Baths
3.0
Stories
1
Garages
2
Width
81' 0"
Depth
53' 10"
Select Plan Package
PDF Plan Package
$1445
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

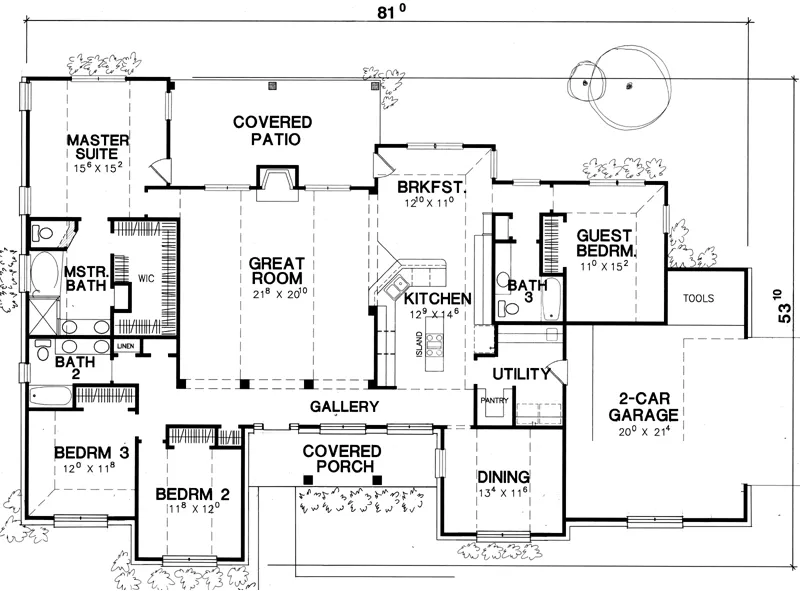

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,532
1st Floor SQ. FT.:
2,532
Bedrooms:
4
Bathrooms:
3.0
Garage:
2
Stories:
1
Main Ceiling Height:
10'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 10/12
Width:
81' 0"
Depth:
53' 10"
Height:
27' 0"
Exterior Styles:
Cape Cod
Cottage
Southern
Traditional
Unheated Living Space:
Garage: 498
Porch: 142
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Garage Features:
Attached
Garage Location:
Side
Lot Features:
