House Plan 1802: The Isle

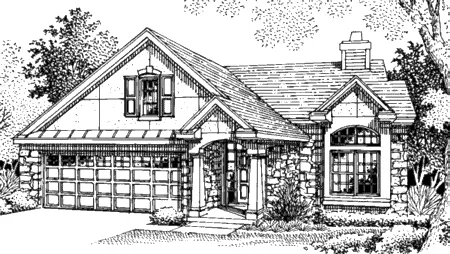

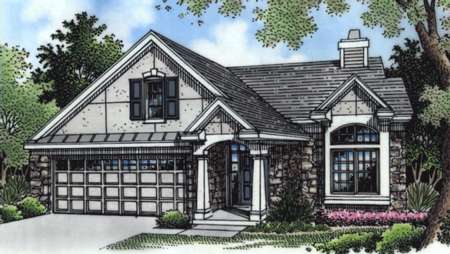

An exciting European exterior flair is created by the use of stucco, stone, columns, arches over the entry and transom windows. The excitement continues on the interior with the vaulted living room, complete with bright arched transom, open stairway leading up to the informal media loft, and a see-through fireplace.  Read more >

House Plan Details

Sq. Ft.
1,700
Beds
3
Baths
2.1
Stories
2
Garages
2
Width
40' 0"
Depth
43' 0"
1st Floor
1,055

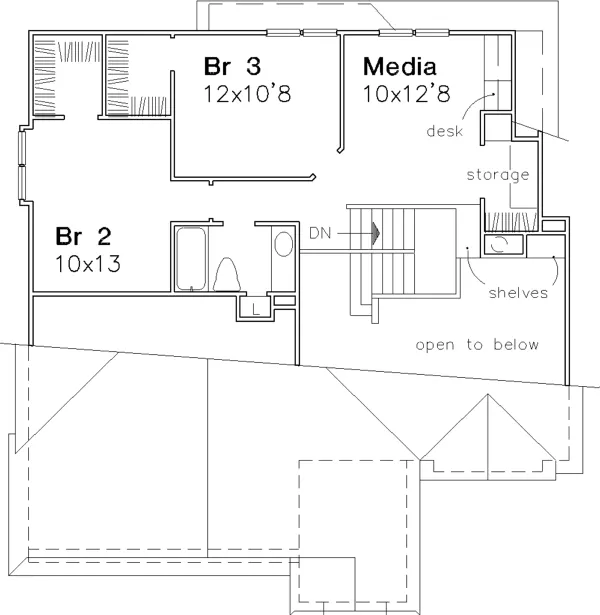

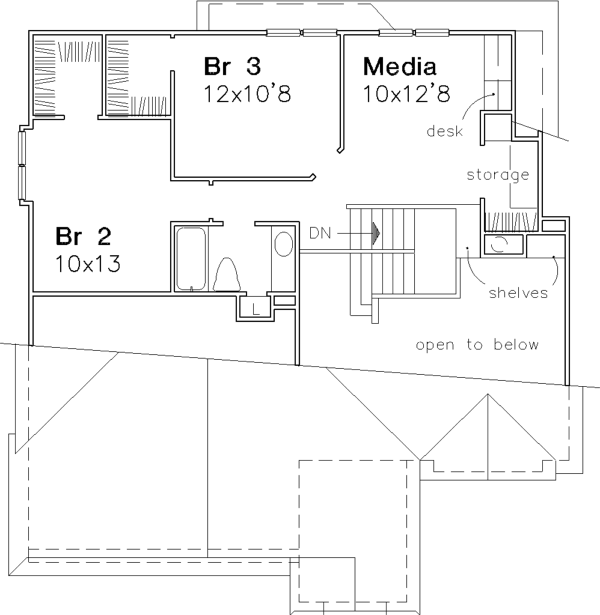

2nd Floor
645
Select Plan Package
Five Sets
$604
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $544

PLAN IMAGES

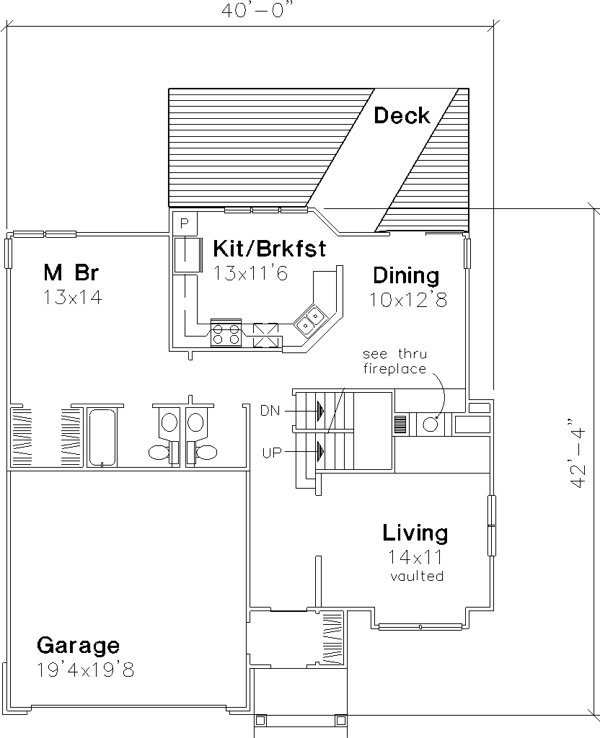

Main Floor Plan

Main Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 2
Exterior Style
Bungalow
Cottage
Traditional
Dimensions
Width: 40' 0"
Height: 26' 0"
Depth: 43' 0"
Heated Living Space
Total Sq. Ft: 1,700
1st Floor: 1,055
2nd Floor: 645
Unheated Living Space
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft:
Framing Information
Framing: 2x4
Roof Framing: Combination
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Roof Pitch

Our Guarantee

  • Only the highest quality plans
  • International Residential Code compliant
  • Complete structural details on all plans
  • Best plan and modification price guaranteed
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • House plans delivered in minutes
  • 100% satisfaction guarantee
