Sq Ft
1,820 FT²
Bed
3
Bath
2
Stories
1
Garage
2
Depth
74' 3"
Width
50'
On Sale
$1,100.75
$1,100.75
© copyright by designer
View All 4 Images | Photographs may reflect modified home
Sq Ft
1,820 FT²
From
$1,100.75
Bed
3
Bath
2
Stories
1
Garage
2
Depth
74' 3"
Width
50'

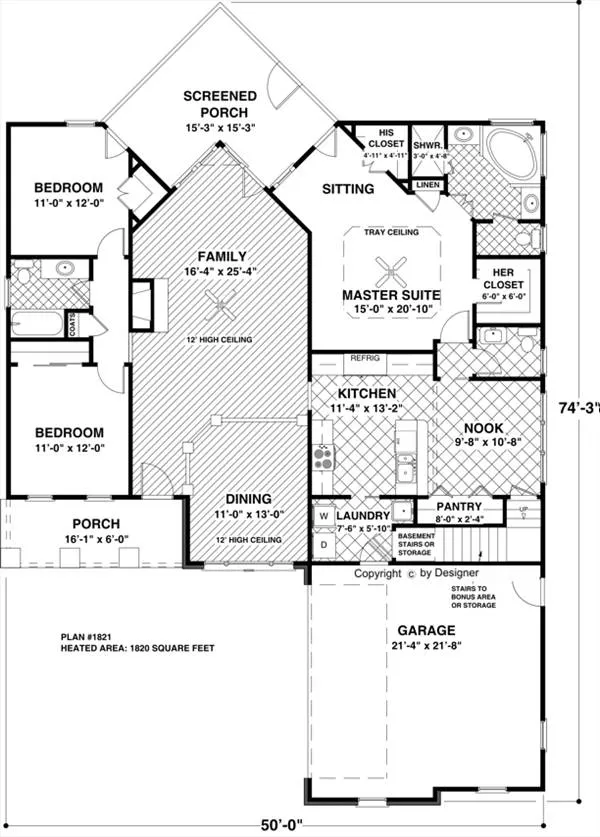

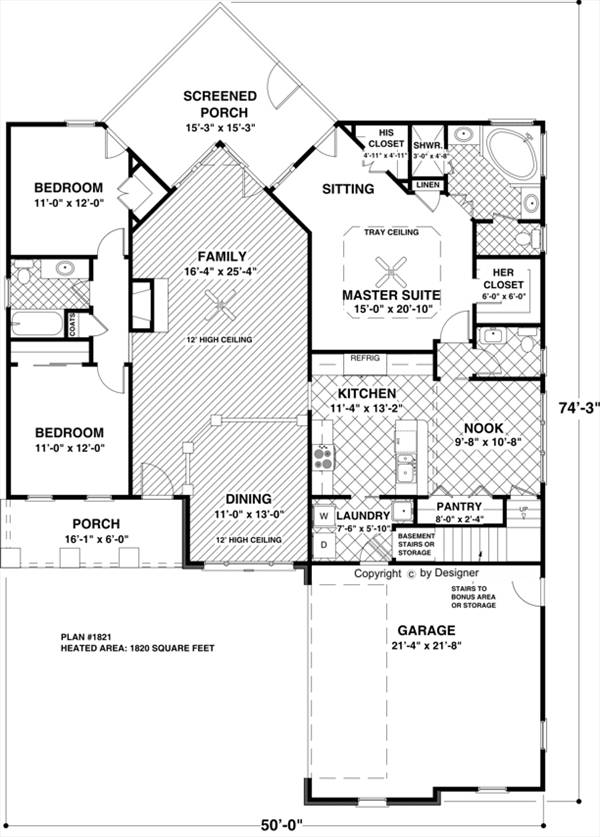

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

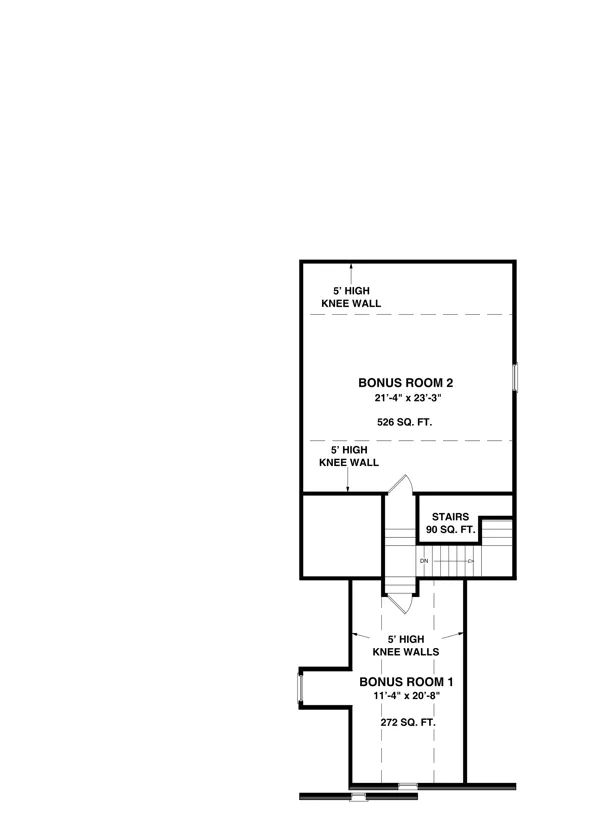

This irresistible 1,820 sq. ft. home features craftsman styling reminiscent of the early 20th century. A covered porch invites you to enter the spacious dining and family room areas. Raised ceilings, an arch-top window unit and a fireplace add drama to this space. Accessible from the family room, a screened porch offers the perfect spot for sheltered socializing. The roomy kitchen features a breakfast nook, pantry and access to the laundry room through a pocket door. Located near the kitchen, the master suite sets a dreamy tone with its tray ceiling and sitting area which accesses the screened porch. Separate his and hers closets provide ample hanging space for clothing. The spacious master bath has a separate shower and corner garden tub. A powder room for guests is just outside the master suite. On the opposite side of this floor plan, two generous bedrooms share a bathroom. The real surprise of this design is located through a door off the breakfast room. Steps lead up to two bonus rooms offering limitless possibilities for home office space, a craft room, guest room, playroom, etc. Together they offer nearly 800 sq. ft. of additional living space. This plan is one in a series of Jim Wells signature designs, the defining element being the foremost walls of the screened porch which form a W.


FEATURES & DETAILS

Exterior features
Front Porch
Foundation Options
Slab
Lot Options
Suited for narrow lot
Garage Location
Front
Garage Options
Attached
Front-entry
1,820 Ft
2
Total Heated
3
Bedrooms
2
Bathrooms
2
Garage
1
Stories
50' 0"
Width
74' 3"
Depth
22' 6"
Height
9' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
7/12
Primary Roof Pitch
Single
Dwelling Number
1st Floor
Bonus Access

Unheated Living Space
888 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$845
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$845
$1,295
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,295
$1,345
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,345
$1,395
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,395
$1,795
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,795
 Need To Reverse Plan? (Optional)
$295
Readable Reverse

Reverse house plans with readable text and dimensions

$295
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
