HOUSE PLANS
START AT $945
SQ FT
4,490
BEDS
3
BATHS
4.5
STORIES
2
CARS
3
WIDTH
87'
DEPTH
76'
© copyright by designer
Photographs may reflect modified homes.   View all 16 photos
SQ FT
4,490
BEDS
3
BATHS
4.5
STORIES
2
CARS
3



House Plan 7783: The Gull Lake

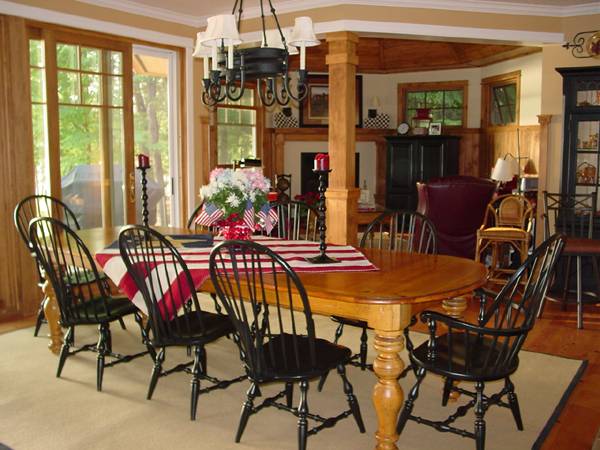

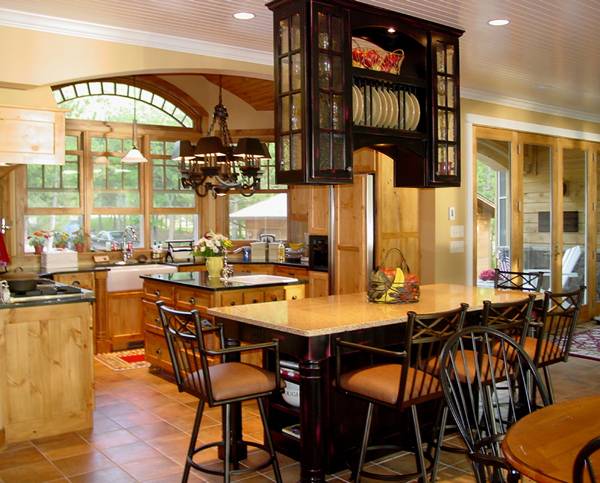

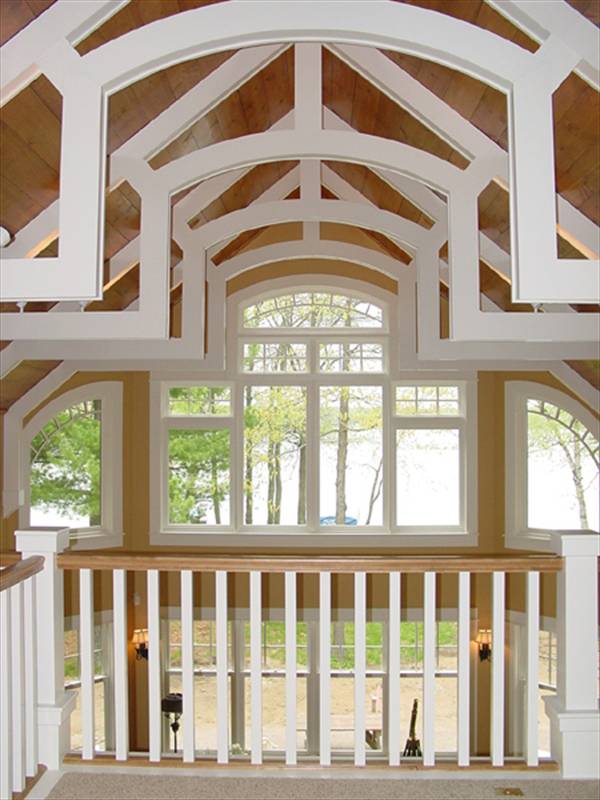

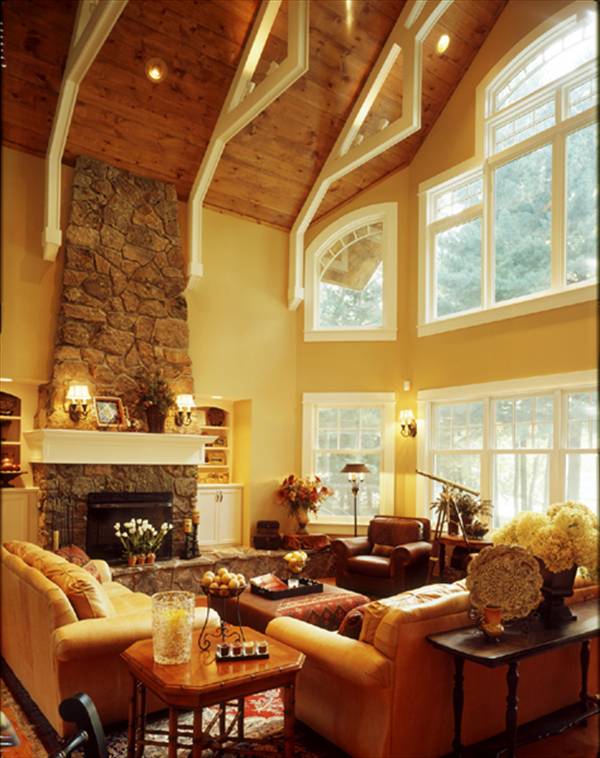

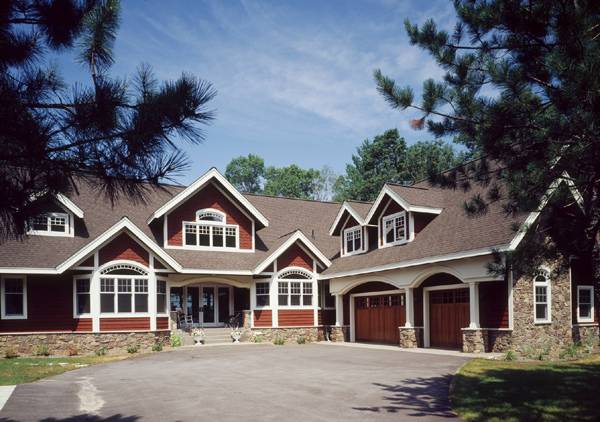

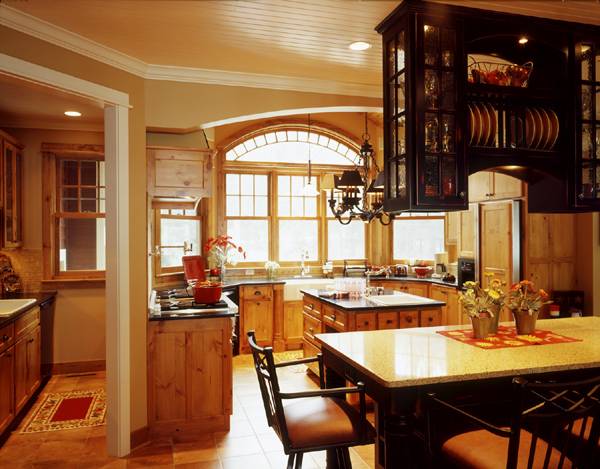

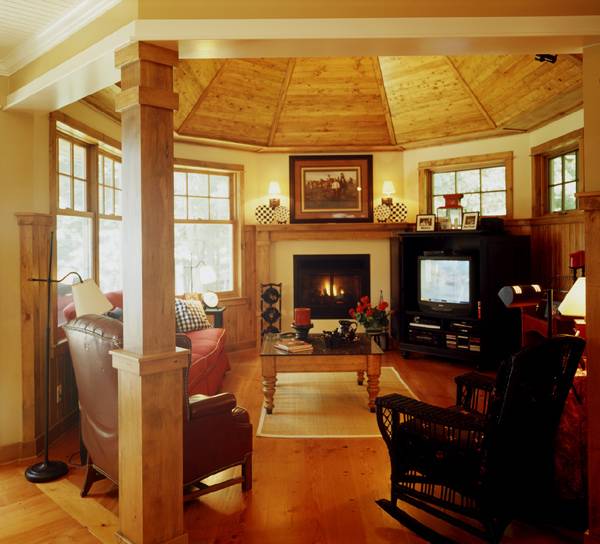

This beautiful cottage style house plan has great curb appeal and an amazing layout. Soaring to 22 feet, the ceilings in the great room are flogged with decorative beams, recessed lighting and a massive stone fireplace. The brilliantly designed kitchen area, snack lounge and dining area combine functionality and beauty. Separated by decorative columns, the octagonal shaped hearth room creates a feeling of warmth and relaxation.  Read more >
Click to Zoom In on Floor Plan

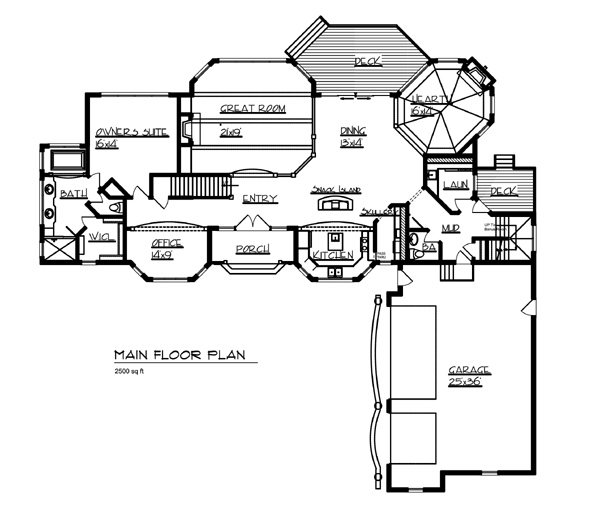

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$850

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$945

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets
Eight printed sets of house plans
$1,033

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,181

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$1,760
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Peninsula / Eating Bar
Bedroom features
Master Bdrm Main Floor
Lot features
Suited for corner lot
Suited for sloping lot
Suited for view lot
Additional features
Great Room

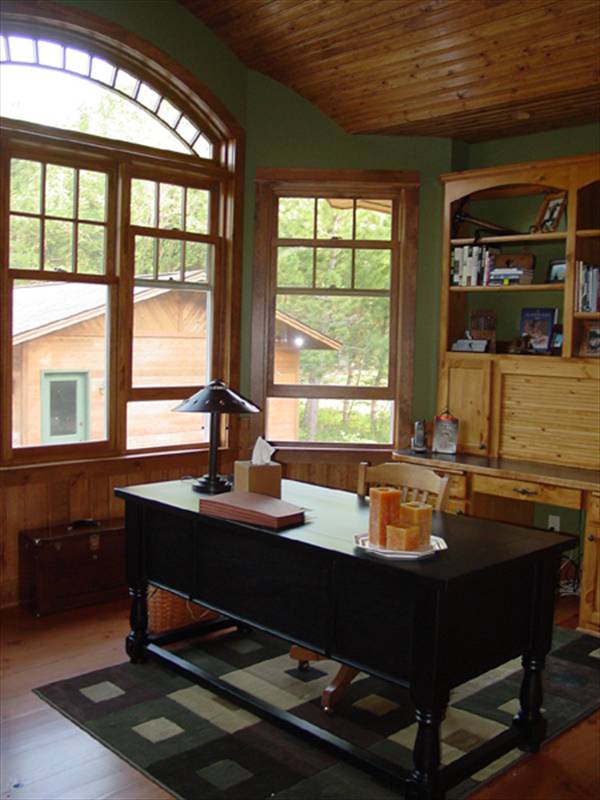

Home Office
Laundry 1st Fl
Loft / Balcony
Mud Room
Garage Location
Side
Garage Features
Attached

Hide Plan Features
Details:
View All Plan Details
4,490 Ft
2
Total Heated:
2,500 Ft
2
1st Floor:
1,155 Ft
2
2nd Floor:
3
Bedrooms:
4.5
Bathrooms:
3
Garage:
2
Stories:
87' 0"
Width:
76' 0"
Depth:
30' 0"
Height:
10
Main Floor Ceiling:
8
Upper Floor Ceiling:
2x6
Framing:
Combination
Roof Framing:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unheated Living Space
835 Ft
2
Bonus Room:
Exterior Styles
Beach
Cottage
Craftsman
Traditional
Collections
Architects Choice
Empty Nester
Kitchens
Mountain
Open Floor Plan
Outdoor Living
Vacation

Hide Plan Details
