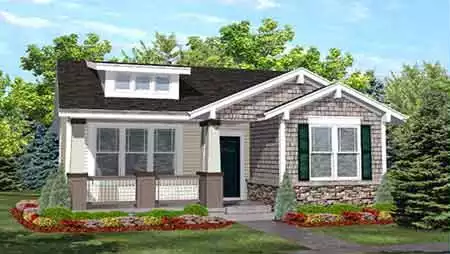

House Plan 1662: The Grafton

This charming bungalow offers plenty of curb appeal. A porch in front and a patio in back expand the home's living space to the outdoors. Inside, the large living room is topped by a vaulted ceiling with a row of clerestory windows above.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
936
Beds
2
Baths
1.0
Stories
1
Garages
0
Width
32' 0"
Depth
35' 0"
1st Floor
936
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Five Sets
$560
Select Foundation Options
$0
Basement
Subtotal: $504
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

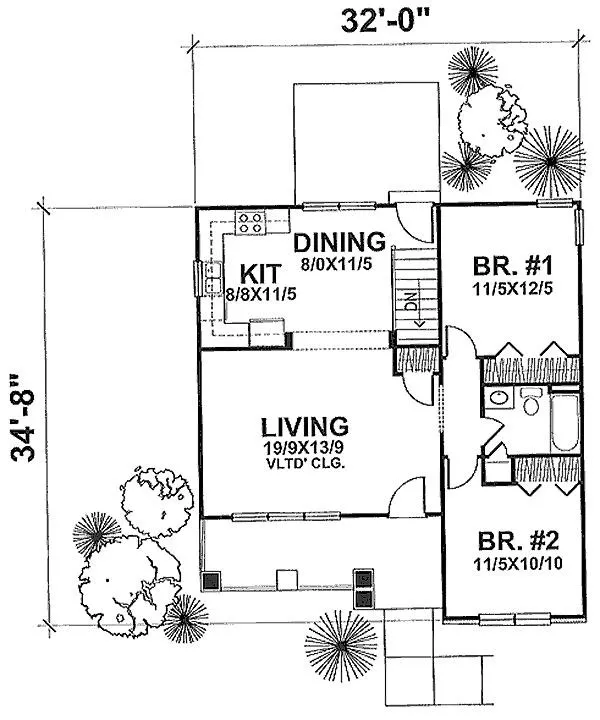

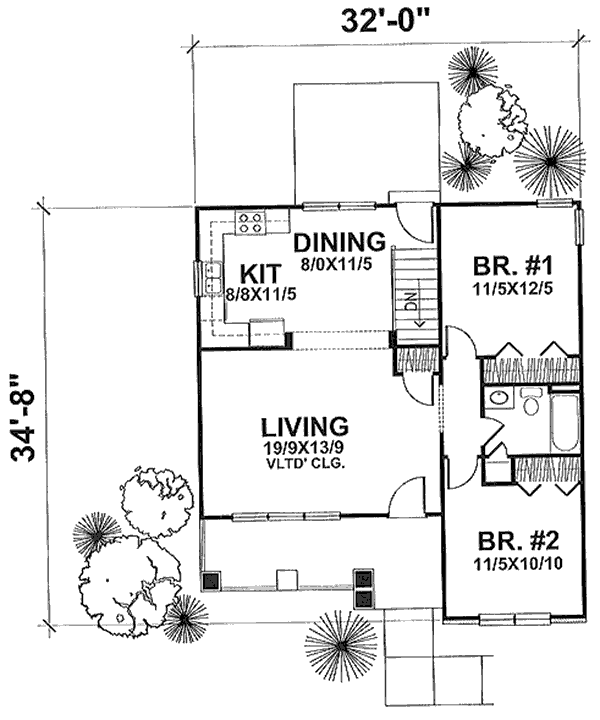

Main Floor Plan

Main Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 2
Bathrooms: 1.0
Garage: 0
Stories: 1
Exterior Style
Bungalow
Cottage
Craftsman
Dimensions
Width: 32' 0"
Height: 18' 0"
Depth: 35' 0"
Heated Living Space
Total Sq. Ft: 936
1st Floor: 936
Unheated Living Space
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft:
Framing Information
Framing: 2x4
Roof Framing: Combination
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
None
Garage Features
Lot Features
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Roof Pitch
