HOUSE PLANS
START AT $1,095
SQ FT
1,882
BEDS
3
BATHS
2.5
STORIES
2
CARS
2
WIDTH
65' 9"
DEPTH
51' 3"
© copyright by designer
Photographs may reflect modified homes.
SQ FT
1,882
BEDS
3
BATHS
2.5
STORIES
2
CARS
2



House Plan 5790: The Fredericksburg

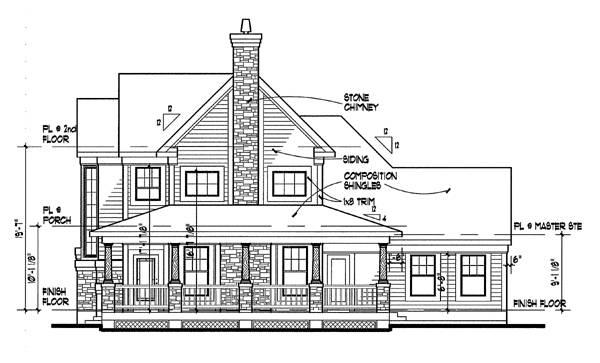

This plan is loaded with wonderful features. The turret style stair showcases the front elevation with an expanse of windows and stone. The glorious two-story Family Room is flooded with natural light from it's collection of windows. An enchanting upstairs bedroom with it's dormer windows is perfect for a little girl. The restful Master Suite and Bath provides a vaulted ceiling, huge walk-in closet, and an oversized garden tub.  Read more >

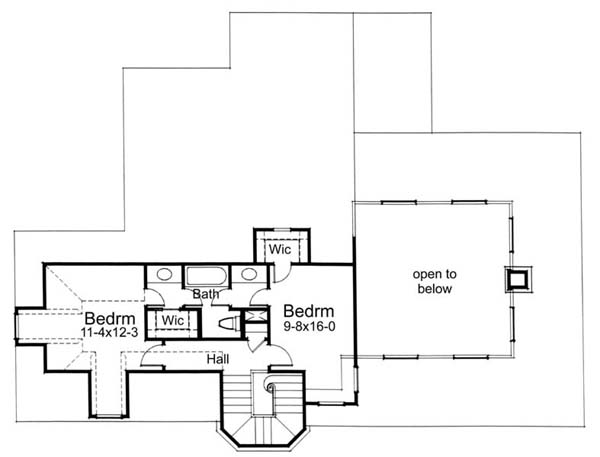

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,095

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,245

5 Printed Sets + PDF


Digital plan emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$1,345

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$1,895

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,290
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$195
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Walk-in Pantry
Garage Location
Front
Garage Features
Attached
Front-entry

Hide Plan Features
Details:
View All Plan Details
1,882 Ft
2
Total Heated:
1,333 Ft
2
1st Floor:
549 Ft
2
2nd Floor:
3
Bedrooms:
2.5
Bathrooms:
2
Garage:
2
Stories:
65' 9"
Width:
51' 3"
Depth:
29' 7"
Height:
9
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
12/12
Primary Roof Pitch:
4:12
Porch Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
427 Ft
2
Garage:
557 Ft
2
Porch:
249 Ft
2
Patio:
Exterior Styles
Country
Farm House
Traditional

Hide Plan Details
Reviews for Plan 5790
10/5/2012
Alan of Manhattan, KS
Customer Review:
The staff was courteous and very helpful. Our builder didn't have any trouble building our home from the floor plans.
