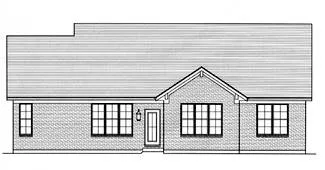

Rear Elevation
Rear Elevation

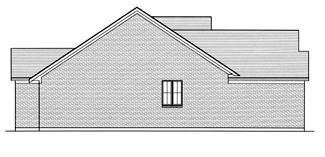

Left Elevation

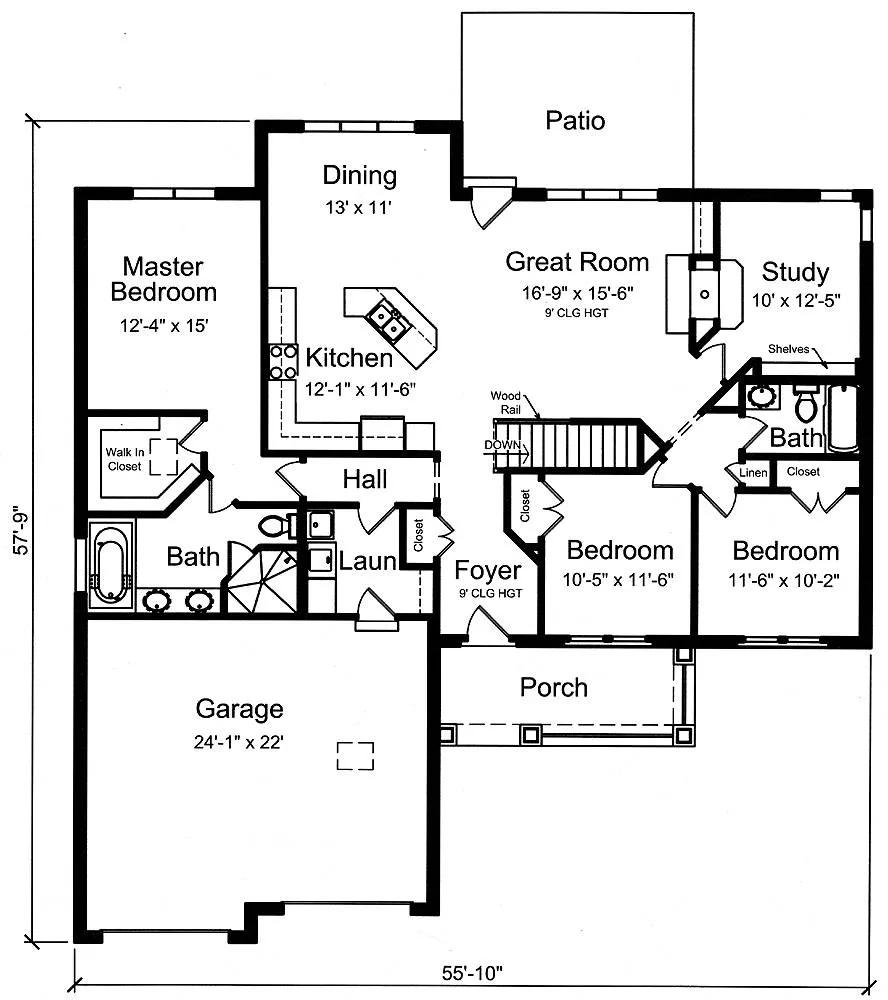

First Floor Plan

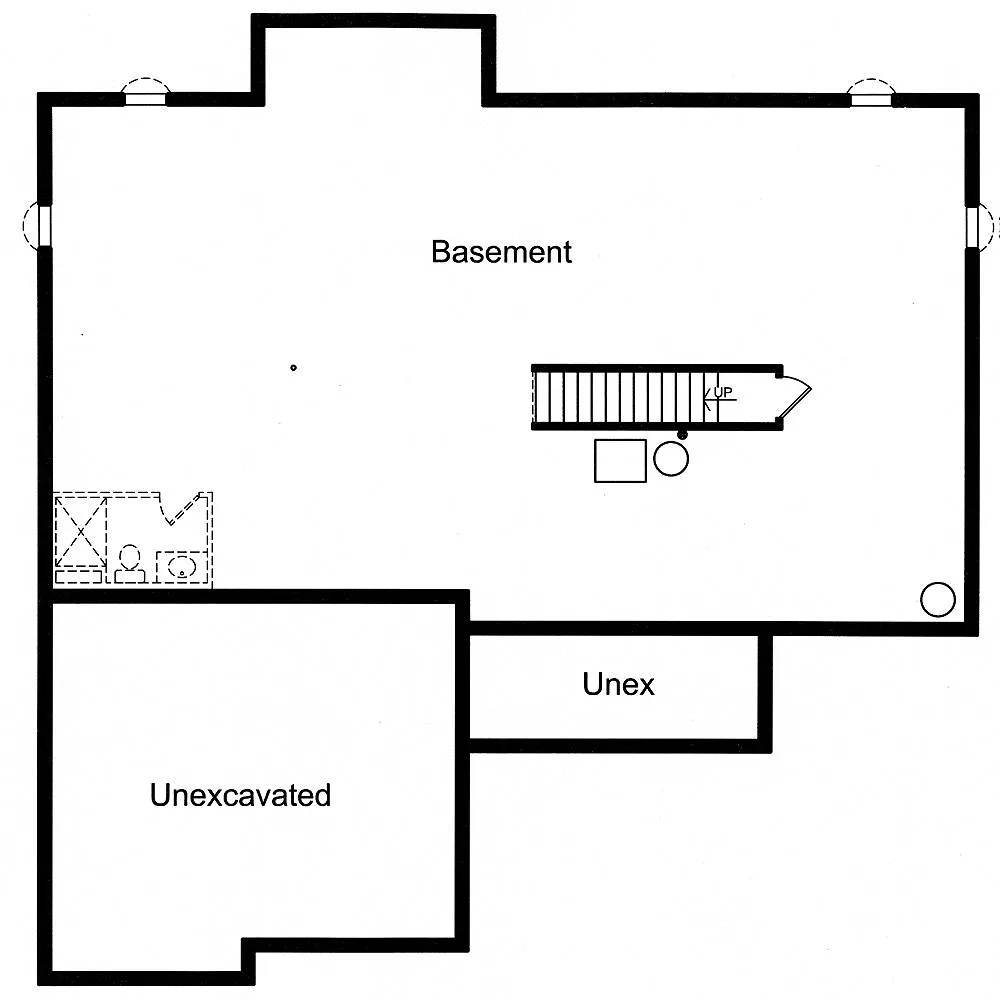

Foundation Plan
The Filmore Split Bedroom Cottage Style House Plan 9173
The enticing nature of this ranch style plan only begins with the exterior. An open and inviting layout provides 1,818 square feet of living space, as well as 3 bedrooms and 2 bathrooms. Nine foot ceilings span the entire house, allowing it to feel large yet private.
Read more >
House Plan Details
Sq. Ft.
1,818
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
55' 10"
Depth
57' 9"
PLAN IMAGES
First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,818
1st Floor SQ. FT.:
1,818
Bedrooms:
3
Bathrooms:
2.0
Garage:
2
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Truss
Roof Pitch:
Primary: 8/12
Secondary: 8:12
Secondary: 8:12
Width:
55' 10"
Depth:
57' 9"
Height:
24' 4"
Exterior Styles:
Cottage
Craftsman
Ranch
Traditional
Craftsman
Ranch
Traditional
Unheated Living Space:
Garage: 505
Porch: 130
Porch: 130
HOME FEATURES
Bedroom Features:
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features:
Additional Features:
Fireplace
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Foyer
Great Room
Laundry 1st Fl
Open Floor Plan
Garage Features:
Attached
Front-entry
Front-entry
Garage Location:
Front
Lot Features:
