Sq Ft
1,488 FT²
Bed
3
Bath
2
Stories
1
Garage
0
Depth
42'
Width
42'
On Sale
$1,100.75
$1,295.00
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
1,488 FT²
From
$1,100.75
Bed
3
Bath
2
Stories
1
Garage
0
Depth
42'
Width
42'

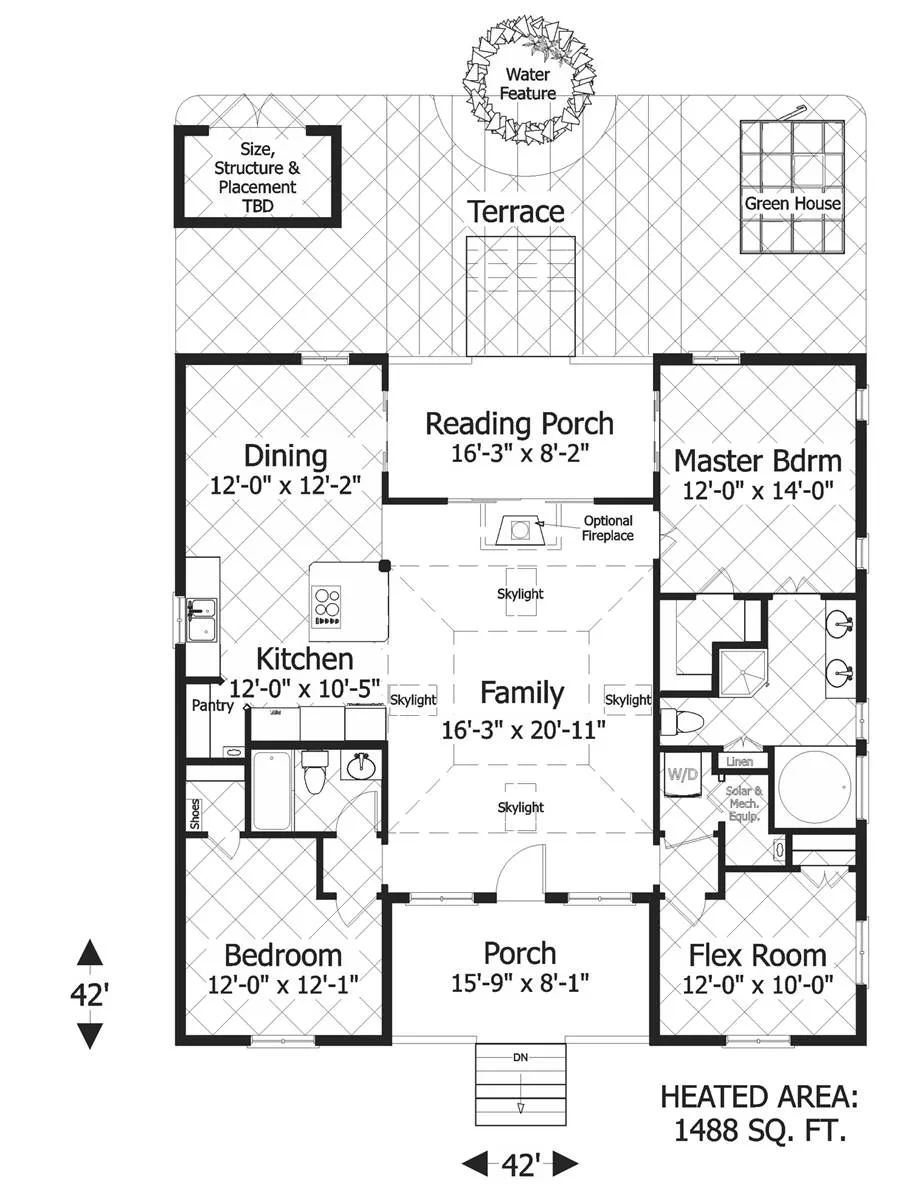

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This 1488 sq. ft. home is one of our Lifetime Series:

A Lifetime Home...
Why It's Extraordinary...
Why It's Green:

1) Thinking Outside the Box... This unique "Design in a Box" is a result of "Outside the Box" Thinking...Call it a Box; Call it Square, but with this design, Square is Cool...and Warm, and very energy efficient and environmentally friendly.
We call it "The Smart Box."

2) 6" SIP Exterior Walls are recommended in many designs, providing enhanced energy performance over
conventional framing.

3) A Multi-Purpose Storage Building...As a final component of the structure, the cost effective storage building may be built by adjusting its size to utilize as many of the remaining scrap materials as possible. This will also provide storage space for remaining scrap materials to be stored, for use in future projects or repairs. This would significantly reduce the trash and scraps added to our land fills.

4) Both Active and Passive Energy-Saving Technolgies are accomodated in these designs:
Active: The East Facing Roof provides significant partially concealed area for both photovoltaic and water heating panels. A water source heat pump, open or sealed, is recommended where feasible, minimizing the need for electric resistance, gas & oil heating. "Wind-Finders", an innovation hidden within the Cupola, will direct air flow throughout the home for selectable living space ventilation, attic ventilation, or wind turbine generators. Ductwork in conditioned Space reduces demands of climate control systems.
Passive: Increased Glass on South Side provides heat gain in winter daylight hours, stored in dark flooring of effected rooms for release in cooler evening hours. These windows are shaded by retractable awnings in hot summer seasons. Permeable tile field manages drainage within outdoor living area and provides easy access to field lines for sealed Water Source Heat Pump system. "Breathable" Roof underlayment system allows air to flow between the metal roof and decking to keep the attic cooler.

5) Energy Star Appliances are recommended throughout as well as Water Saving Fixtures.
6) "Primary Point-of-Use" (PPOU)Tankless Water Heaters reduce wasted water during warm-up and heat water only on demand.

7) Skylights provide additional natural light in the central Family Room.

8) GreenHouse...Plants absorb CO2, produce Oxygen, are a major part of our diet, add beauty to our environment...Gardening can be an enjoyable and rewarding endeavor.

9) Reading Area...Growing and expanding one's most valuable asset through reading is less time expending energy on electronic media and entertainment.

Final Comments from the Designer...While many recycled, environmentally friendly materials, products and technologies are shown and recommended, the Designer is also sensitive to one's own "Green Assets" and recommends a Cost/Benefit Analysis of those items before purchase and implementation. Further, careful consideration should be given to construction location, climate and locally available materials, resources and service providers.




FEATURES & DETAILS

Kitchen features
Walk-in Pantry
Bedroom features
Master Bdrm Main Floor
Separate Tub and Shower
Exterior features
Covered Front Porch
Covered Rear Porch
Foundation Options
Crawlspace
Slab
Additional features
Family Room
Fireplace
Vaulted Ceilings
1,488 Ft
2
Total Heated
3
Bedrooms
2
Bathrooms
0
Garage
1
Stories
42' 0"
Width
42' 0"
Depth
27' 9"
Height
9' 0"
Main Floor Ceiling
2x6
Framing
Truss
Roof Framing
6/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space


Plan Package Options

 Select Plan Package
$845
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$845
$1,295
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,295
$1,345
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,345
$1,395
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,395
$1,795
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,795
 Need To Reverse Plan? (Optional)
$295
Readable Reverse

Reverse house plans with readable text and dimensions

$295
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
