House Plan 5818: The Cimarron

This plan is a dream. The use of space is fantastic. The gourmet Kitchen is loaded with first class amenities. The Master Suite and Bath are resort like, enjoy a relaxing bath in the alcoved garden tub. The grand Dining room features views to the stunning Lanai.  Read more >

House Plan Details

Sq. Ft.
3,024
Beds
3
Baths
3.0
Stories
1
Garages
3
Width
103' 5"
Depth
73' 11"
1st Floor
3,024
Garage
1,001
Porch
59
Deck
714
Select Plan Package
Five Sets
$1020
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

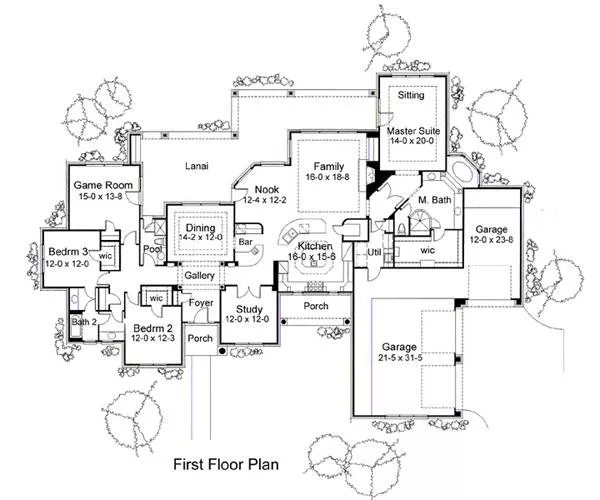

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 3.0
Garage: 3
Stories: 1
Exterior Style
Mediterranean
Traditional
Dimensions
Width: 103' 5"
Height: 26' 3"
Depth: 73' 11"
Heated Living Space
Total Sq. Ft: 3,024
1st Floor: 3,024
Unheated Living Space
Garage: 1,001
Porch: 59
Deck: 714
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 12
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Kitchen Features
Walk-in Pantry
Walk-in Pantry
Additional Room Features
Garage Location
Side
Garage Features
Attached
Attached
Lot Features
Roof Pitch
Primary: 6:12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer

Questions & Answers

Have questions about this plan?
Q.Where is the basement staircase placed?

A.The staircase is placed in the garage between the door to the utility and the 3rd garage bay.

Q.Where is the toilet for BR 2 and 3?

A.It is supposed to be right in front of the window, next to the tub.
