House Plan 7601: The Chesterfield

This home features a much desired split bedroom floorplan. A spacious master suite with large bath has private access to screened porch. The great room with vaulted ceiling opens up to large kitchen and breakfast area with walk-in pantry.  Read more >

House Plan Details

Sq. Ft.
2,098
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
70' 0"
Depth
50' 0"
Select Plan Package
PDF File
$1045
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $895

PLAN IMAGES

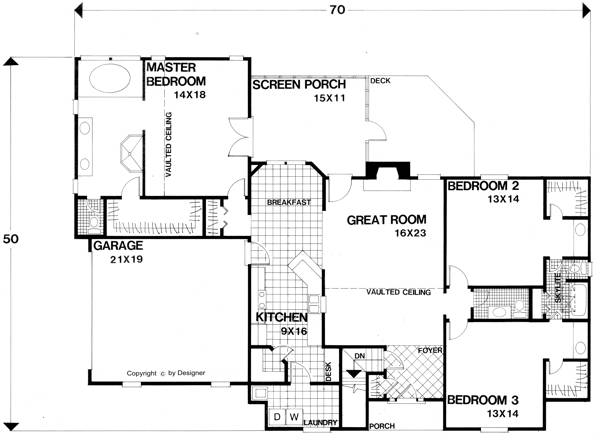

Floorplan

Floorplan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Country
Southern
Traditional
Dimensions
Width: 70' 0"
Height: 19' 0"
Depth: 50' 0"
Heated Living Space
Total Sq. Ft: 2,098
Unheated Living Space
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9
Framing Information
Framing: 2x4
Roof Framing: Truss
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
Side
Garage Features
Attached
Lot Features
Roof Pitch
Primary: 7/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer

Questions & Answers

Have questions about this plan?
