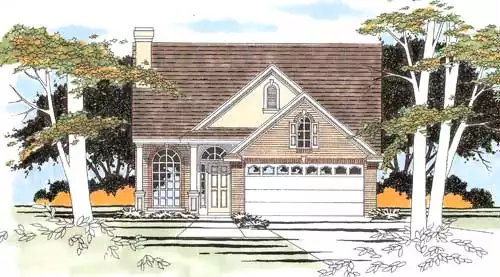

House Plan 4815: The Catalpa

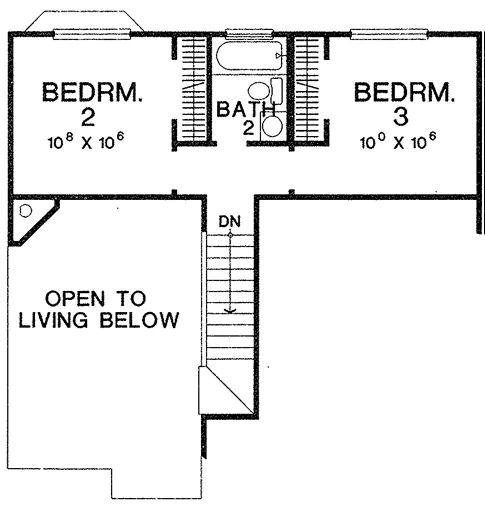

The floor plan of this traditional home is very efficient with the master suite on the first floor and two bedrooms upstairs. The open plan living/dining area has a fireplace and a vaulted ceiling in the living room portion of the space.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
1,262
Beds
3
Baths
2.1
Stories
2
Garages
2
Width
39' 0"
Depth
52' 0"
Modify this Home Plan
Estimate the Cost to Build
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
PDF Plan Package
$995
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,262
1st Floor SQ. FT.:
889
2nd Floor SQ. FT.:
373
Bedrooms:
3
Bathrooms:
2.1
Garage:
2
Stories:
2
Main Ceiling Height:
8'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 10/12
Width:
39' 0"
Depth:
52' 0"
Height:
19' 5"
Exterior Styles:
Southern
Traditional
Unheated Living Space:
Garage: 403
Porch: 58
Patio: 97
HOME FEATURES
Bedroom Features:
Master Bdrm Main Floor
Split Bedrooms
Walk-in Closet
Kitchen Features:
Additonal Features:
Great Room
Laundry 1st Fl
Garage Features:
Attached
Garage Location:
Front
Lot Features:
Suited for narrow lot

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
