HOUSE PLANS
START AT $895
SQ FT
1,761
BEDS
3
BATHS
2.5
STORIES
2
CARS
2
WIDTH
61' 6"
DEPTH
47' 8"

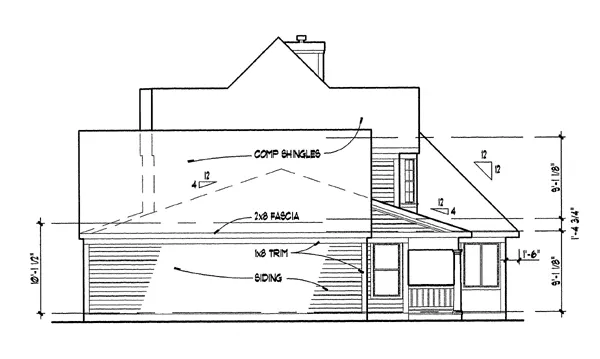

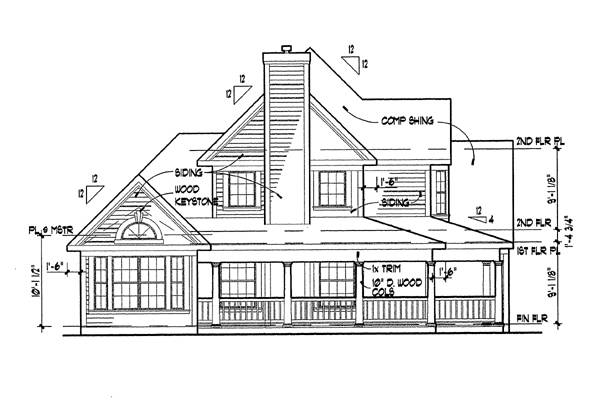

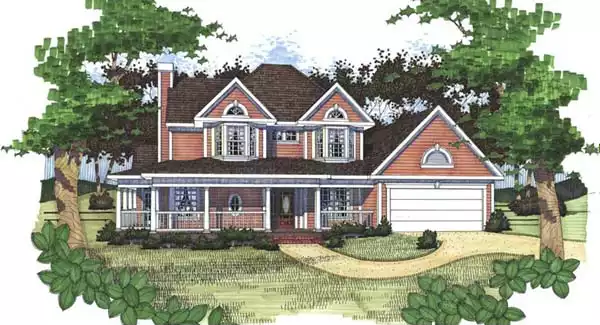

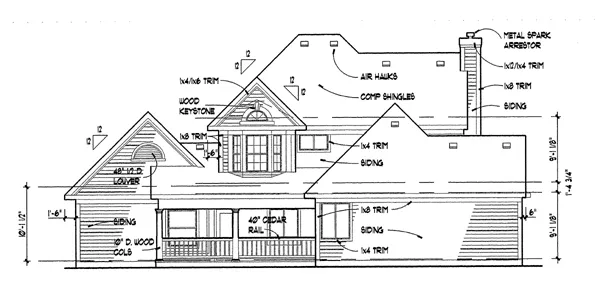

Rendering - Front Rear Elevation Left Elevation Right Elevation
© copyright by designer
Photographs may reflect modified home | View all 4 images
SQ FT
1,761
BEDS
3
BATHS
2.5
STORIES
2
CARS
2

Details & Features
Reverse Plan
View All 4 Images
Print Plan
Recent Plans
Advanced Search
Explore Architect Preferred Products For This Plan >



House Plan 5774: The Caldwell

This beautiful home is Victorian class with today's features. The Grand stair and balcony overlook an inviting Great Room. An elegant Dining Room is entered off the Foyer framed by two columns. The large Kitchen shares views with a generous breakfast Nook complete with window seats. The Secondary bedrooms are charming with vaulted ceilings, bay windows, and built-in window seats. Details such as an oval leaded glass window; and arch-top transoms add to the ambiance of this plan.
Modify This Home Plan
Cost To Build Estimate
Preferred Products
View Plan Package Options
HOUSE PLANS
START AT $895
Modify This Plan
Cost To Build
Details & Features
Reverse Plan
View All 4 Images
Print Plan
Recent Plans
Advanced Search
Explore Architect Preferred Products For This Plan >
Click to Zoom In on Floor Plan
Floor Plans

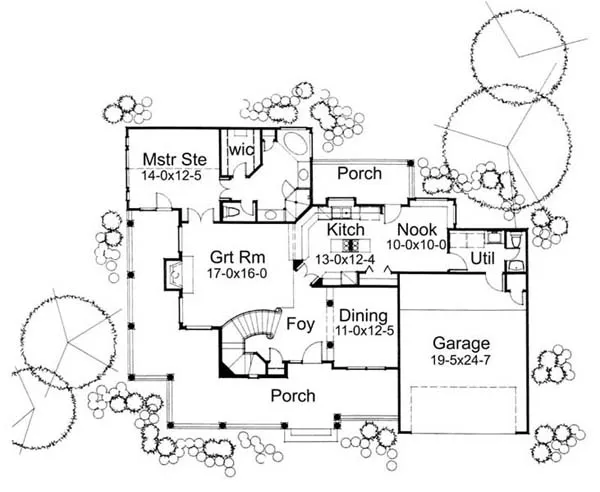

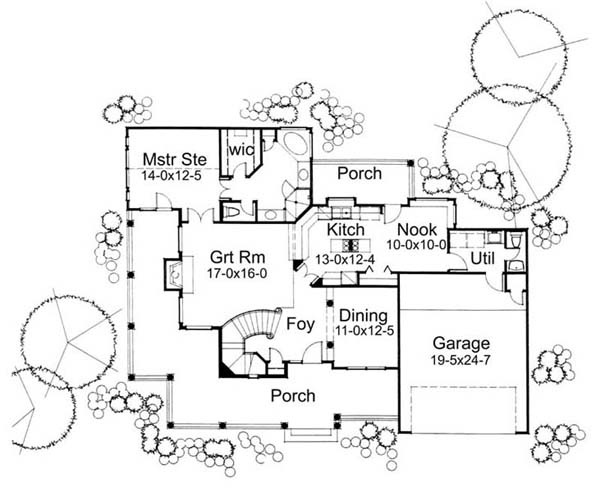

First Floor Plan

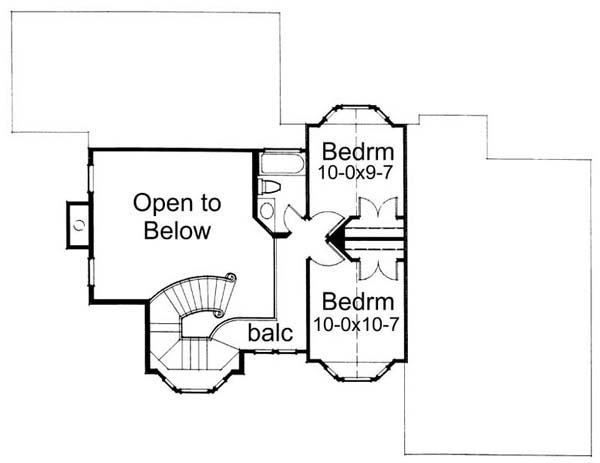

Second Floor Plan
© copyright by designer
Plan Packages
 Select Plan Package
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
 $895
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
 $1,045
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
 $1,145
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
2D electronic editable computer files
 $1,695
CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build
2D electronic editable computer files
 $2,090
 Need To Reverse This Plan? (Optional)

Readable Reverse

Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
 $195
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT INFO BEFORE YOU BUY
Features:
View All Plan Features
Exterior features
Wraparound Porch
Garage Location
Front
Garage Options
Attached
Front-entry
Foundation Options
Basement
Crawlspace
Slab
Walkout Basement

Hide Plan Features
Details:
View All Plan Details
1,761 Ft
2
Total Heated:
1,356 Ft
2
1st Floor:
405 Ft
2
2nd Floor:
3
Bedrooms:
2.5
Bathrooms:
2
Garage:
2
Stories:
61' 6"
Width:
47' 8"
Depth:
31' 0"
Height:
9
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
12/12
Primary Roof Pitch:
4:12
Secondary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
494 Ft
2
Garage:
557 Ft
2
Porch:
142 Ft
2
Deck:
Exterior Styles
Country
Traditional
Victorian
Collections
Old House Classics

Hide Plan Details
