Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,600 FT²

Bed
3

Bath
2

Stories
1

Garage
2

Depth
45' 8"

Width
61' 8"

On Sale
$1,262.25
$1,485.00

Front Elevation

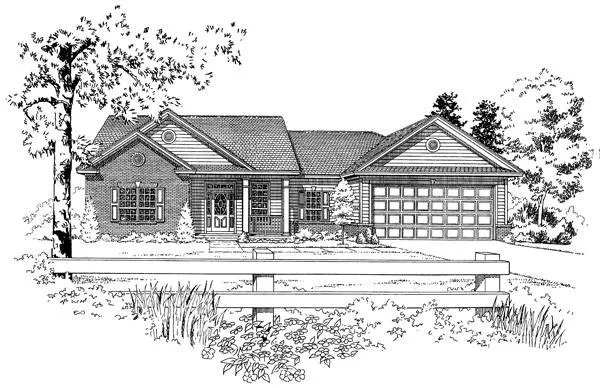

Front Elevation - B & W

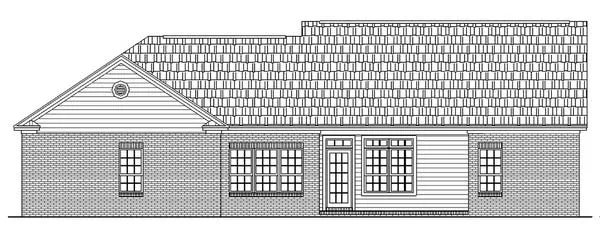

Rear Elevation

View All 3 Images | Photographs may reflect modified home

Sq Ft

1,600 FT²

From

$1,262.25

Bed

Bath

Stories

Garage

Depth

45' 8"

Width

61' 8"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

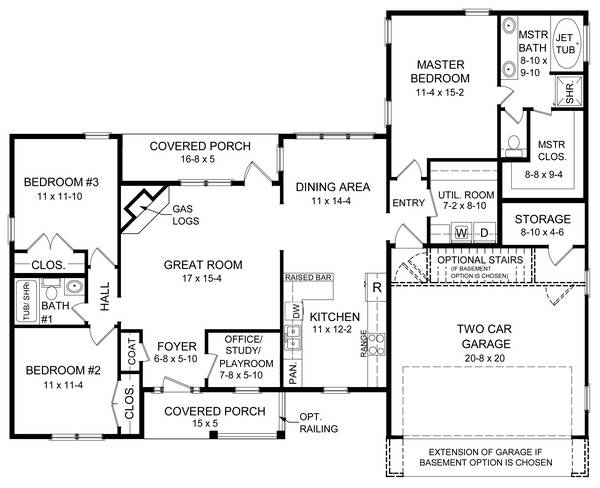

Click to Zoom In on Floor Plan

Floorplan

About This Plan

Beautiful open living area plan. Isolated master suite with jet tub, separate shower, large closet, and dual lavatories. Large utility with plenty of space for storing and folding clothing, and other goods. Large great room with gas logs fireplace, and transoms above windows on the rear for plenty of light. Covered rear porch is a great space for grilling-out. A flexible space is provided by the foyer for a home office or other family needs. Kitchen has raised bar for friends and family to visit.

FEATURES & DETAILS

Kitchen features

Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for corner lot
Suited for sloping lot
Suited for view lot

Additional features

Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Unfinished Space
Workshop

Garage Location

Front

Garage Options

Attached
Front-entry
Oversized

1,600 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

61' 8"

Width

45' 8"

Depth

21' 0"

Height

9' 0"

Main Floor Ceiling

2x6

Framing

Truss

Roof Framing

8/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

430 Ft

Garage

44 Ft

Storage

158 Ft

Porch

Exterior Styles

Cape Cod

Ranch

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,315

Study Set - Printed

One printed set of house plans stamped NOT FOR CONSTRUCTION". This set is intended for review purposes and are mailed to you. To build from the plans, you need to upgrade to a licensed set.

$1,315

$1,485

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,485

$1,595

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,595

$1,680

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,680

$2,075

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,075

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
