Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,705 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
52'

Width
40' 4"

On Sale
$825.85
$995.00

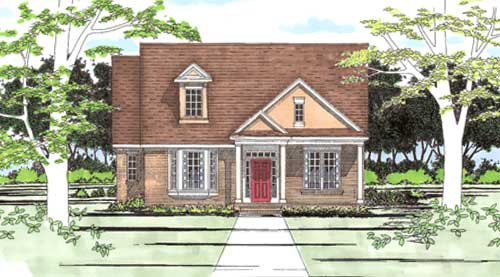

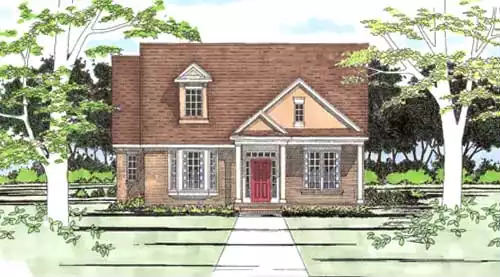

Front Rendering

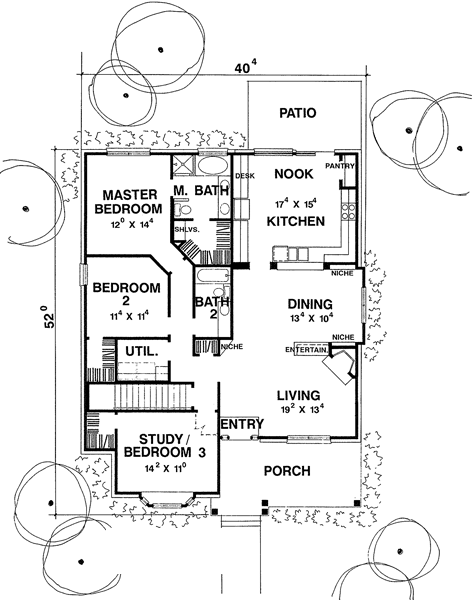

First Floor Plan

View All 2 Images | Photographs may reflect modified home

Sq Ft

1,705 FT²

From

$825.85

Beds

Baths

Stories

Garage

Depth

52'

Width

40' 4"

Modify

Cost Estimator

Architect's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

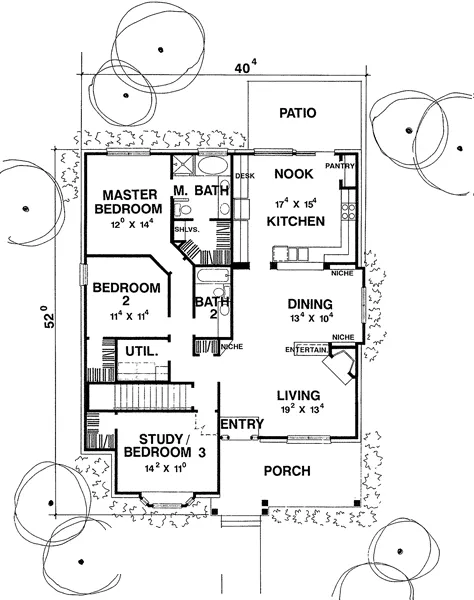

First Floor Plan

About This Plan

Traditional styling prevails in this efficiently designed single story family home. The living room has an optional built-in entertainment center and fireplace. The front bedroom is an optional study/home office. A 2 car detached garage plan is included.

See All Plan Options

FEATURES & DETAILS

Exterior features

Front Porch

Foundation Options

Crawlspace
Slab

Lot Options

Suited for narrow lot

Garage Options

Detached

1,705 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

40' 4"

Width

52' 0"

Depth

28' 11"

Height

10' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

10/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

200 Ft

Porch

160 Ft

Patio

Exterior Styles

Cottage

Country

Traditional

Collections

Old House Classics

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $826

PDF Single Build

~~$995~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $826

Sale: $1,656

CAD Single Build

~~$1,995~~

States N/A: TX,NM,LA,AR

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,656

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
