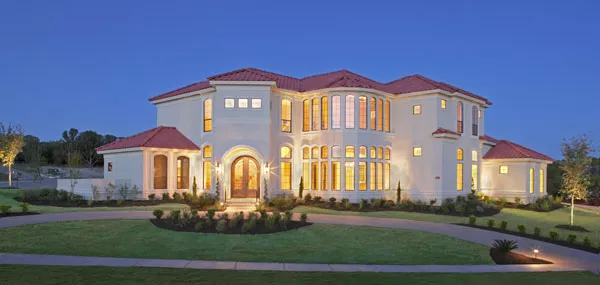

House Plan 8424: The Austin

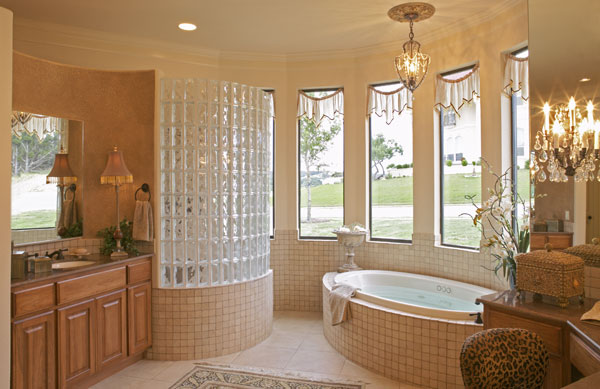

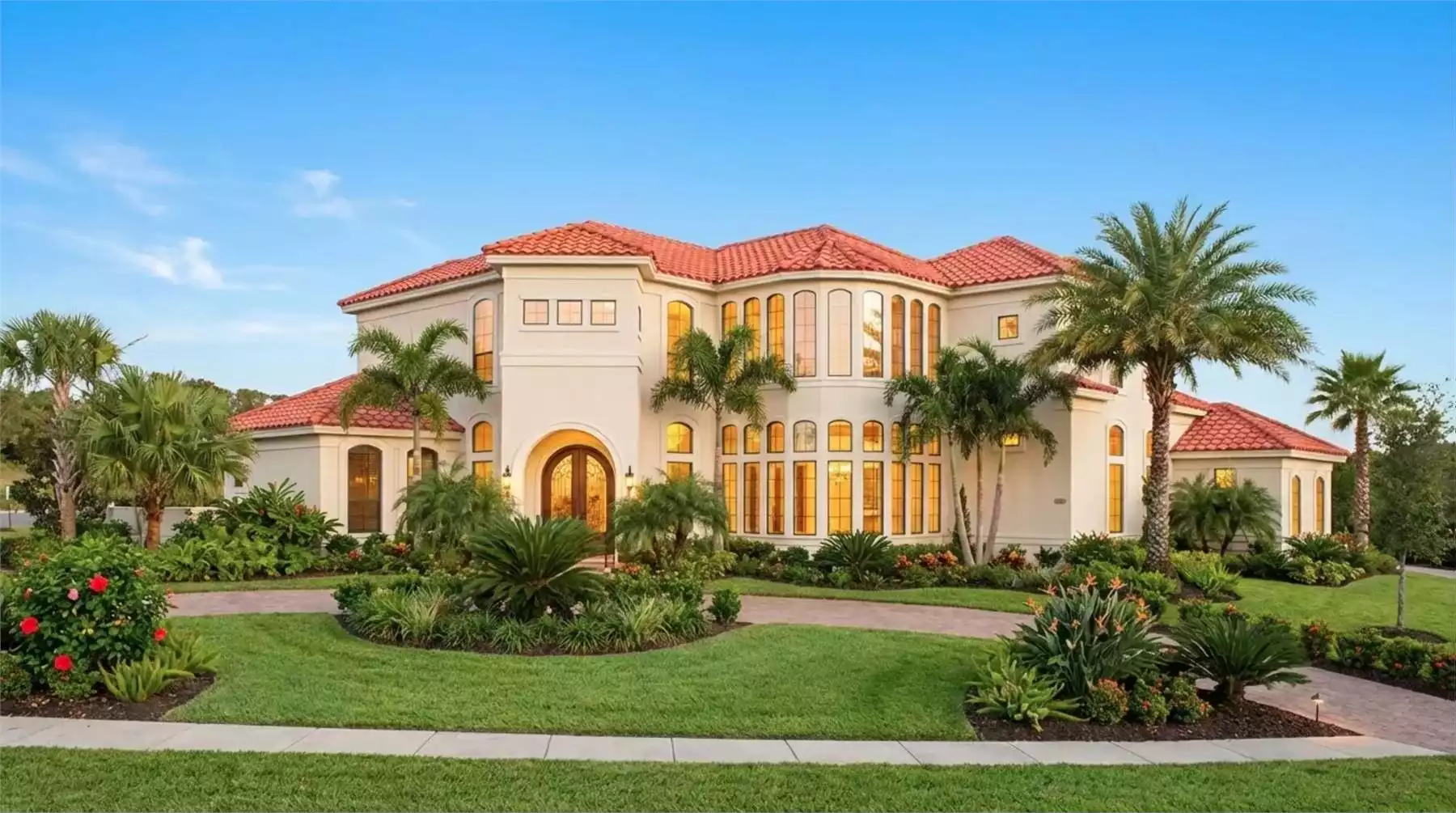

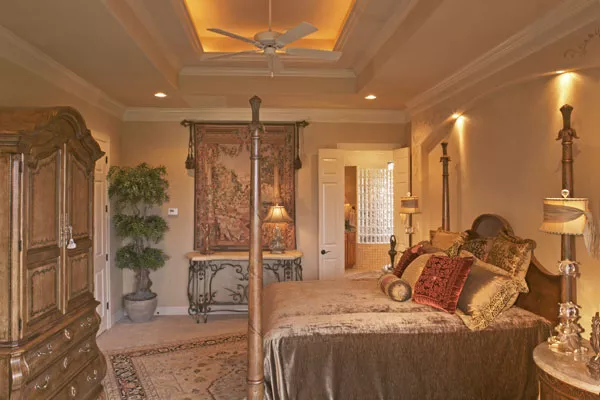

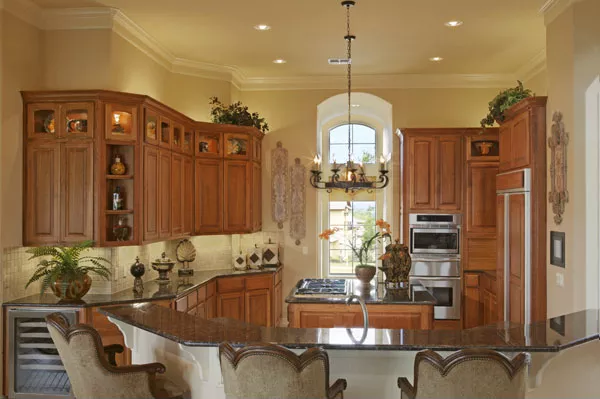

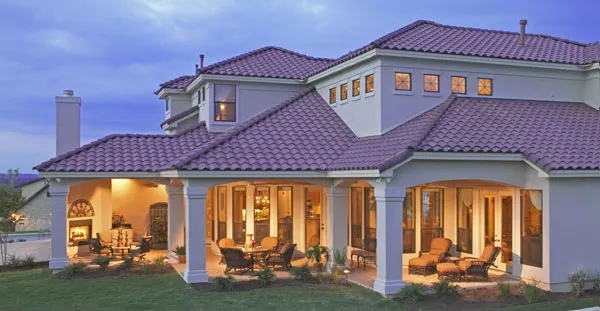

This Mediterranean style home features the ultimate covered patio for outdoor living. Inside, the back of the home is all glass. The gourmet Kitchen is open to the Great Room and Breakfast Room. The Master Suite includes a spa like Bath with a large soaking tub nestled in the curved wall.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
3,804
Beds
4
Baths
4.1
Stories
2
Garages
2
Width
85' 8"
Depth
80' 4"
1st Floor
2,593
2nd Floor
1,211
Garage
601
Porch
704
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Vellum
$1145
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $1145
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

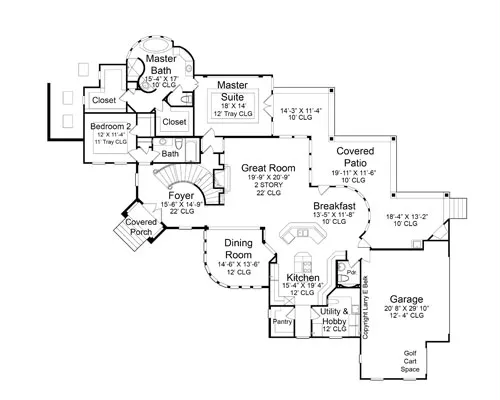

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 4.1
Garage: 2
Stories: 2
Exterior Style
Mediterranean
Dimensions
Width: 85' 8"
Height: 30' 0"
Depth: 80' 4"
Heated Living Space
Total Sq. Ft: 3,804
1st Floor: 2,593
2nd Floor: 1,211
Unheated Living Space
Garage: 601
Porch: 704
Ceiling
Upper Ceiling Ft: 9
Main Ceiling Ft: 10
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Guest Suite
Guest Suite
Master Bdrm Main Floor
Master Bdrm Main Floor
Walk-in Closet
Walk-in Closet
Kitchen Features
Kitchen Island
Kitchen Island
Walk-in Pantry
Walk-in Pantry
Additional Room Features
2 Story Volume
2 Story Volume
Arches
Arches

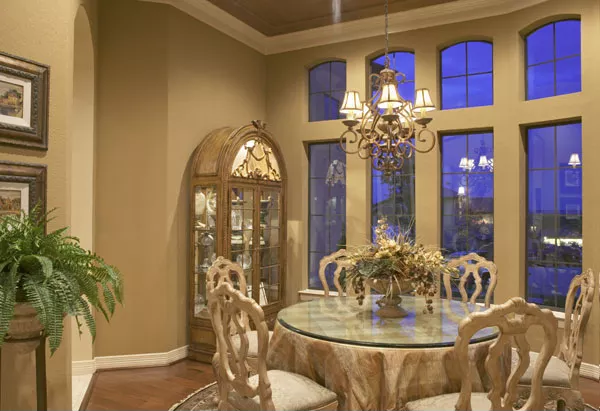

Dining Room
Dining Room
Fireplace
Fireplace

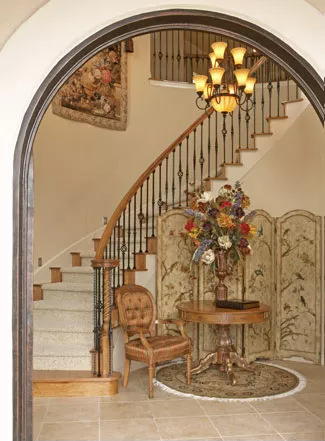

Foyer
Foyer

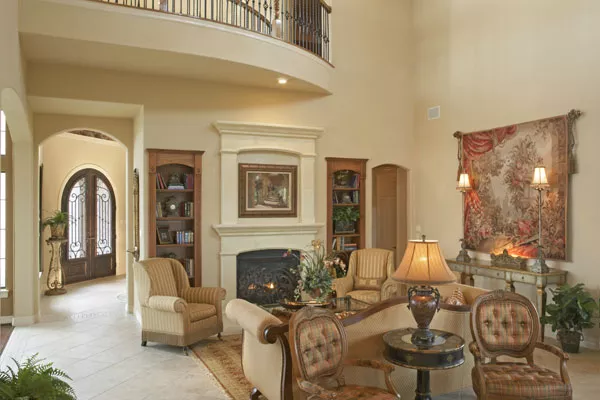

Great Room
Great Room
Laundry 1st Fl
Laundry 1st Fl

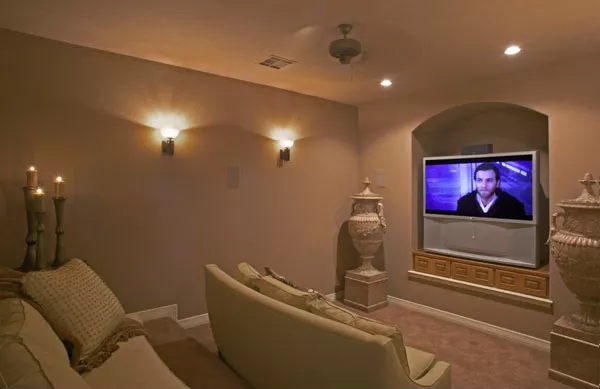

Library/Media Rm
Library/Media Rm
Open Floor Plan
Open Floor Plan
Garage Location
Side
Garage Features
Attached
Attached
Side-entry
Side-entry
Lot Features
Suited for corner lot
Suited for corner lot
Roof Pitch
Primary: 6/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
