About This Plan

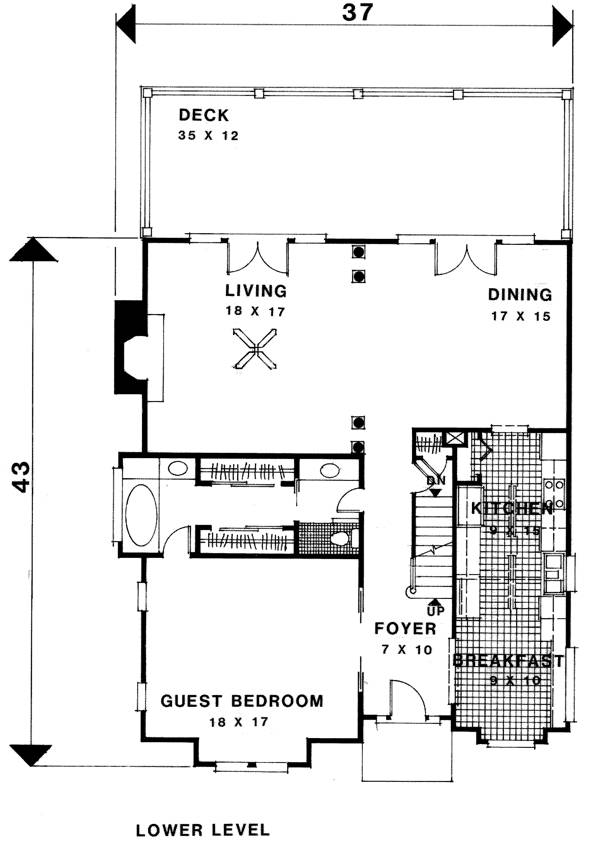

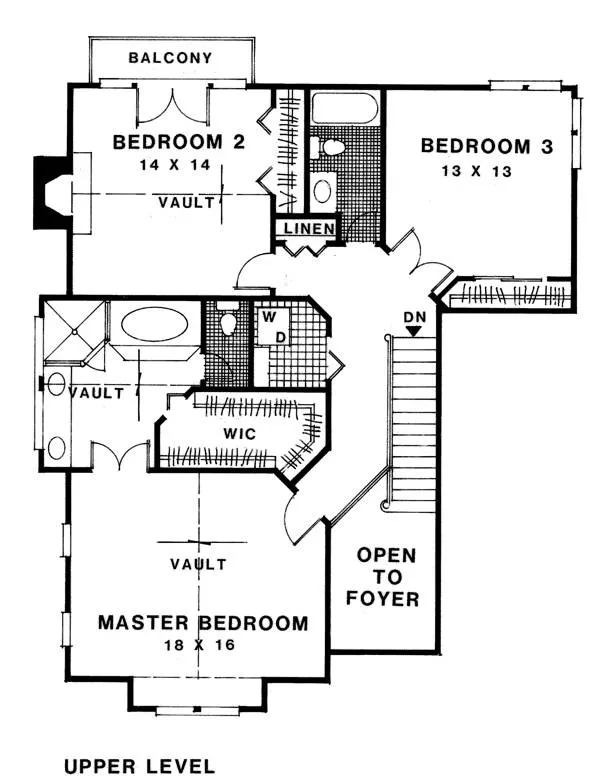

This tri-level drive-under is ideal for a narrow lot. The plan measures 37' wide by 43' deep, and features 2,670 sq.ft. of living space, or when adding the 916 sq.ft. in the basement, features 3,586 sq.ft. The basement level, with a side-loading 22'x22' two-car garage, also includes a full bathroom, laundry room and storage room. Conveniently located on the basement level is the 18'x19' family room with double French doors leading onto a 35'x12' terrace. The fifth bedroom, also located on the basement level, measures 15'x12' and features two closets. The lower level of the main living area features a two story foyer. Just off of the foyer, through twin pocket doors, is the 18'x17' guest room complete with a full bathroom featuring separate vanities and two closets. This bathroom also opens into the hallway to service the entire lower level. The 18'x17' living room has a fireplace and French doors leading onto a 35'x12' deck which is also accessible from the dining room. The corridor kitchen, featuring a pantry, built-in recipe desk and vaulted ceiling, leads into a breakfast room which is highlighted by a radius top window. The upper level 18'x16' master suite with vaulted ceiling pampers the owner with a master bath featuring a step-up garden tub, glass shower and double vanity. Centrally located on the upper level is a mini-laundry room designed with space-saving, efficient washer-dryer stackable unit in mind. Bedroom #2 measures 14'x14' and features a vaulted ceiling, fireplace and French doors leading onto a private balcony. Separating bedrooms #2 and #3 is a hall bath with a conveniently located hall linen closet. Bedroom #3 measures 13'x13', has double French doors in an angled entry and corner windows for maximum light exposure.




FEATURES & DETAILS

Exterior features
No Porch
Foundation Options
Basement
Lot Options
Suited for narrow lot
Garage Location
Side
Garage Options
Attached
3,586 Ft
2
Total Heated
1,455 Ft
2
1st Floor
1,215 Ft
2
2nd Floor
916 Ft
2
Lower Floor
5
Bedrooms
4
Bathrooms
2
Garage
3
Stories
37' 0"
Width
43' 0"
Depth
41' 0"
Height
9' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
10/12
Primary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
