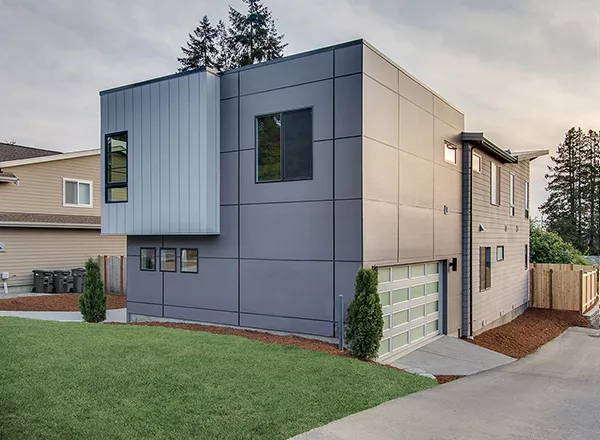

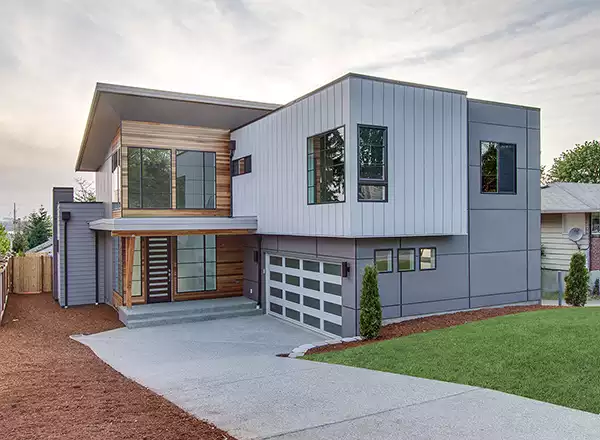

Front Photo

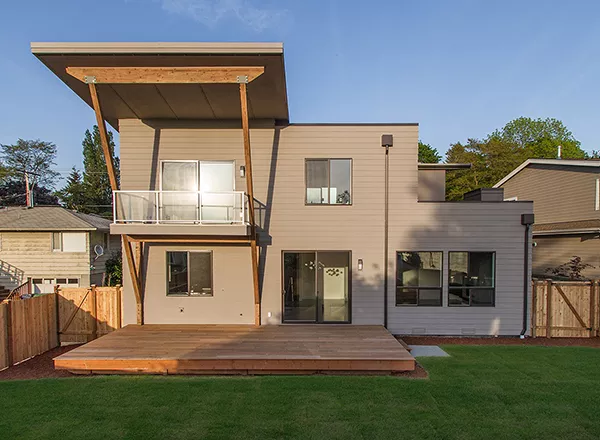

Exterior Photo
Exterior Photo
Exterior Photo

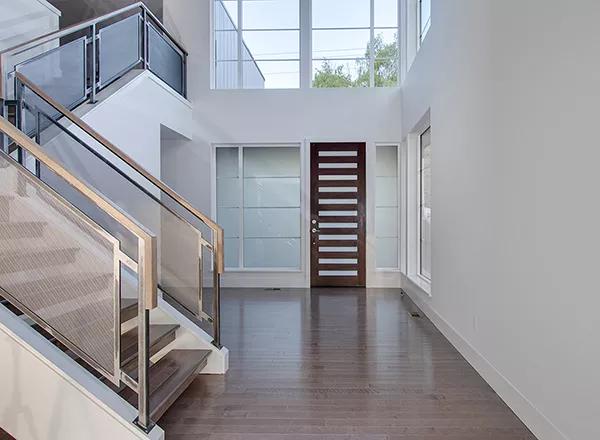

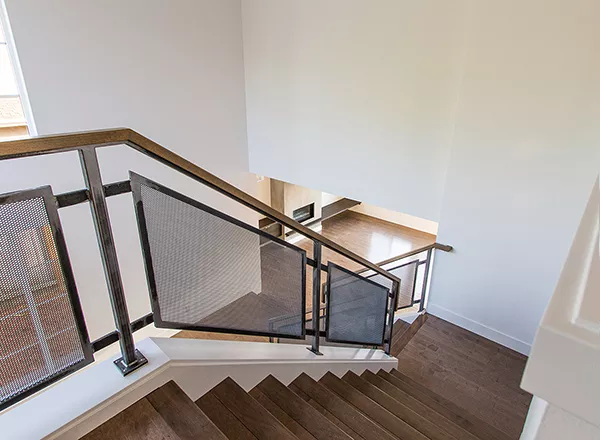

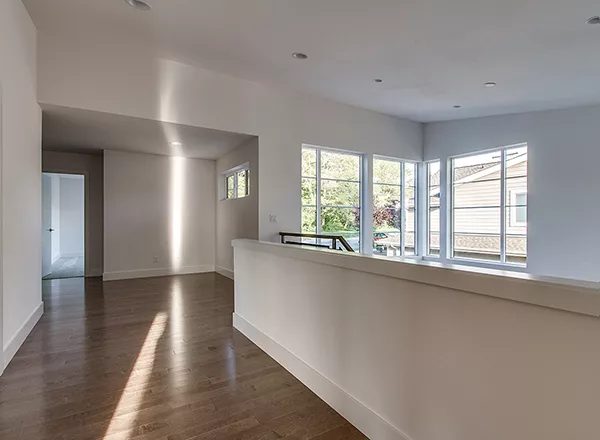

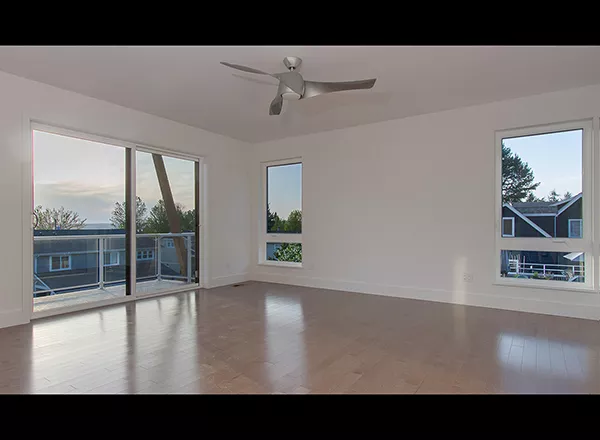

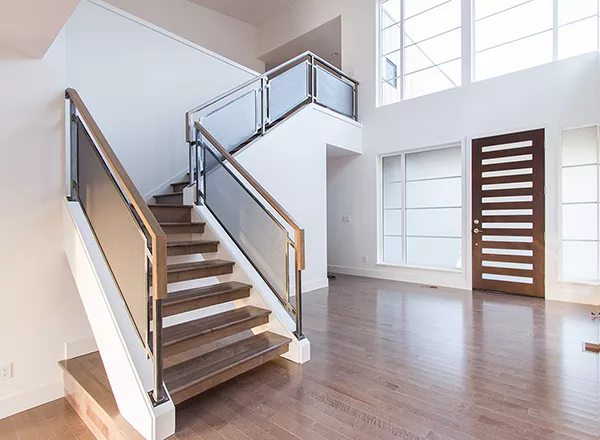

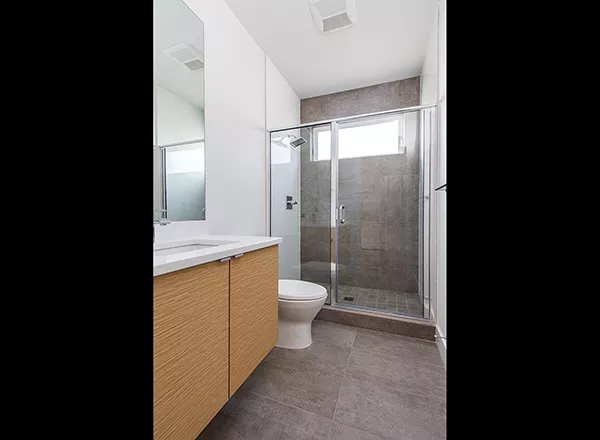

Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo
Interior Photo

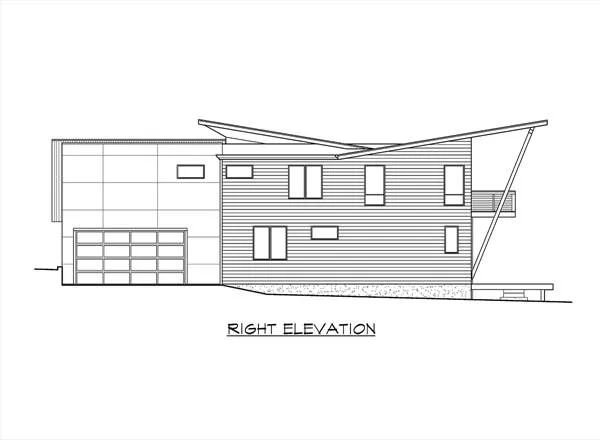

Right Elevation

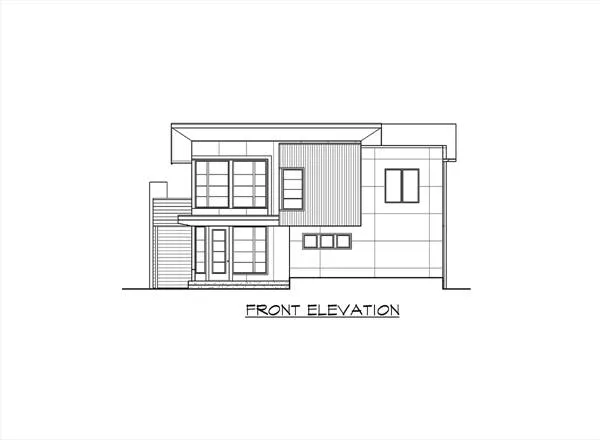

Front Elevation

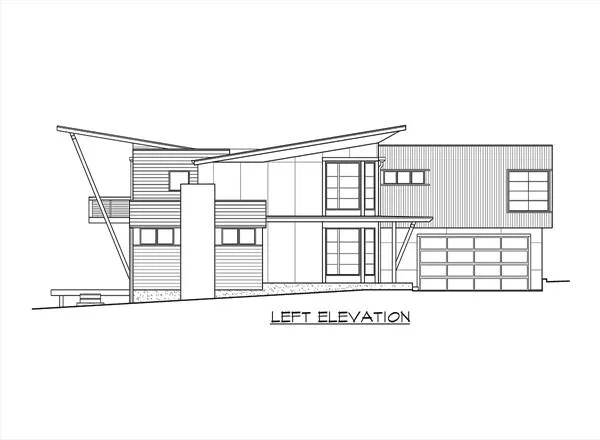

Left Elevation

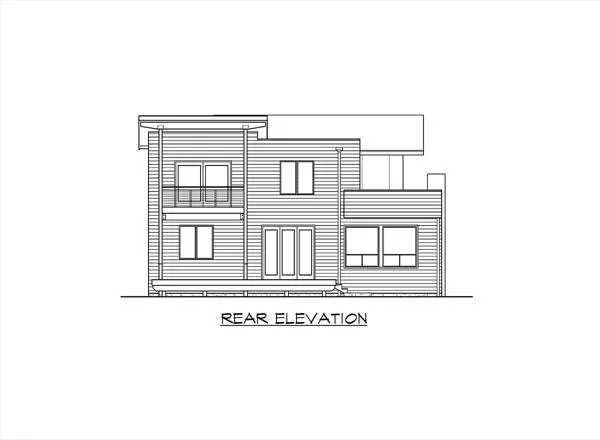

Rear Elevation
Main Floor

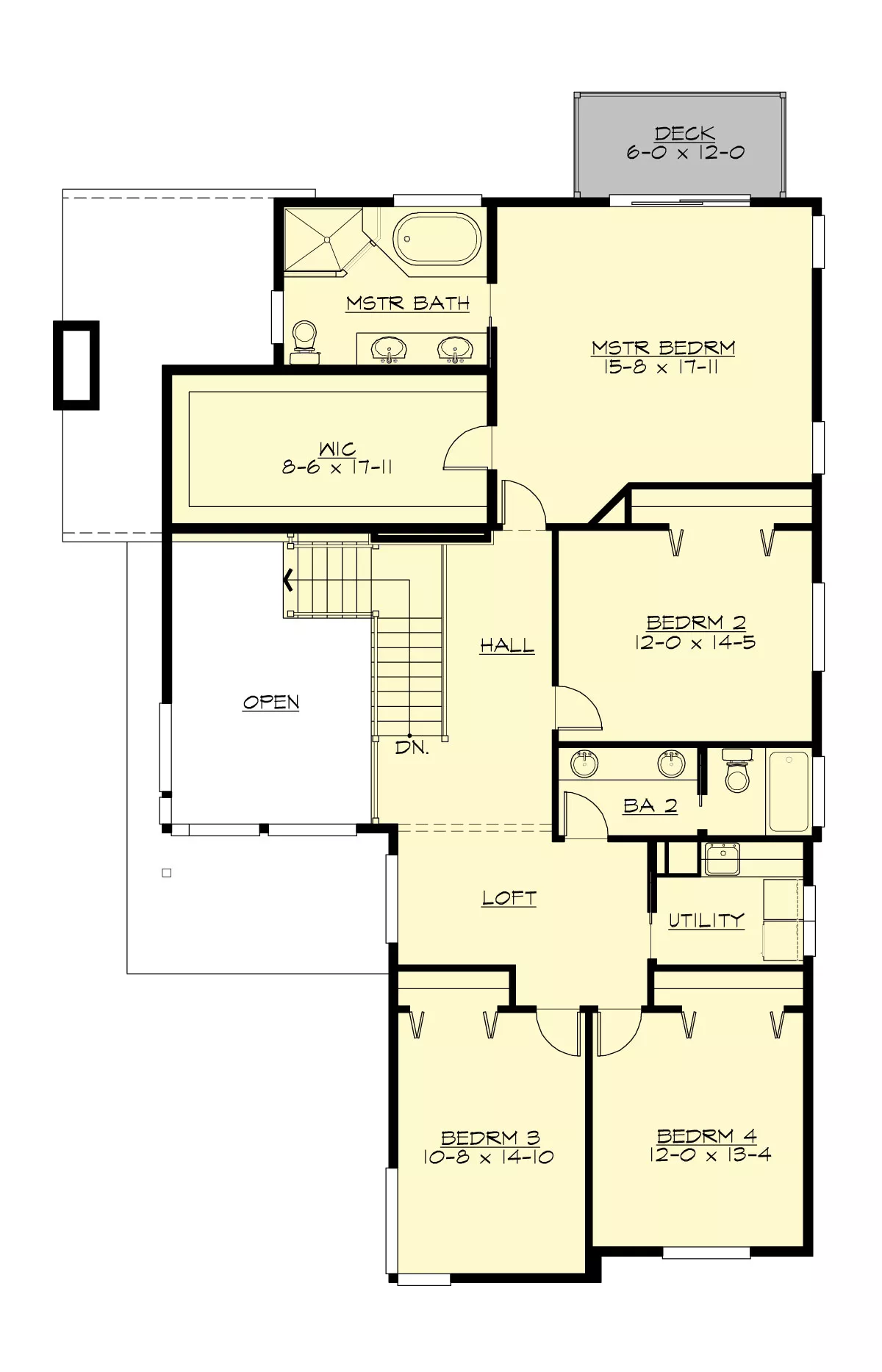

Upper Floor
© copyright by designer
Mouse over photo to pause

House Plan 5540: Swallowtail

House Plan Details

Sq. Ft.
3,104
Beds
5
Baths
3.0
Stories
2
Garages
3
Width
43' 0"
Depth
72' 0"
Select Plan Package
PDF Files - Single Use Li
$1650
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.

Note: This plan cannot be purchased for construction in Washington State.
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

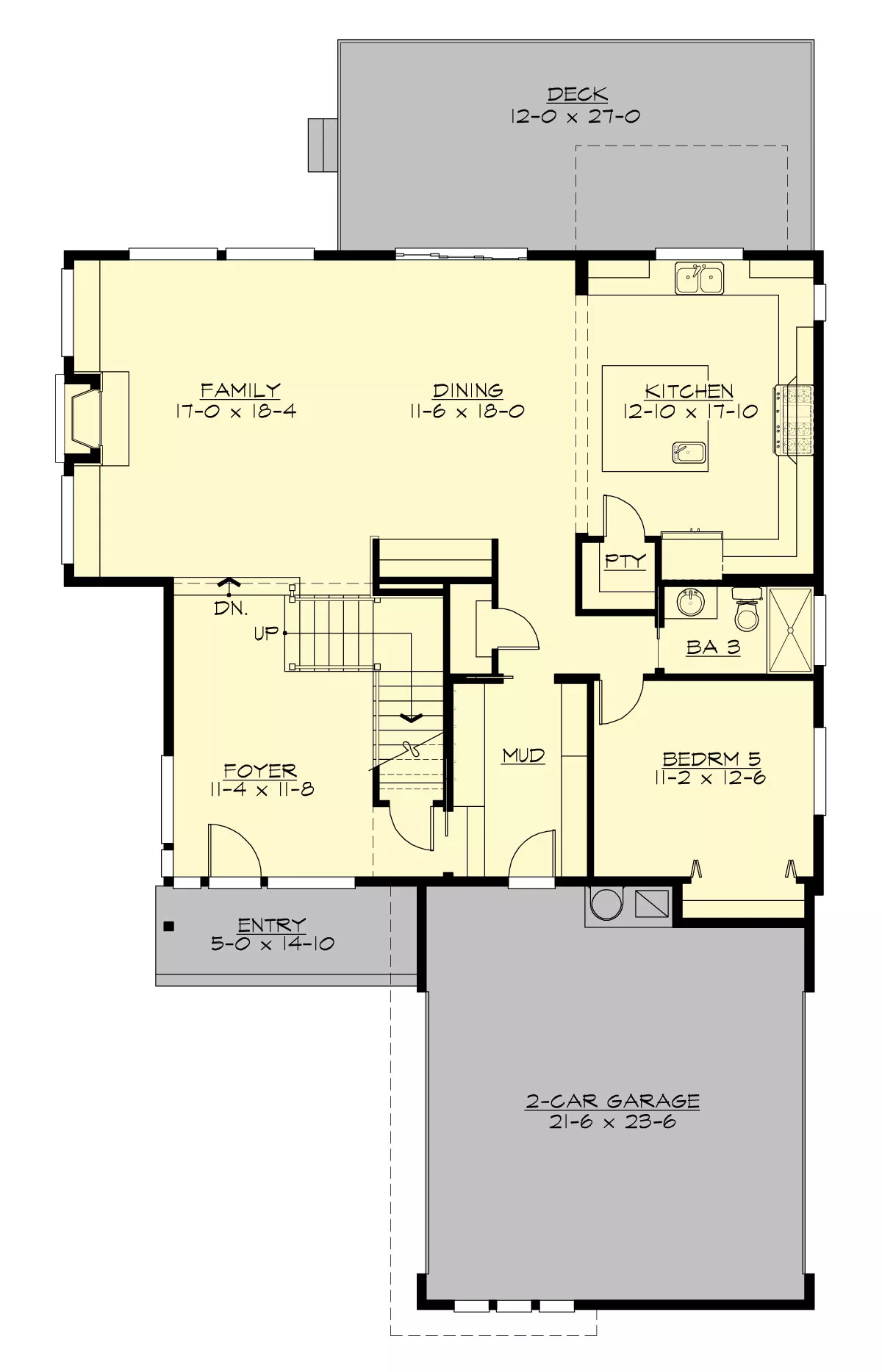

Main Floor

Main Floor
© copyright by designer
DETAILS
Total SQ. FT.:
3,104
1st Floor SQ. FT.:
1,471
2nd Floor SQ. FT.:
1,633
Bedrooms:
5
Bathrooms:
3.0
Garage:
3
Stories:
2
Main Ceiling Height:
8'
Upper Ceiling Height:
8'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 2
Width:
43' 0"
Depth:
72' 0"
Height:
24' 0"
Exterior Styles:
Contemporary
Modern
Unheated Living Space:
Garage: 521
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet
Kitchen Features:
Kitchen Island
Peninsula / Eating Bar
Walk-in Pantry
Additional Features:
Dining Room
Fireplace
Foyer
Great Room
Laundry 2nd Fl
Loft / Balcony
Mud Room
Open Floor Plan
Garage Features:
Side-entry
Garage Location:
Side
Lot Features:
