Search Plans


Sq Ft
3,428 FT²

Beds
3

Baths
3

Stories
2

Garage
2

Depth
78'

Width
40'
From
$1,160.00
© copyright by designer
View All 30 Images | Photographs may reflect modified home
Sq Ft
3,428 FT²
From
$1,160.00
Beds
3
Baths
3
Stories
2
Garage
2
Depth
78'
Width
40'

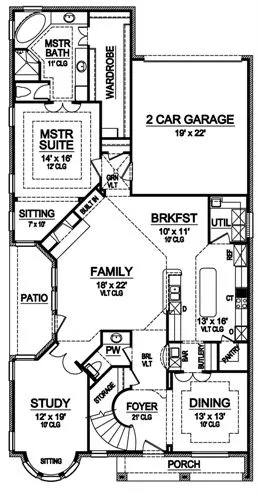

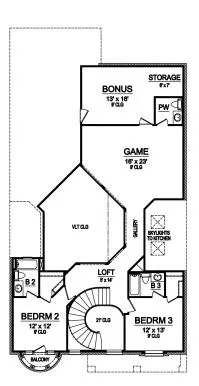

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

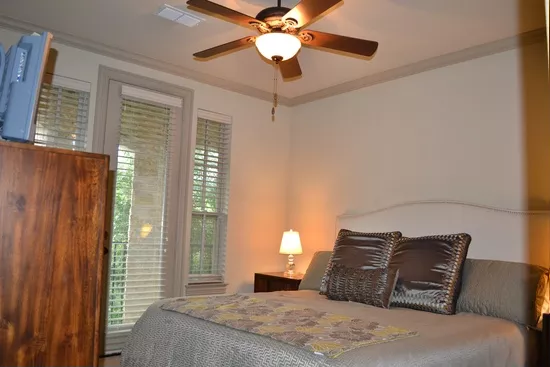

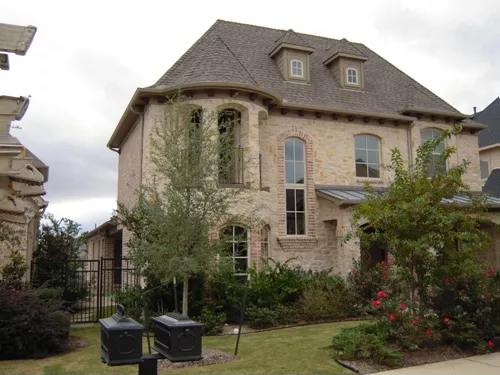

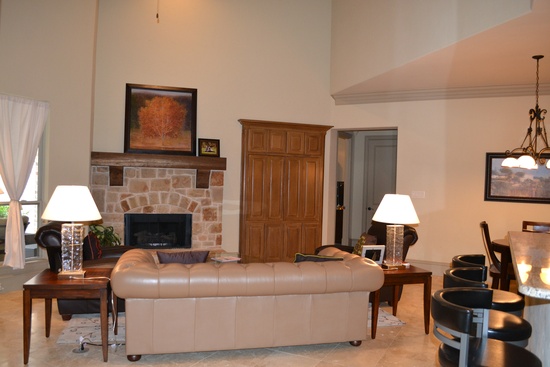

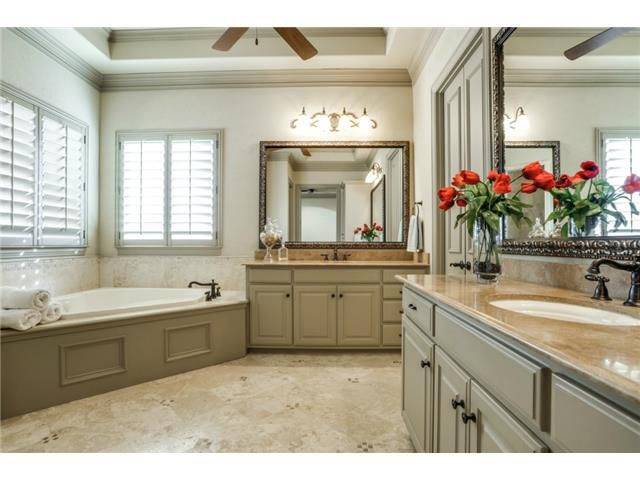

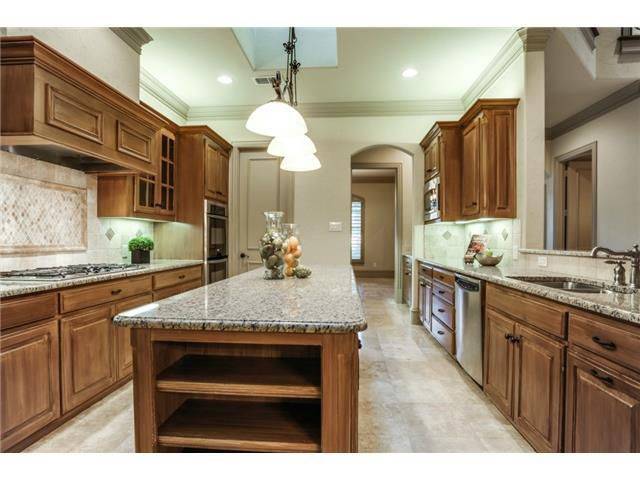

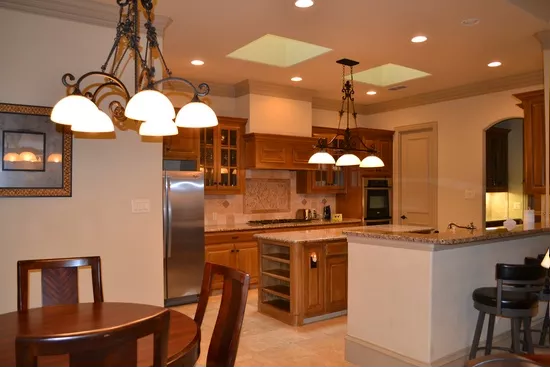

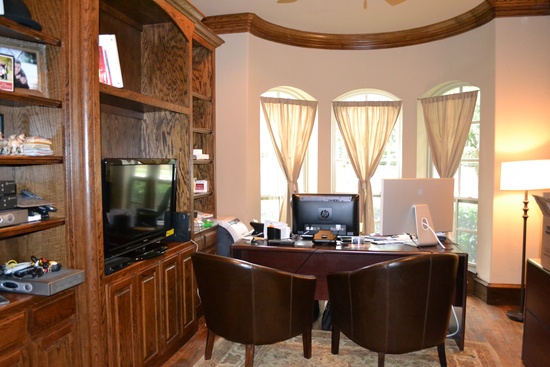

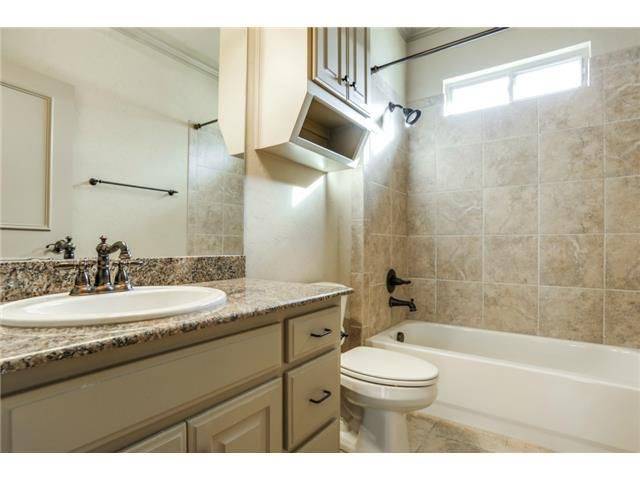

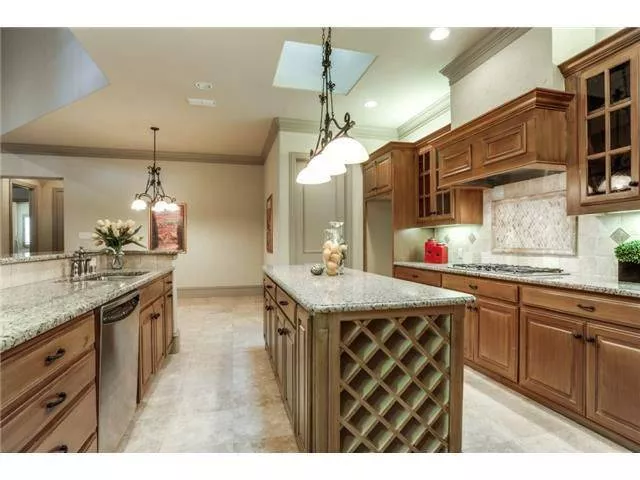

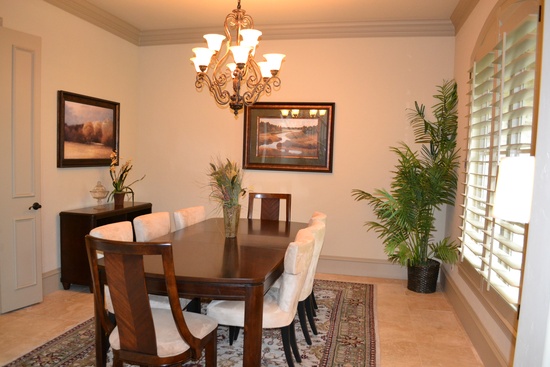

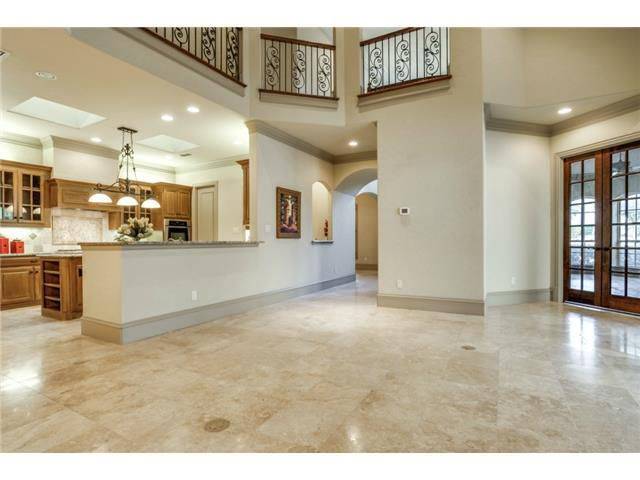

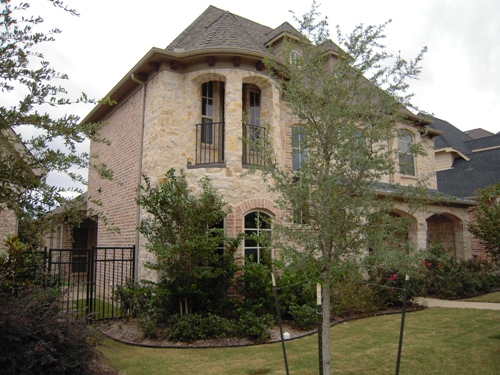

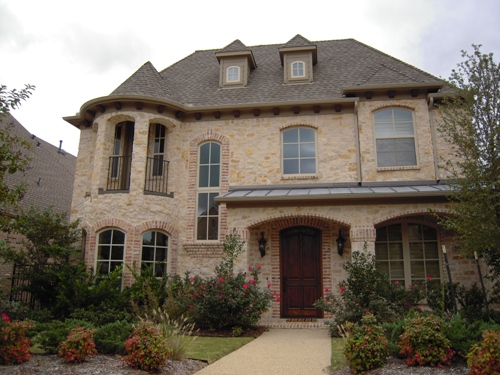

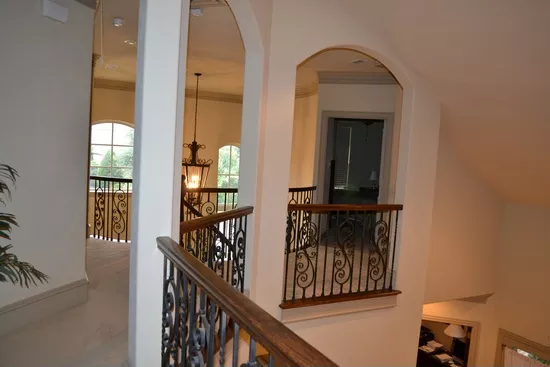

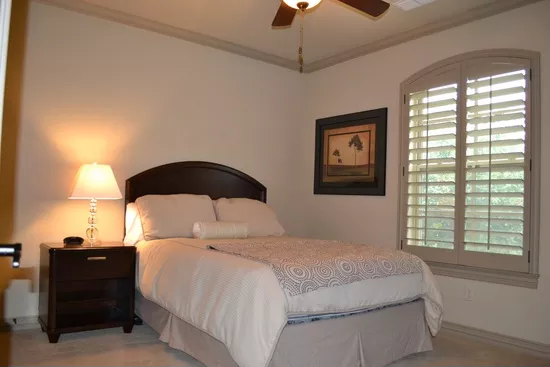

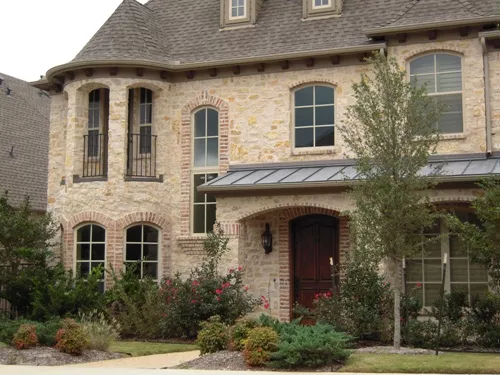

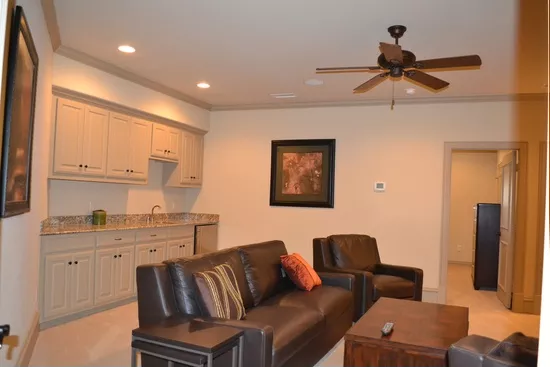

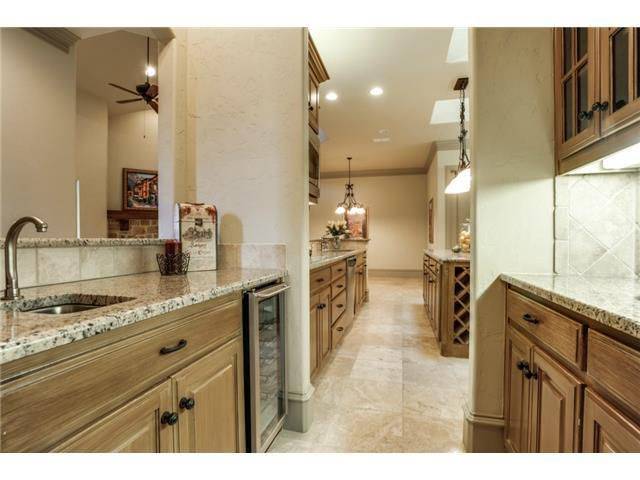

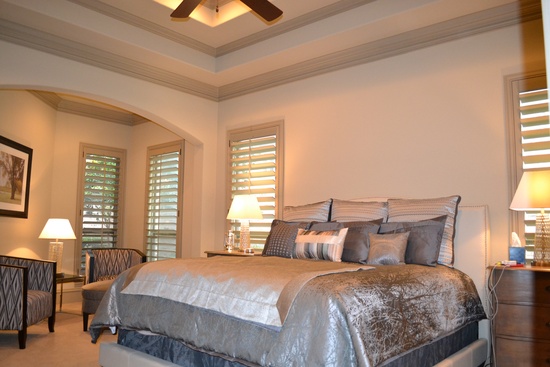

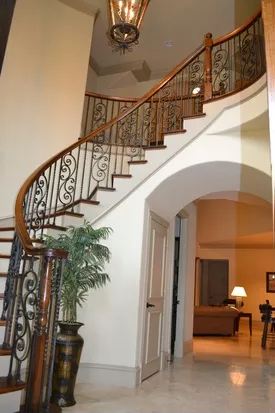

This Texas-inspired luxury house plan is perfect for a narrow or zero lot line. The two-story foyer has a curved staircase to the second story and a barrel vaulted ceiling through to the vaulted family room. The family room, kitchen and breakfast area are open to one another, separated only by the breakfast bar. A free-standing island offers extra counter space, while skylights add brightness. A quiet study with bayed sitting area sits off the family room. The elegant dining room has direct access to the bar, butlery and pantry for ease in serving. The master suite offers a sitting area with trey ceiling and lavish bath with his and hers vanities, separate shower, corner garden tub and a large wardrobe. A two-car garage is behind the family room through the barrel vaulted ceiling. Upstairs, two family bedrooms, one with a private balcony, offer walk-in closets and full baths. There is a game room, loft and bonus room with storage area that completes this luxury house plan.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch

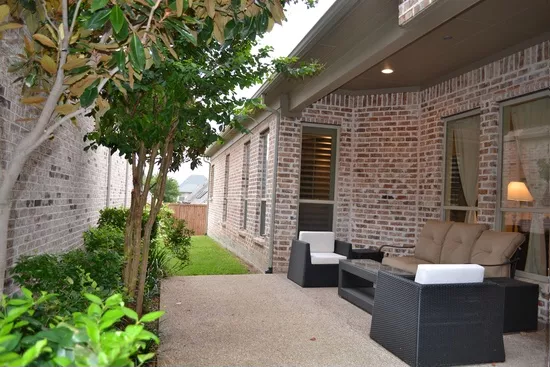

Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Foyer
Home Office

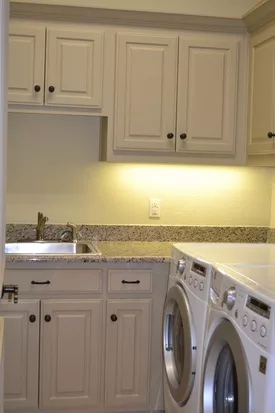

Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Rear
Garage Options
Attached
Rear-entry
4,402 Ft
2
Total Structure
3,428 Ft
2
Total Heated
2,264 Ft
2
1st Floor
1,164 Ft
2
2nd Floor
3
Bedrooms
3
Bathrooms
2
Garage
2
Stories
40' 0"
Width
78' 0"
Depth
34' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
16
Primary Roof Pitch
8
Secondary Roof Pitch
18
Dormer Roof Pitch
Single
Dwelling Number

Unheated Living Space
453 Ft
2
Garage
283 Ft
2
Storage
89 Ft
2
Porch
30 Ft
2
Deck
119 Ft
2
Patio
283 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$1,045
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,045
$1,225
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,225
$1,570
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,570
 Need To Reverse Plan? (Optional)
$150
Readable Reverse

Reverse house plans with readable text and dimensions

$150
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
