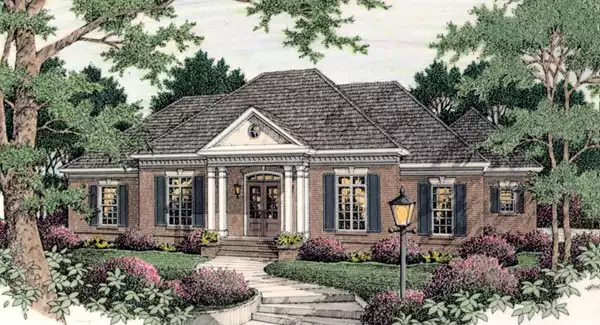

House Plan 5141: Springdale

A fantastic kitchen including the butler's pantry accessed from the kitchen and formal dining room. The kitchen is functional as well as elegant with architectural columns framing the island/snack bar. Great spaces are located in all areas of this home with the impressive sunroom, large master suite with designated sitting area, an extra room is provided for a fourth bedroom, office, study or formal living room.  Read more >

House Plan Details

Sq. Ft.
3,084
Beds
4
Baths
2.1
Stories
1
Garages
3
Width
73' 9"
Depth
79' 3"
Select Plan Package
PDF Construction Set - Si
$1250
Select Foundation Options
$0
Basement
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

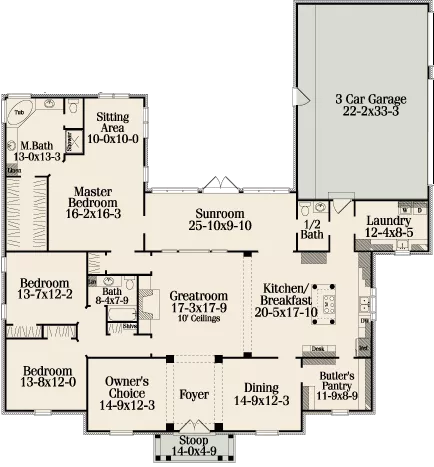

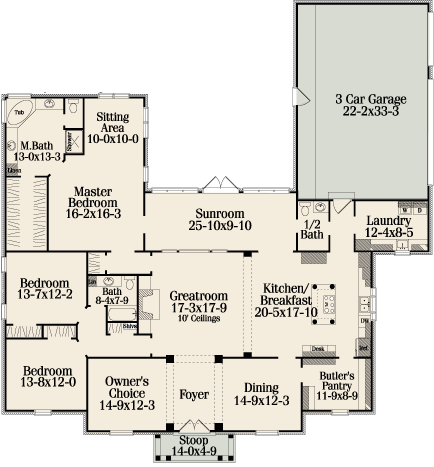

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
3,084
1st Floor SQ. FT.:
3,084
Bedrooms:
4
Bathrooms:
2.1
Garage:
3
Stories:
1
Main Ceiling Height:
10'
Upper Ceiling Height:
0'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 10/12
Width:
73' 9"
Depth:
79' 3"
Height:
26' 0"
Exterior Styles:
Southern
Traditional
Unheated Living Space:
Garage: 810
Porch: 59
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Walk-in Closet
Kitchen Features:
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Additonal Features:
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Garage Features:
Attached
Side-entry
Garage Location:
Rear
Lot Features:
Suited for corner lot
