Split Level Traditional, THD-1523

Sq Ft
1,263 FT²
Bed
3
Bath
2
Stories
1.5
Garage
2
Depth
30'
Width
46'
On Sale
$807.50
$950.00
EXCLUSIVE PLAN
© copyright by designer
View All 3 Images | Photographs may reflect modified home
Sq Ft
1,263 FT²
From
$807.50
Bed
3
Bath
2
Stories
1.5
Garage
2
Depth
30'
Width
46'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

The design of this starter home is a blend of the basics, with efficient use of labor and materials. A small amount of heated space on two levels gives the first time home buyer more for their money.

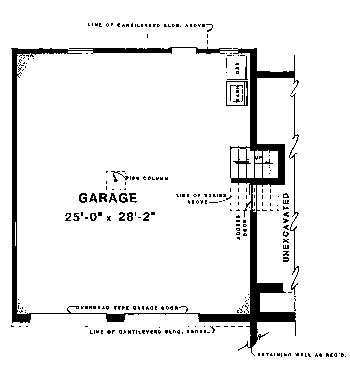

The first level of the plan is a full drive under double garage. There is room in this area for a work bench or storage, and laundry facilities are located here as well.

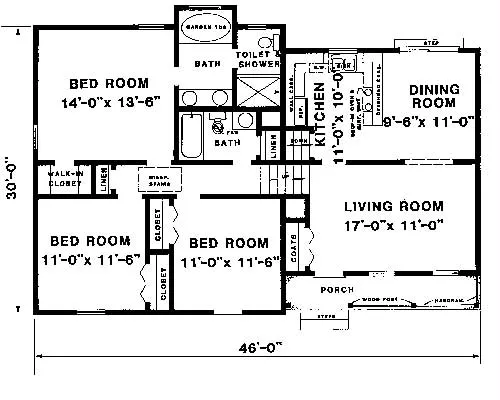

The main level encompasses a living room sized for comfort. Adjacent is the large, combination kitchen dining room. The popular U-shape of the kitchen cabinets provides optimum storage and work surfaces. Sliding glass doors provide a view of the rear yard, bringing nature right to the table.
Easy access is down to the garage or up to the three bed rooms. Generously sized family bed rooms have access to a hall bath, including a linen closet. Additional linen storage is in the hall along with a disappearing stair to attic storage.
The master suite includes a walk-in closet and private luxury bath. The bath includes a well placed garden tub worthy of particular note, since there is also a separate shower stall.
The exterior is a combination of horizontal wood and brick enhanced by a wood rail front porch, shuttered windows and gable roof.



FEATURES & DETAILS

Bedroom features
Primary Bdrm Upstairs
Walk-in Closet
Exterior features
Front Porch
Foundation Options
Slab
Lot Options
Suited for narrow lot
Suited for sloping lot
Additional features
Great Room
Garage Location
Under
Garage Options
Attached
Drive-under
1,263 Ft
2
Total Heated
1,263 Ft
2
1st Floor
3
Bedrooms
2
Bathrooms
2
Garage
1.5
Stories
46' 0"
Width
30' 0"
Depth
8' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
7/12
Primary Roof Pitch
Single
Dwelling Number
None
Bonus Access

Unheated Living Space
780 Ft
2
Garage


Plan Package Options

 Select Plan Package
$950
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$950
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
