HOUSE PLANS
START AT $725
SQ FT
1,764
BEDS
3
BATHS
2.5
STORIES
2
CARS
2
WIDTH
61'
DEPTH
46'
© copyright by designer
Photographs may reflect modified homes.   View all 1 photos
SQ FT
1,764
BEDS
3
BATHS
2.5
STORIES
2
CARS
2



SOMERSET 3 Bedroom Victorian Style House Plan 8249

 A simple farmhouse design is enhanced by a touch of Victorian flair, thanks in part to this home’s turret and beautiful gables. An astonishing covered front porch wraps all the way around from the front of the home, to the back sundeck. A double-garage is found on the other side of the home, along with plenty of storage. Inside this 2-story plan, you will find 1,764 square feet of living space, including 3 bedrooms and 2.  Read more >

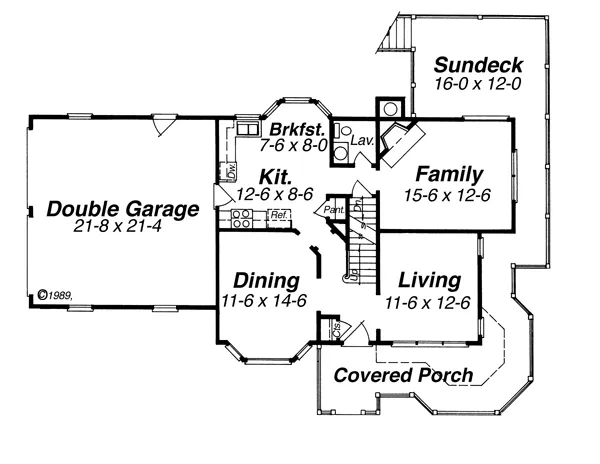

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
PDFs NOW!™
Digital set of plans for bidding purposes only
$725

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,100

Vellums


"Recommended" - For making minor changes to your house plans. Delivered on Reproducible Vellum.
Vellums
A vellums package
$1,200

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,200
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$650
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Walk-in Closet
Lot features
Suited for sloping lot
Additional features
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 2nd Fl
Garage Location
Side
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
1,764 Ft
2
Total Heated:
887 Ft
2
1st Floor:
877 Ft
2
2nd Floor:
863 Ft
2
Lower Floor:
3
Bedrooms:
2.5
Bathrooms:
2
Garage:
2
Stories:
61' 0"
Width:
46' 0"
Depth:
25' 0"
Height:
8
Main Floor Ceiling:
8
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
7/12
Primary Roof Pitch:
20/12
Secondary Roof Pitch:
7/12
Gable Roof Pitch:
5/12
Porch Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
484 Ft
2
Garage:
352 Ft
2
Porch:
192 Ft
2
Deck:
Exterior Styles
Country
Farm House
Victorian
