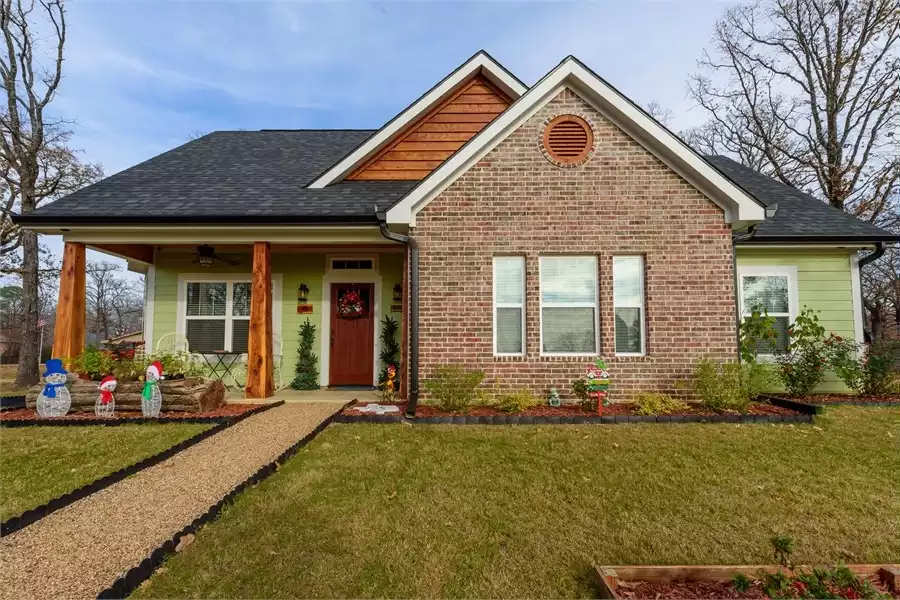

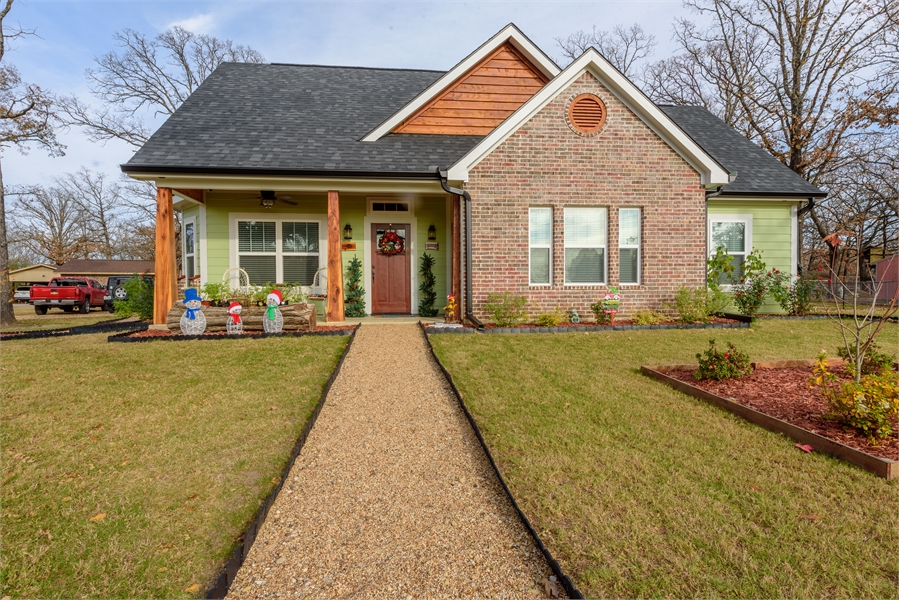

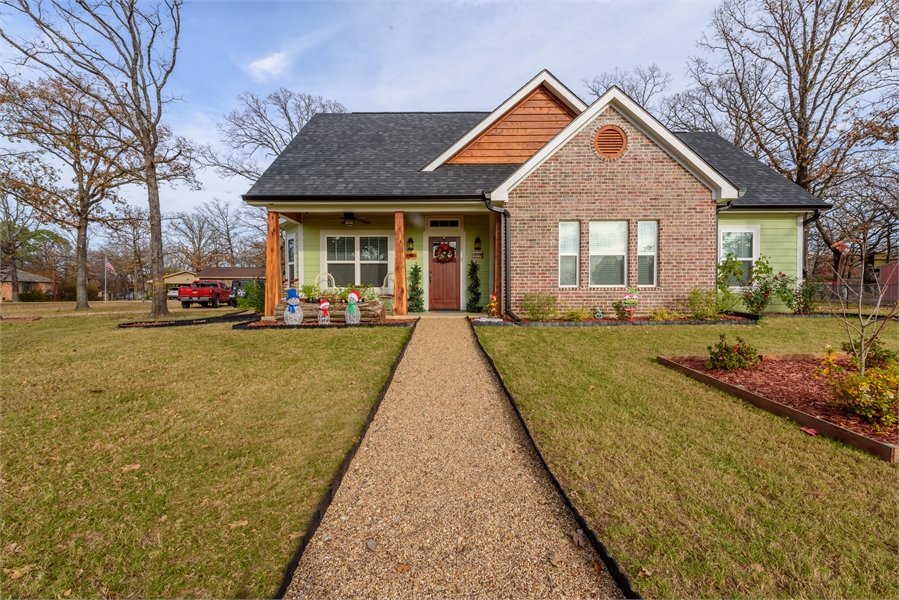

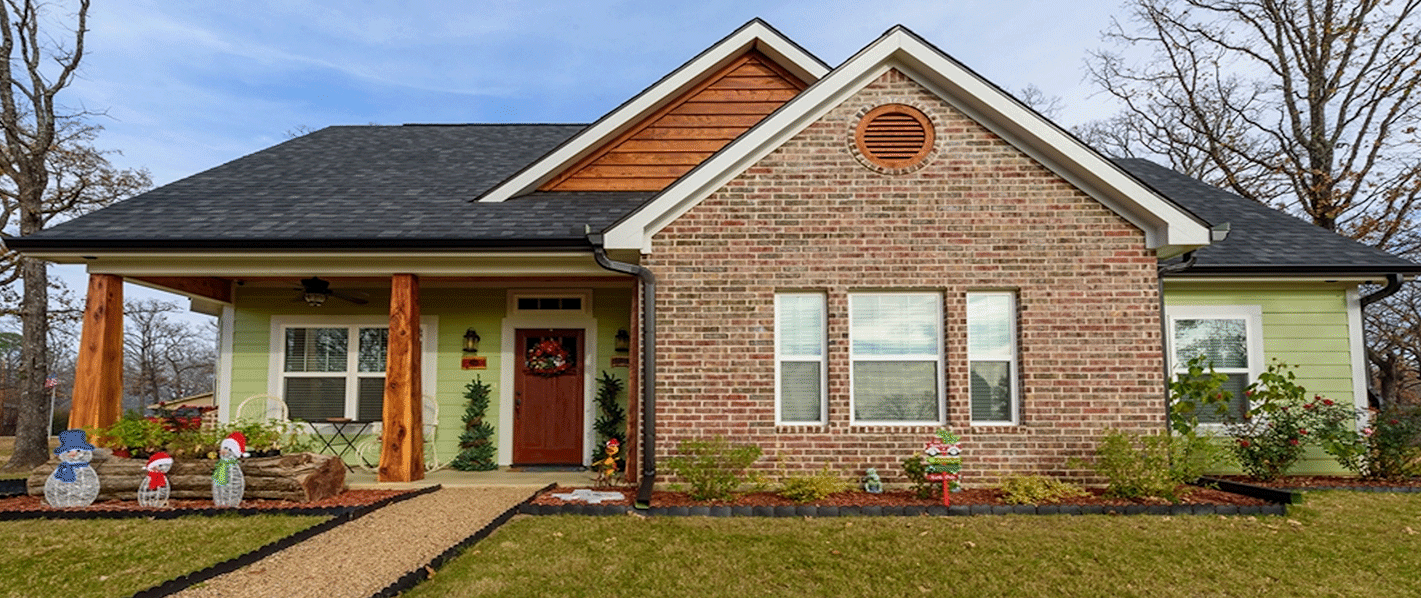

Front Exterior
Front Photograph
Front Photograph
Front Photograph

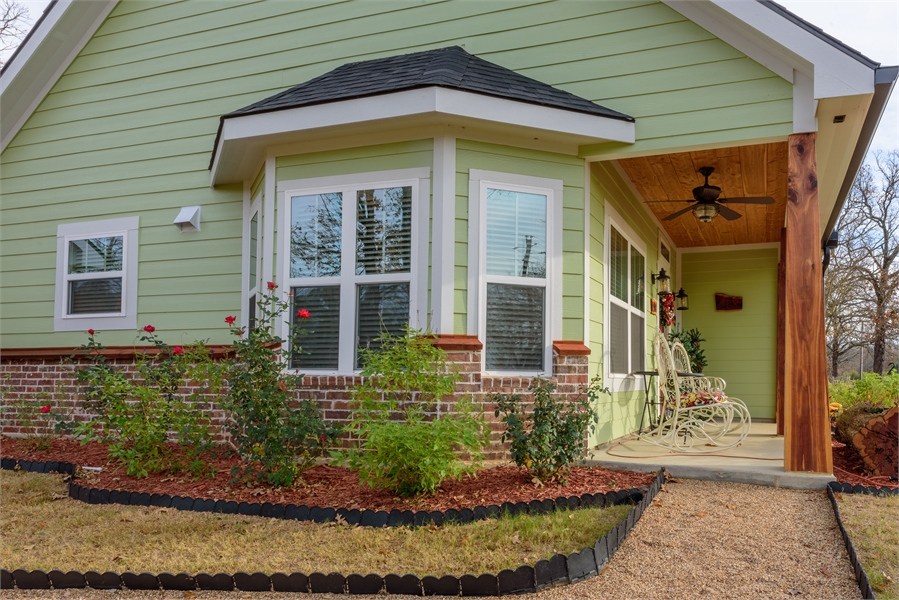

Exterior Photo
Exterior Photo
Exterior Photo

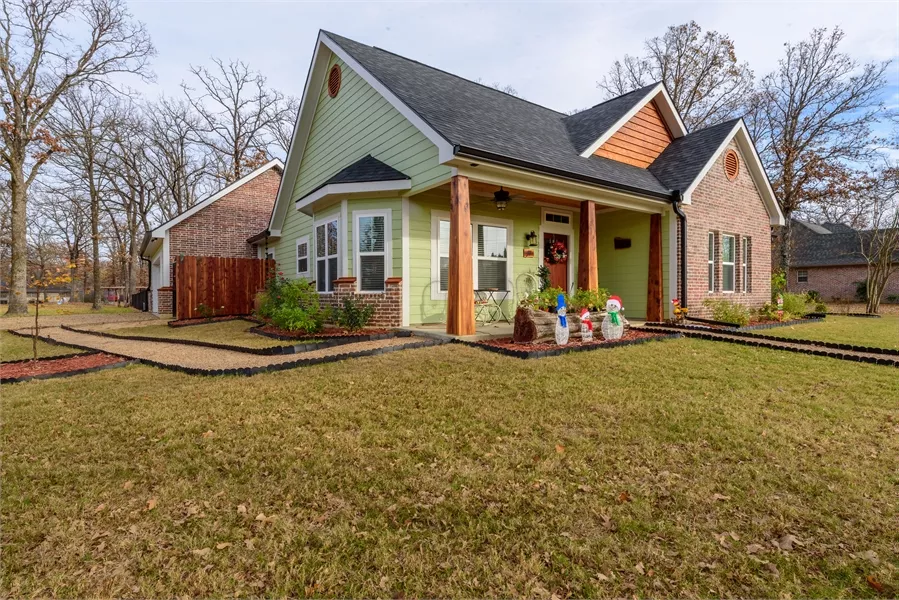

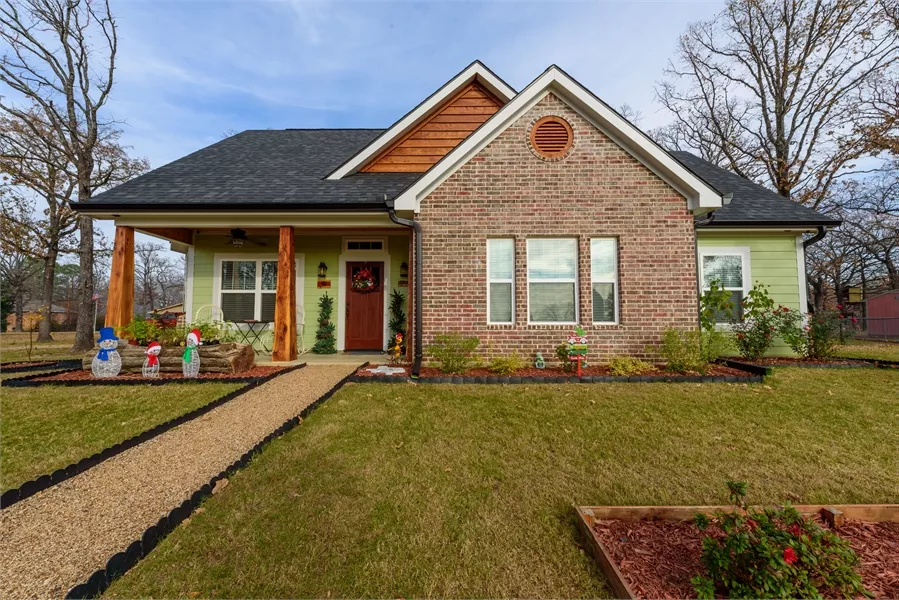

Front Exterior

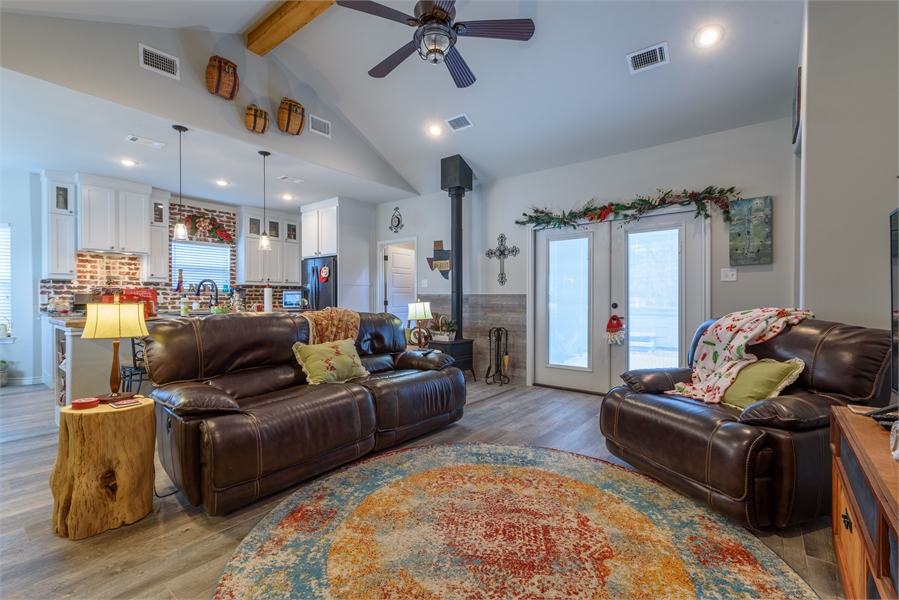

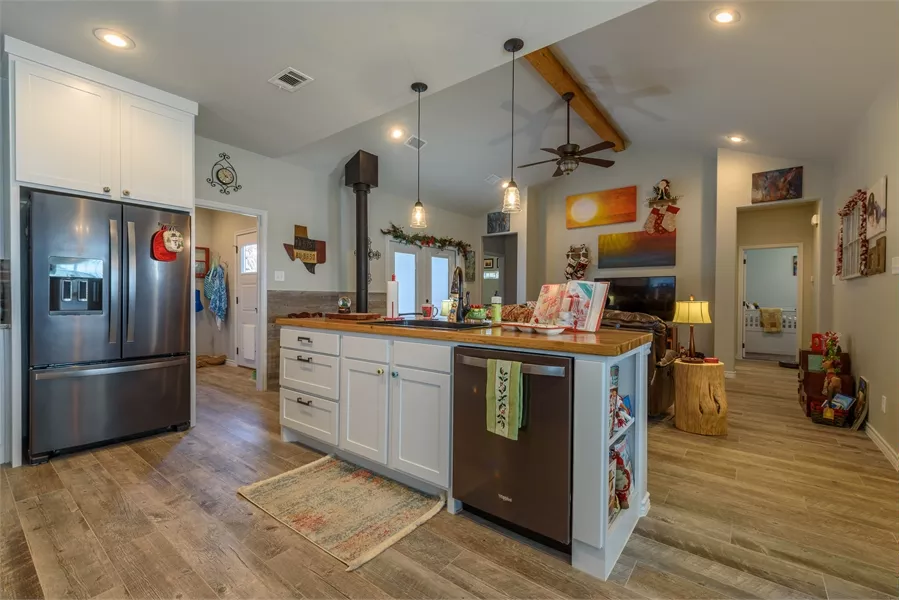

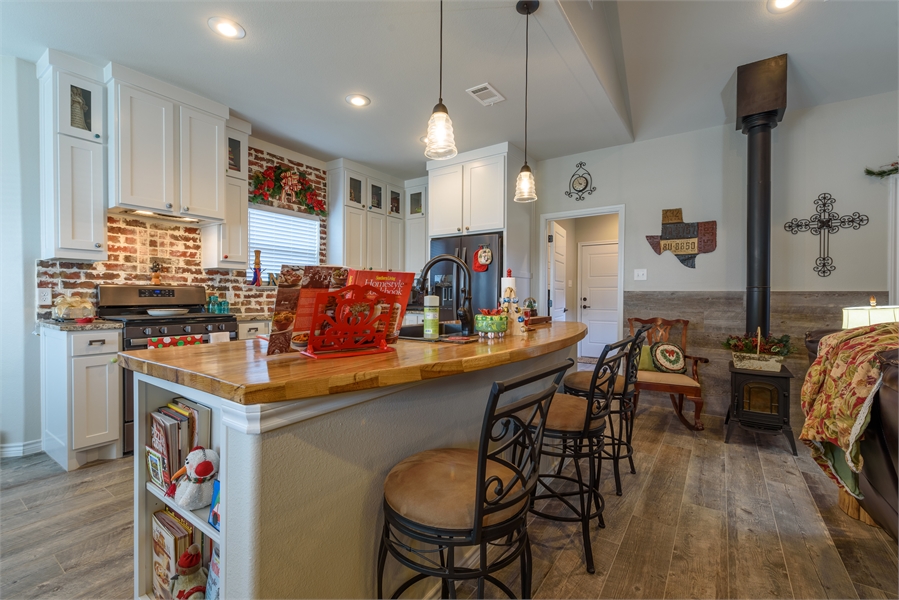

Living Room/Kitchen
Living Room/Kitchen

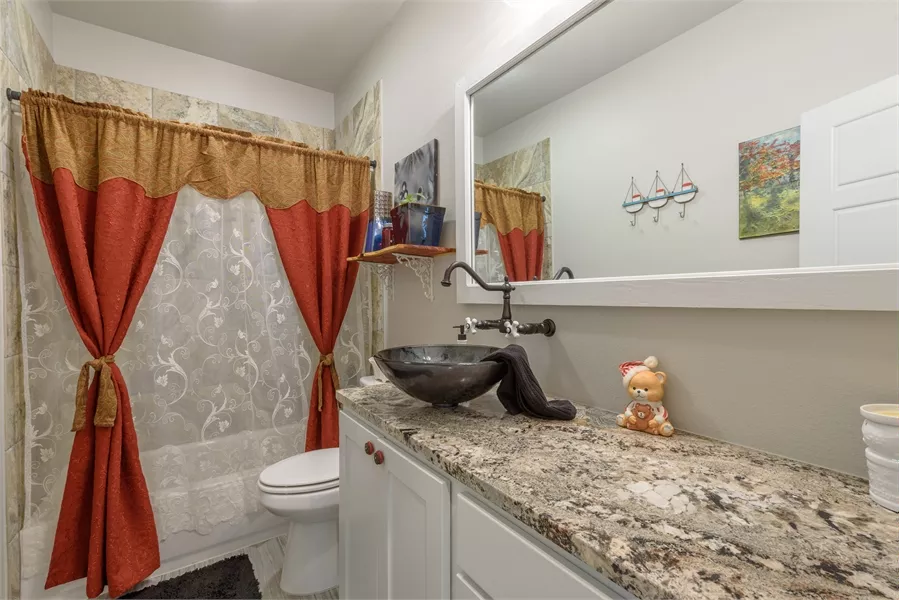

Bathroom

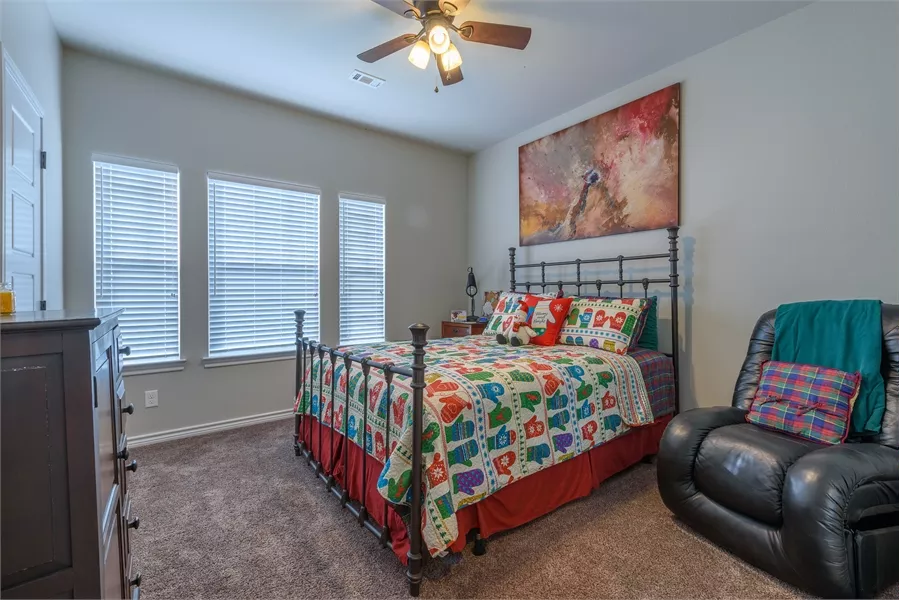

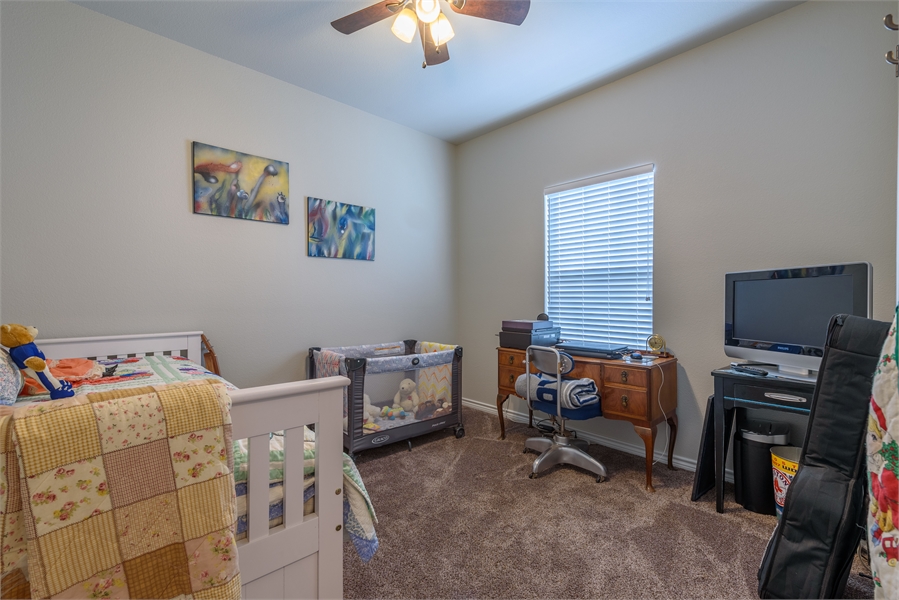

Bedroom
Bedroom

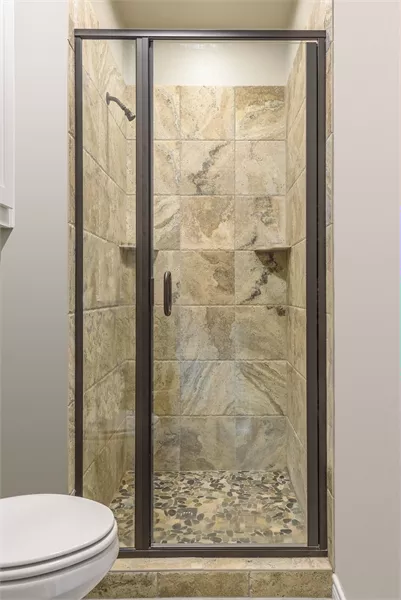

Bathroom

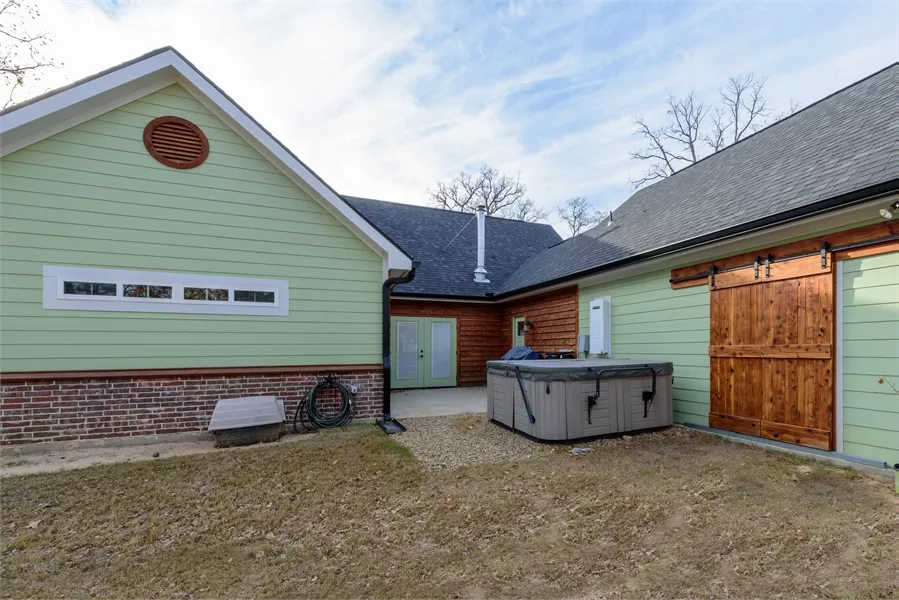

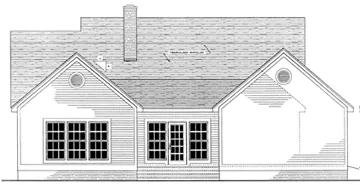

Rear Exterior

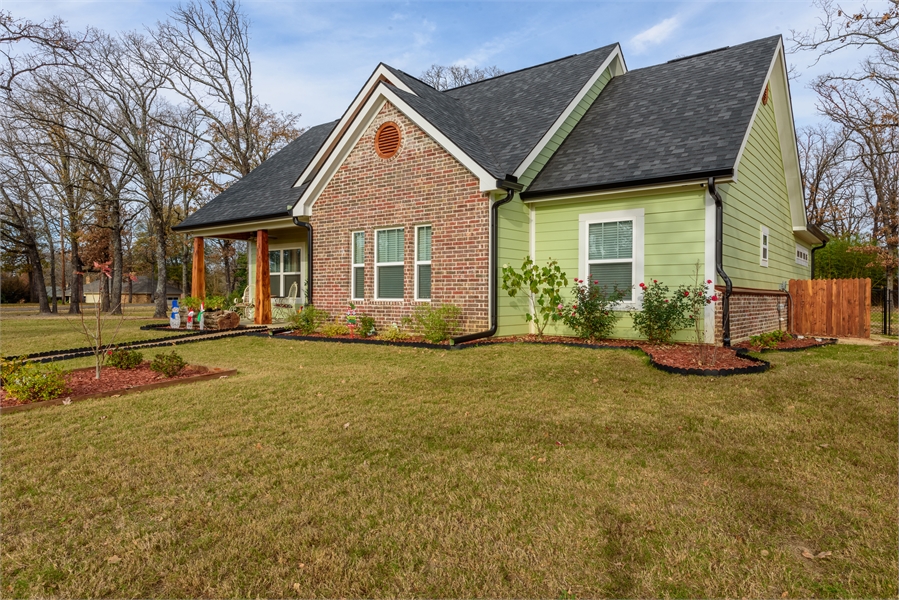

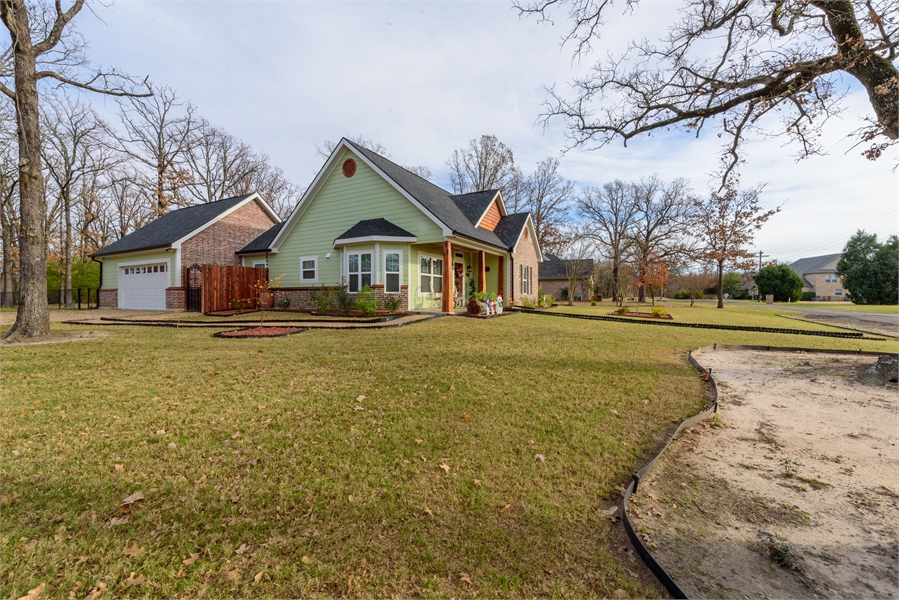

Left Side Photograph
Left Side Photograph
Left Side Photograph

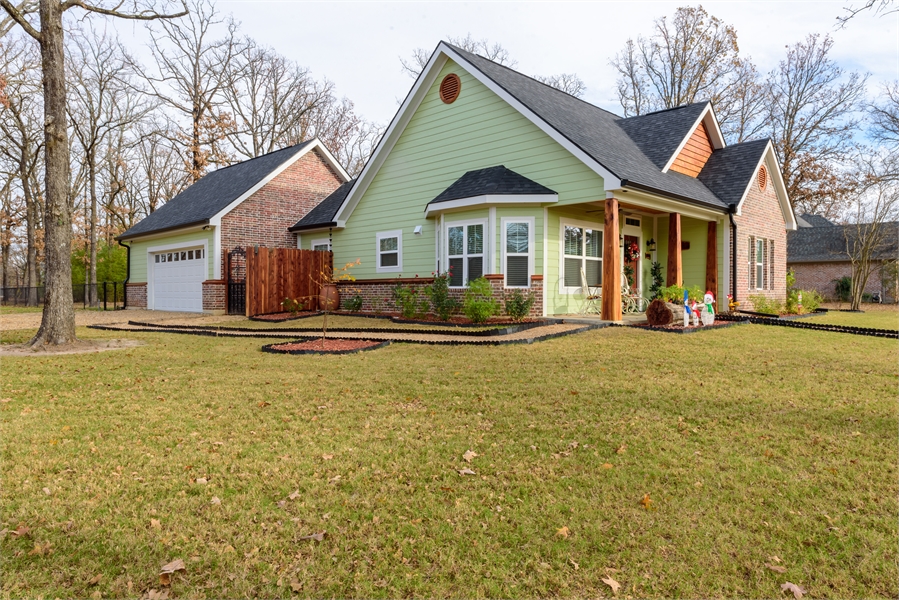

Right Side Photograph

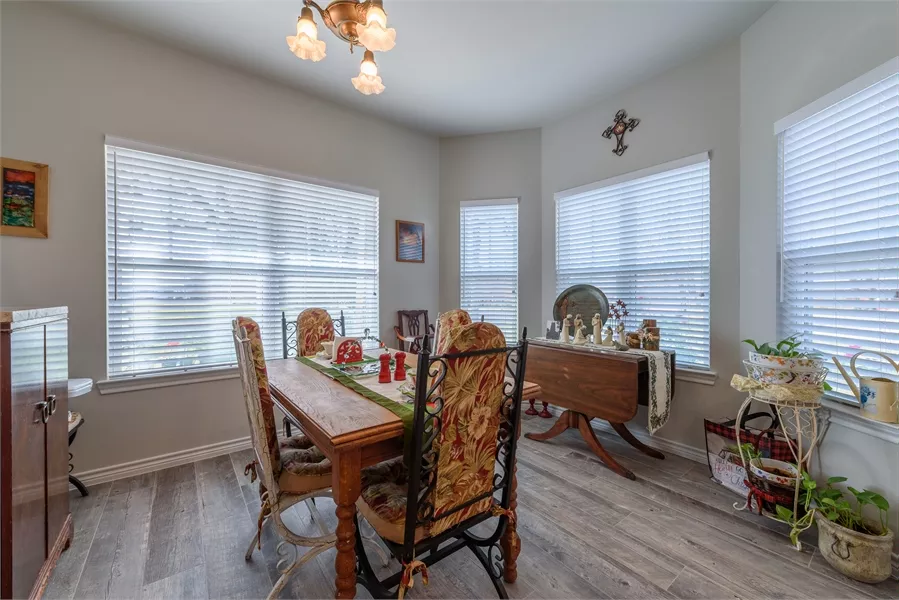

Dining Room

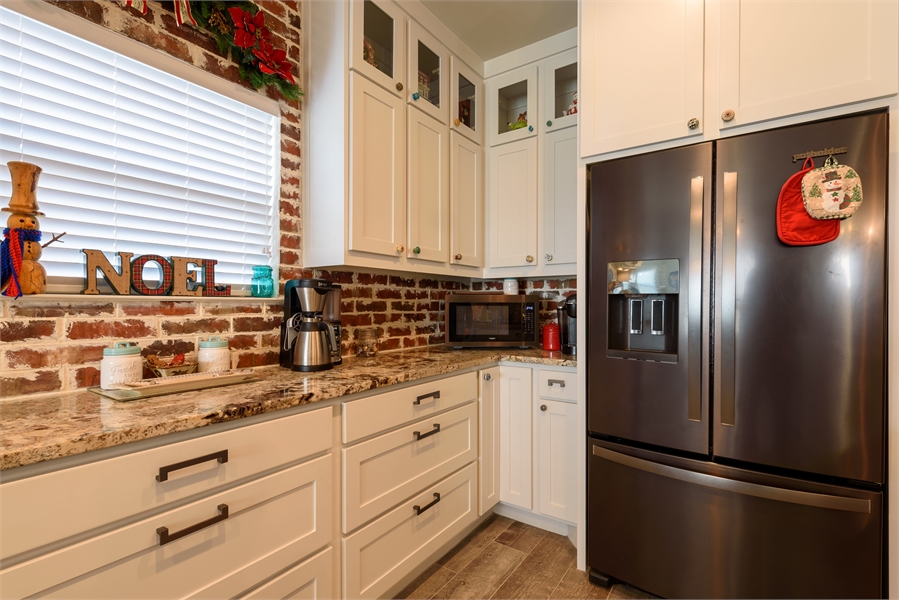

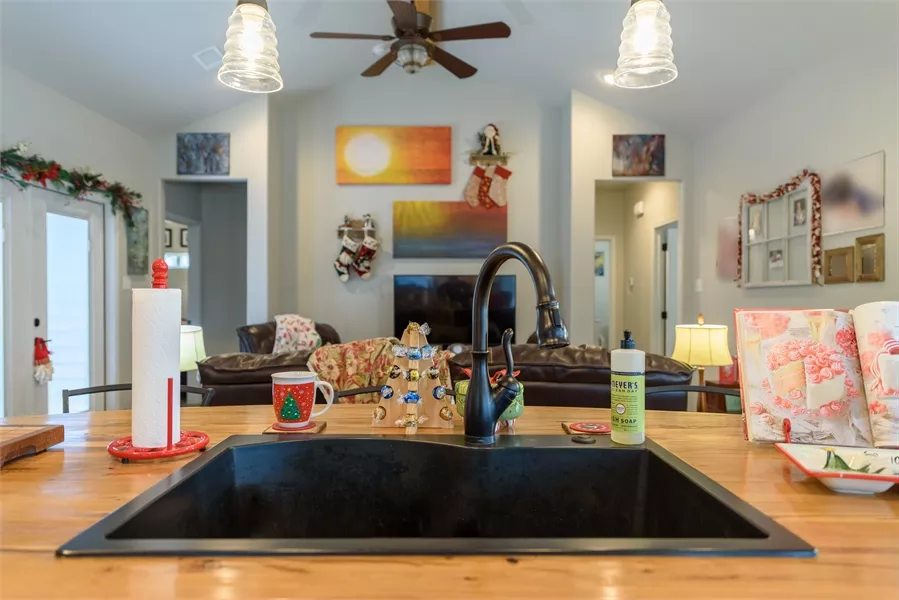

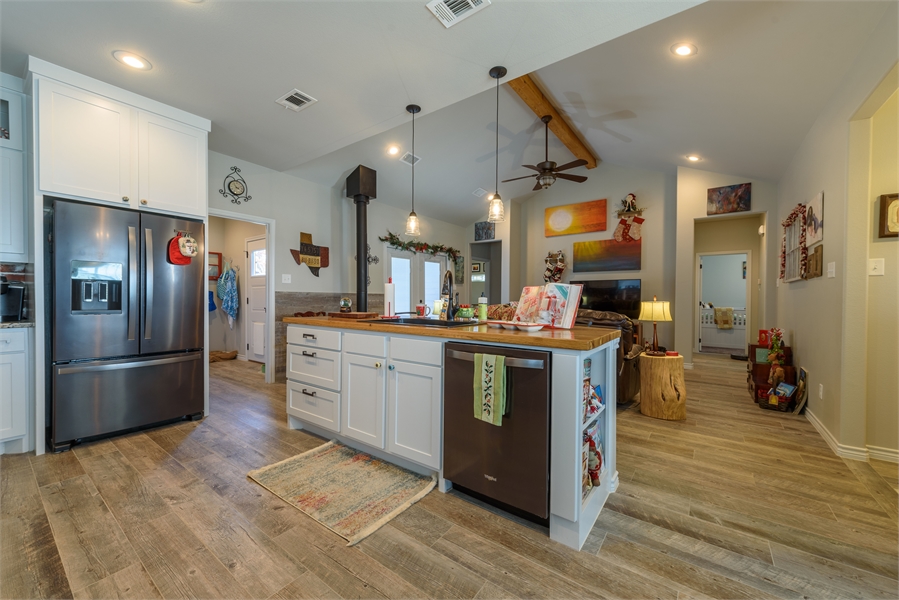

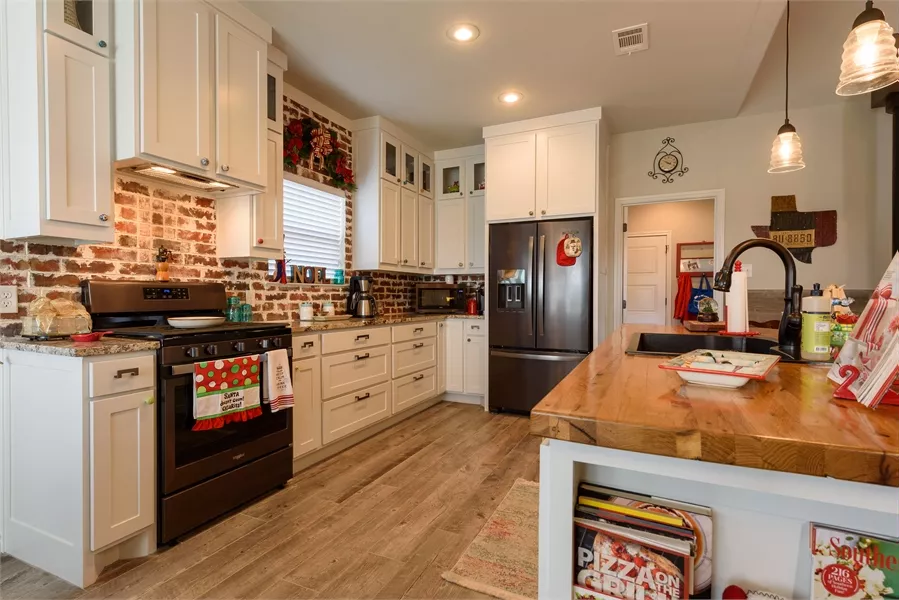

Kitchen
Kitchen
Kitchen
Kitchen
Kitchen
Kitchen

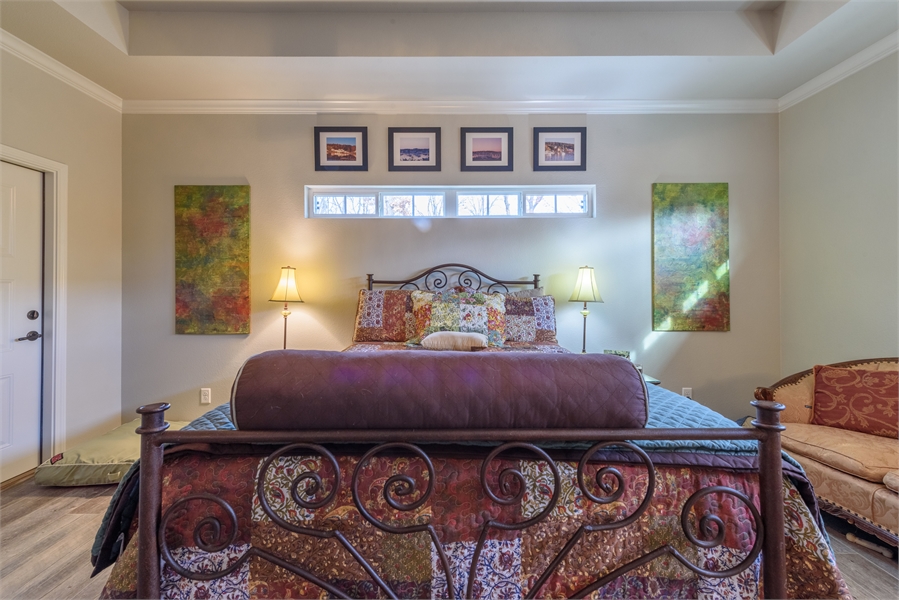

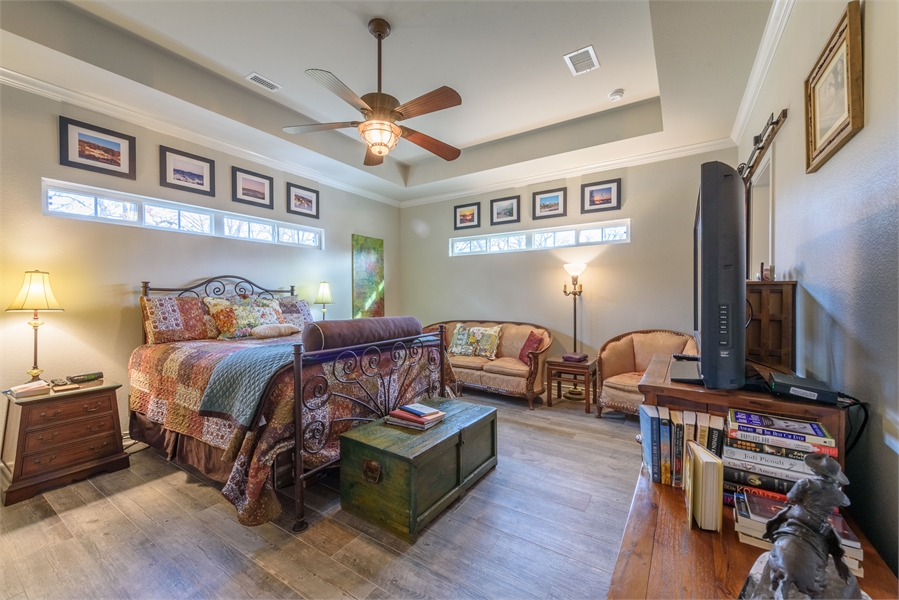

Master Bedroom
Master Bedroom
Master Bedroom

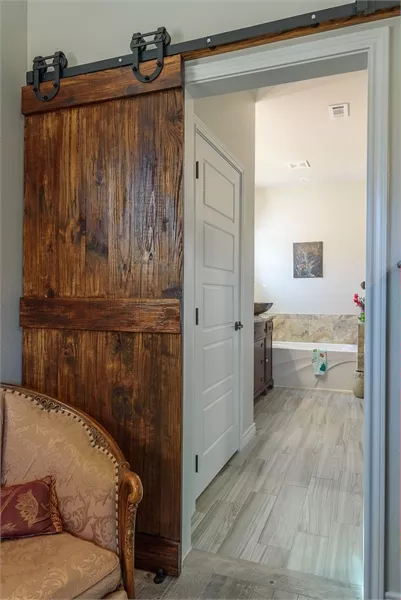

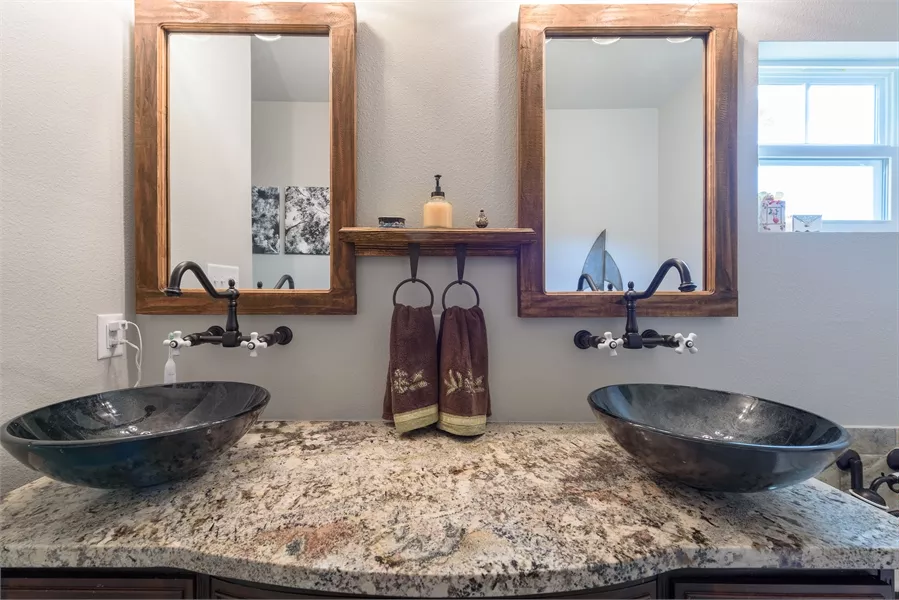

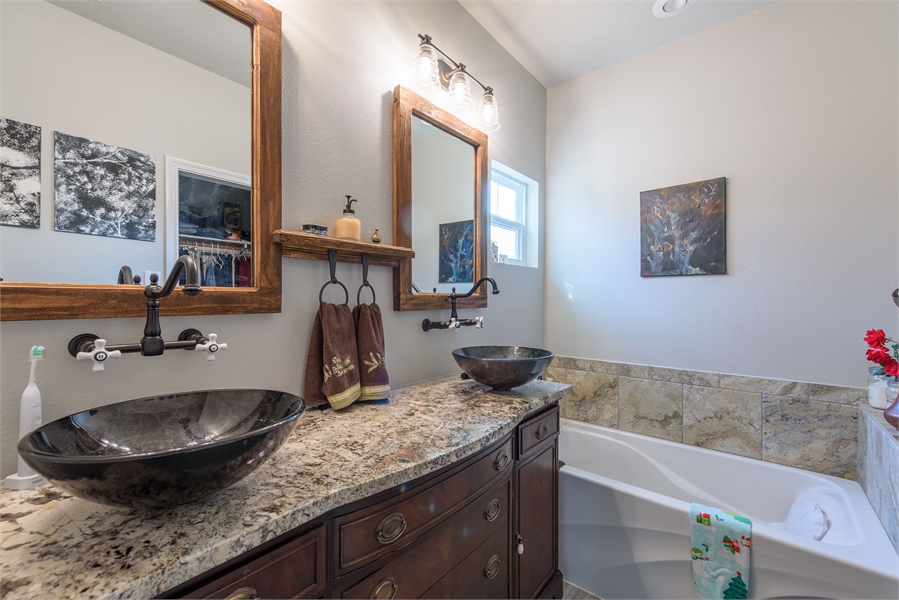

Master Bath
Master Bath

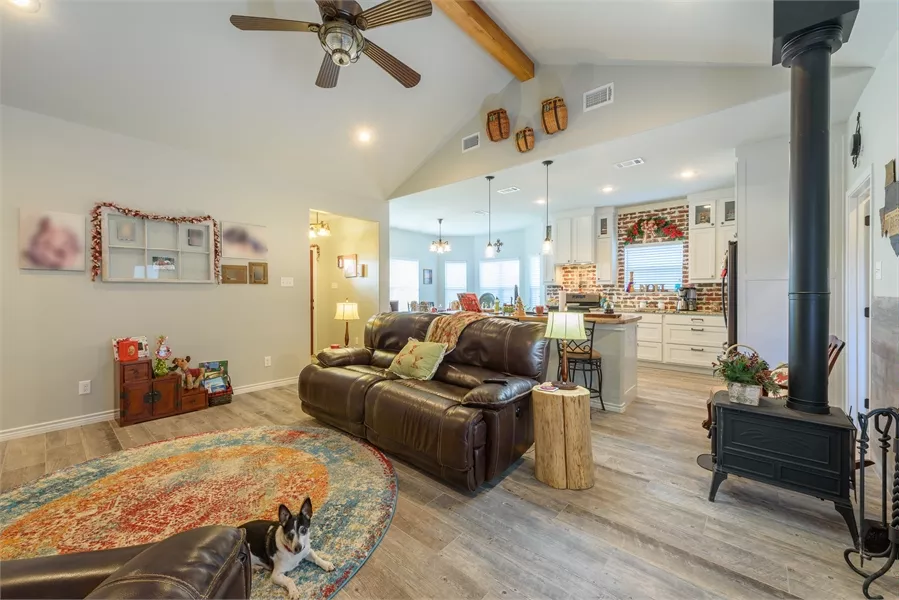

Living Room

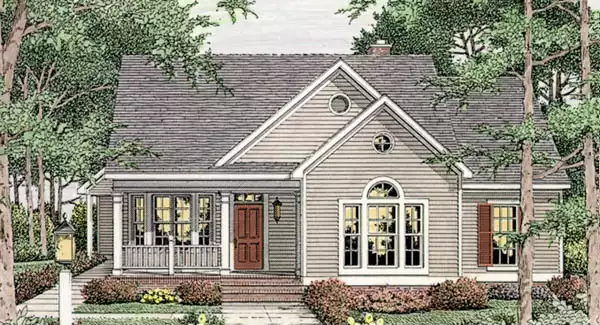

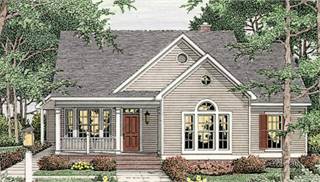

Front Rendering
First Floor Plan
© copyright by designer
Mouse over photo to pause

House Plan 3644: Somerset

Twin gables and a palladian window setting introduce this design. The living spaces are open and spacious. A large island snack bar is enhanced by columns and connects the kitchen and great room. The convenient desk space is located near the carport entrance.  Read more >

House Plan Details

Sq. Ft.
1,539
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
51' 5"
Depth
66' 6"
Select Plan Package
PDF Construction Set - Si
$1050
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

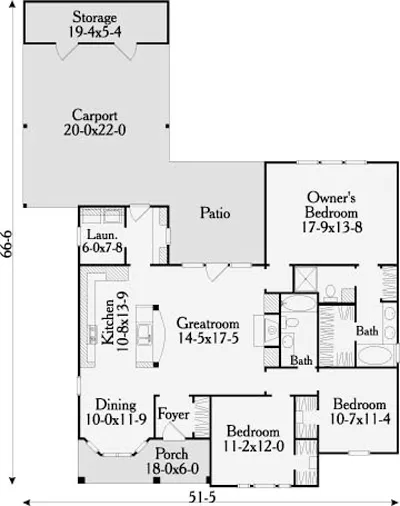

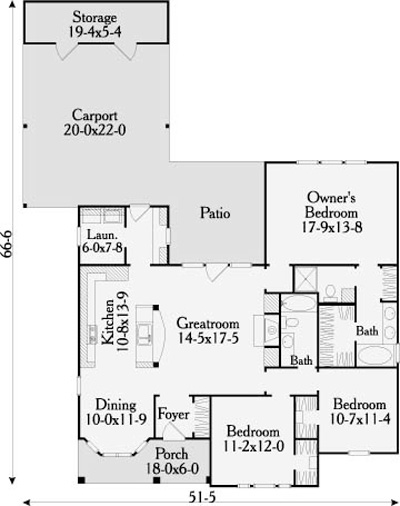

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,539
1st Floor SQ. FT.:
1,539
Bedrooms:
3
Bathrooms:
2.0
Garage:
2
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 10/12
Width:
51' 5"
Depth:
66' 6"
Height:
23' 0"
Exterior Styles:
Cottage
Country
Southern
Unheated Living Space:
Garage: 562
Porch: 93
HOME FEATURES
Bedroom Features:
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features:
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Additional Features:
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Garage Features:
Attached
Carport
Side-entry
Garage Location:
Rear
Lot Features:
Suited for corner lot
Suited for view lot
