Sq Ft
3,936 FT²

Beds
5

Baths
4

Stories
2

Garage
2

Depth
64'

Width
28'

From
$1,968.00

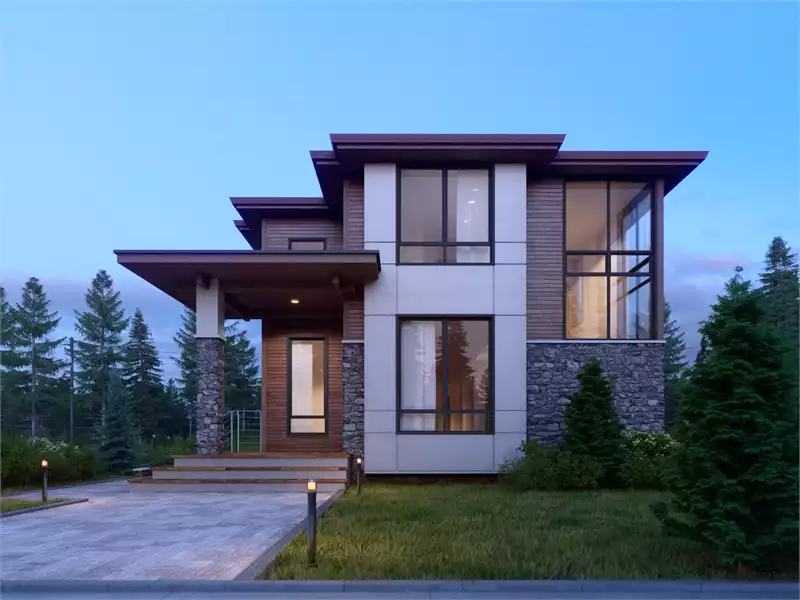

Front View

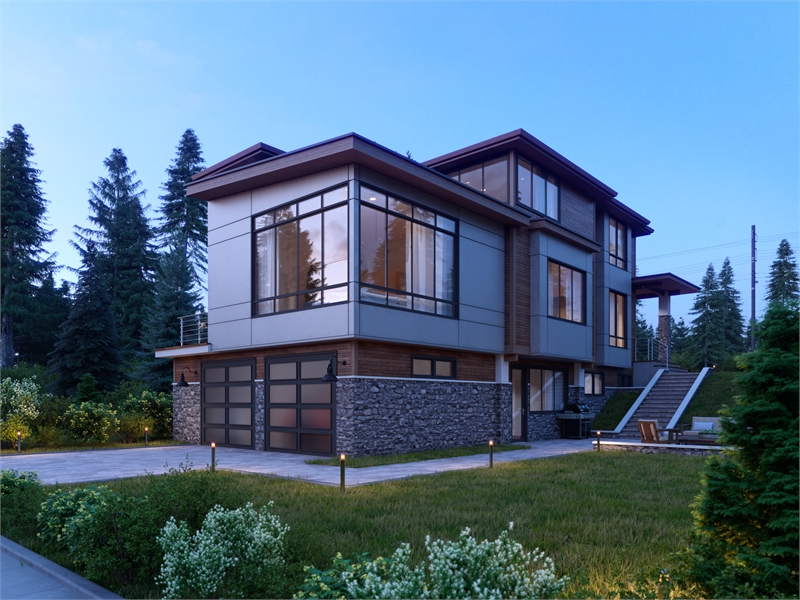

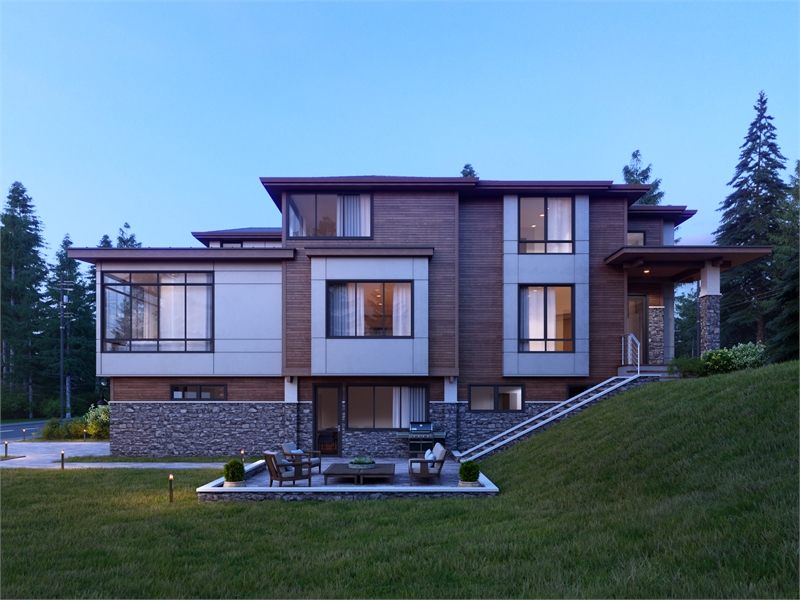

Rear View

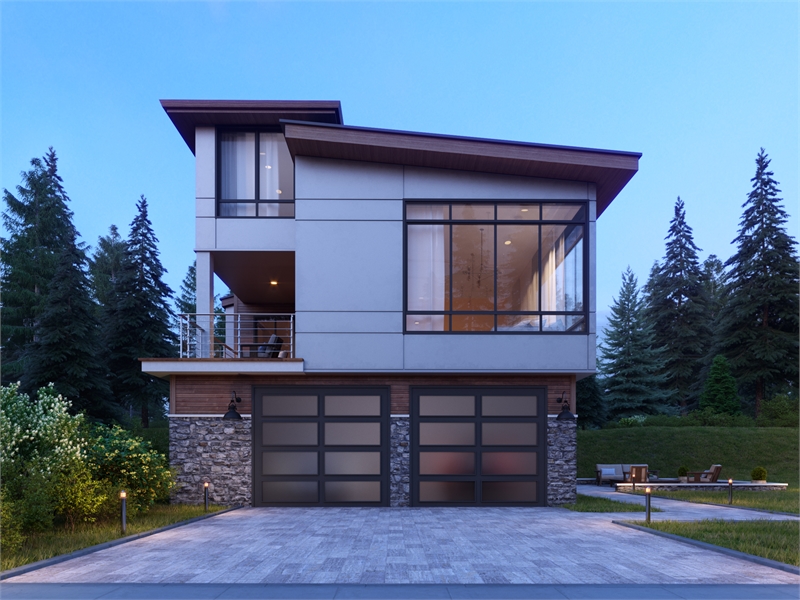

Side View

View All 4 Images | Photographs may reflect modified home

Sq Ft

3,936 FT²

From

$1,968.00

Beds

Baths

Stories

Garage

Depth

64'

Width

28'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

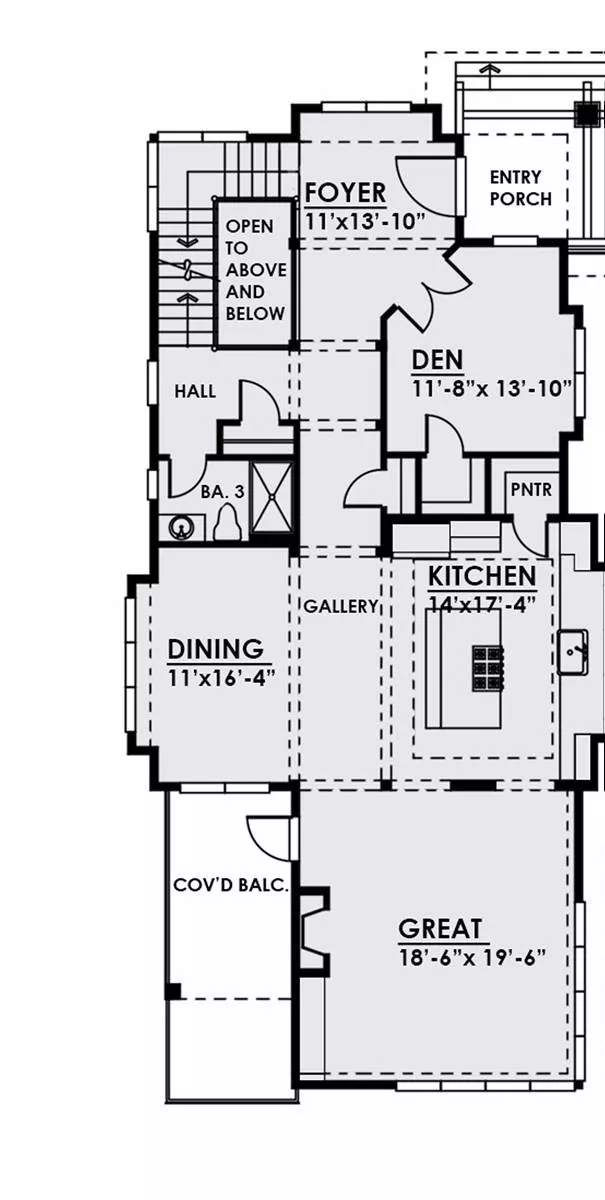

1st Floor

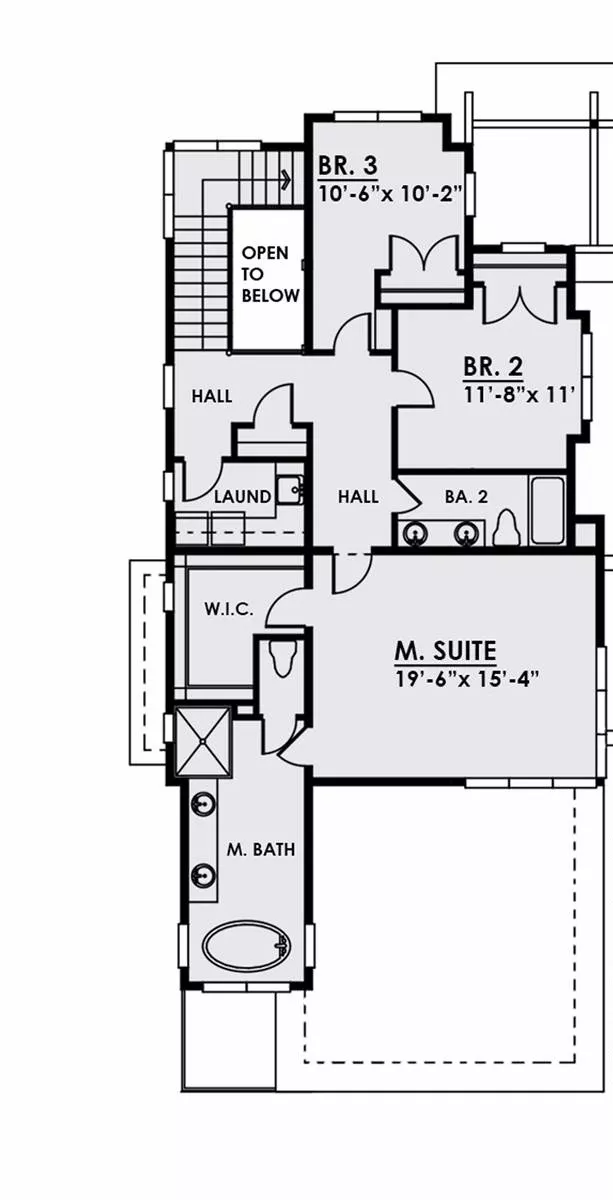

2nd Floor

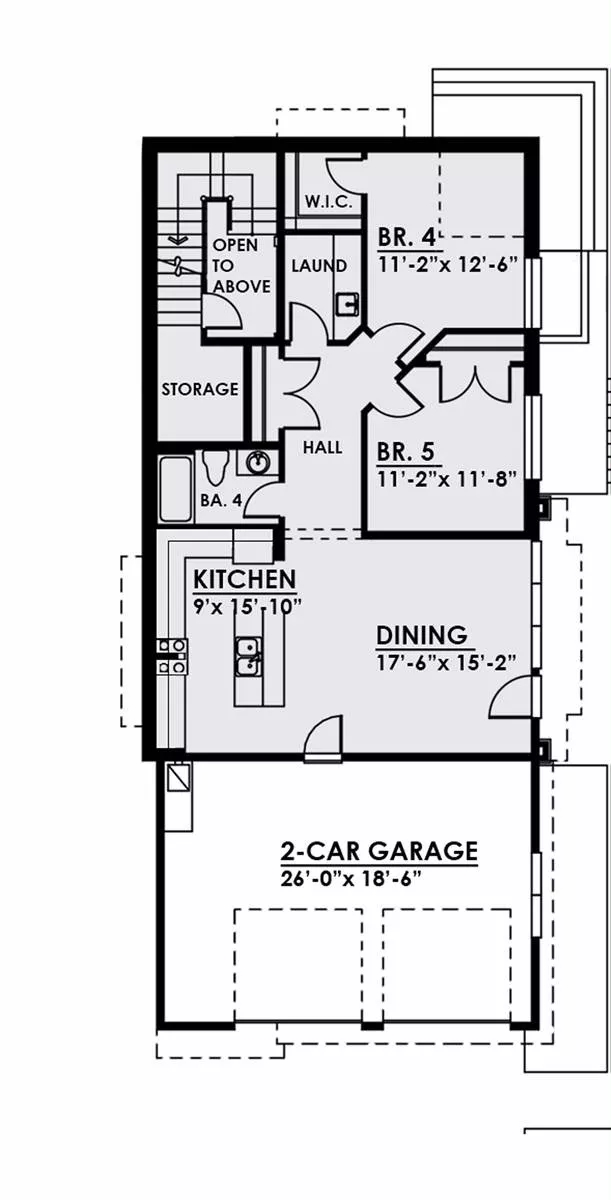

Lower Level Plan

1st Floor

2nd Floor

Lower Level Plan

About This Plan

Suited for practically any size lot, this stunning contemporary plan focuses on building up rather than out. A welcoming 3-story design is enhanced by 3,936 square feet of living space, as well as 5 beds and 4 bathrooms. The lowest level even features a 2-car drive-under garage, full of convenient storage and functionality. Perfect for guests or even renters, the lowest level also features a full guest house, complete with a kitchen, dining and living room, full bedroom suite, and even its own private entrance! Th main floor has all of the living spaces for the rest of the home, including an open layout which joins the gourmet kitchen and stunning great room with a private home office/den. Finally, move to the upper floor to discover the rest of the bedrooms, including a wonderfully spacious master bed and bath.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Deck

Foundation Options

Crawlspace

Lot Options

Suited for sloping lot

Additional features

Dining Room
Foyer
Great Room
Home Office
Laundry 2nd Fl

Garage Location

Rear

Garage Options

Attached
Drive-under

3,936 Ft

Total Heated

1,534 Ft

1st Floor

1,235 Ft

2nd Floor

1,166 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

28' 0"

Width

64' 0"

Depth

36' 6"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

9' 0"

Lower Floor Ceiling

2x6

Framing

Truss

Roof Framing

5/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

481 Ft

Garage

104 Ft

Porch

178 Ft

Deck

Exterior Styles

Contemporary

Modern

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,968

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,968

$2,268

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,268

$2,418

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$2,418

$3,739

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,739

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
