Home
> THD-3454
Save |
Reverse Plan
|
Print This Plan

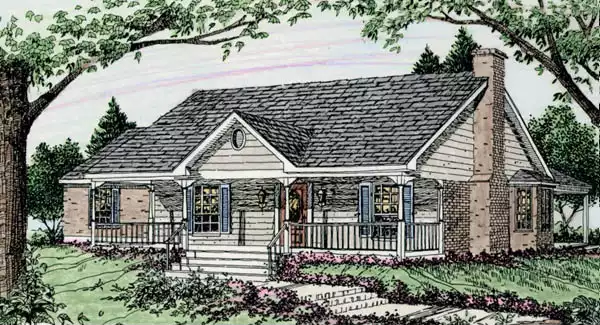

Front Rendering

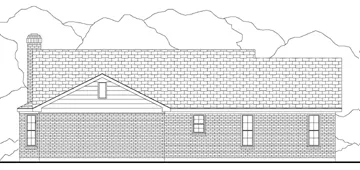

Rear Exterior

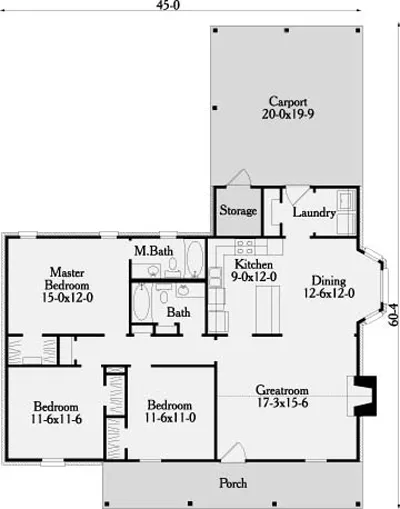

First Floor Plan
See all 2 photos
(photographs may reflect modified homes)
© copyright by designer
Mouse over photo to pause
House Plan 3454: Smithfield
Open living spaces and a cathedral ceiling in the great room enhance the spacious feeling of this home. The snack bar allows additional seating space. A convenient pantry/closet is located at the carport entrance.
See Plan Details
See Architect Preferred Products For This Plan >
House Plan Details
Sq. Ft.
1,385
Beds
3
Baths
2.0
Stories
1
Garages
0
Width
48' 0"
Depth
60' 4"
Modify This
Home Plan
Detailed Build
Cost Estimator
For assistance,
email
,
live chat
, or call us at
866-214-2242
What's Included?
Select Plan Package
PDF Construction Set - Si
$950
PDF Construction Set - Single Build
PDFs NOW!™
$950
Five Sets - Minimum Construction Package
$1020
CAD Files
$1850
Select Foundation Options
$0
Basement
Basement
PDFs NOW!™
$0
A below grade (full in-ground) unfinished basement foundation constructed with 8" or 12" reinforced concreate block walls with a 4" poured concrete slab as the basement floor. Pipe columns support the beams and are placed under load bearing walls. The basement square footage is typically the same as the main floor.
Crawl Space
PDFs NOW!™
$0
An above grade foundation with block and masonry on the exterior with wood beams and concrete block for interior support completed by wood floor joists. This foundation does not require a level building site.
Slab
PDFs NOW!™
$0
This foundation requires a level building pad. It consists of 4" thick poured concrete with interior footings placed under load bearing walls. A slab foundation can be built at normal grade or to give the home a raised look use reinforced concrete blocks with compacted fill dirt then the standard 4" poured concrete. The majority of our designs include details for this type of slab construction.
Best Price Guarantee*
$0
Optional Add-Ons
Optional Add-Ons
ENERGY STAR® Approved
$175
Additional Sets
$55
Additional sets may be ordered within 90 days of your initial purchase.
Materials List
$65
Provides information regarding the quantity and sizes of materials necessary for the construction of the home. It does not include finishing materials such as plumbing fixtures, electrical fixtures, heating and air conditioning, interior finish, etc. The materials list offers a convenient way to make a rough determination of the cost of materials involved. Due to the variance in building practices, it is strongly suggested the builder review and adjust any materials prior to construction.
Right Reading Reverse or Full ...
PDFs NOW!™
$255
Full reverse plans are redrawn with all the plans and elevations fully reversed with all lettering and text read correctly instead of mirrored.
2x6 Wall Conversion
$255
Modify plan from 2x4 to 2x6 wall construction. This change will result in a more energy efficient home. NOTE: The 2" will be taken to the inside with this conversion. If an alternate option is preferred, a consultation with the modification group will be required. Please contact us at 1-866-214-2242 Shipping can be delayed approximately 3-4 days with this option. Materials list purchases (if available) with this option will not reflect the 2x6 conversion.
Subtotal:
$0
SEE DETAILED PLAN OPTIONS
If a foundation or optional add-on is not listed, please
live chat
,
email
or call for availability.
What You Should Know Before Buying! >
View Sample Construction Drawing >
PLAN IMAGES
Add to Favorites
First Floor Plan
First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
1,385
1st Floor SQ. FT.:
1,385
Bedrooms:
3
Bathrooms:
2.0
Garage:
0
Stories:
1
Main Ceiling Height:
8'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 7/12
Width:
48' 0"
Depth:
60' 4"
Height:
17' 0"
Exterior Styles:
Cottage
Country
Traditional
Unheated Living Space:
Garage: 420
Porch: 195
HOME FEATURES
Bedroom Features:
Walk-in Closet
Kitchen Features:
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Additional Features:
Fireplace
Great Room
Open Floor Plan
Storage Space
Vaulted Ceilings
Garage Features:
Carport
Garage Location:
Lot Features:
Suited for corner lot
Our Guarantee
Only the highest quality plans
Int’l Residential Code Compliant
Full structural details on all plans
Best plan price guarantee
Free modification Estimates
Builder-ready construction drawings
Expert advice from leading designers
PDFs NOW!™ plans delivered in minutes
100% satisfaction guarantee
Free Home Building Organizer
