House Plan 9045: Shelvin

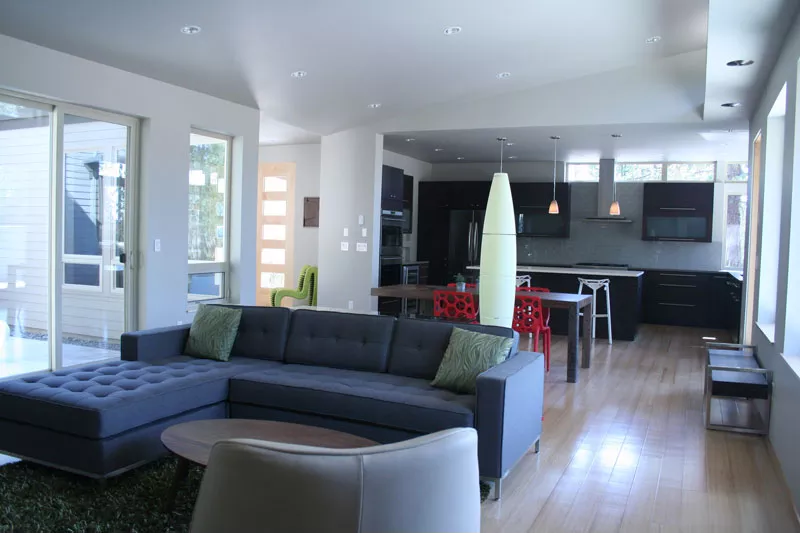

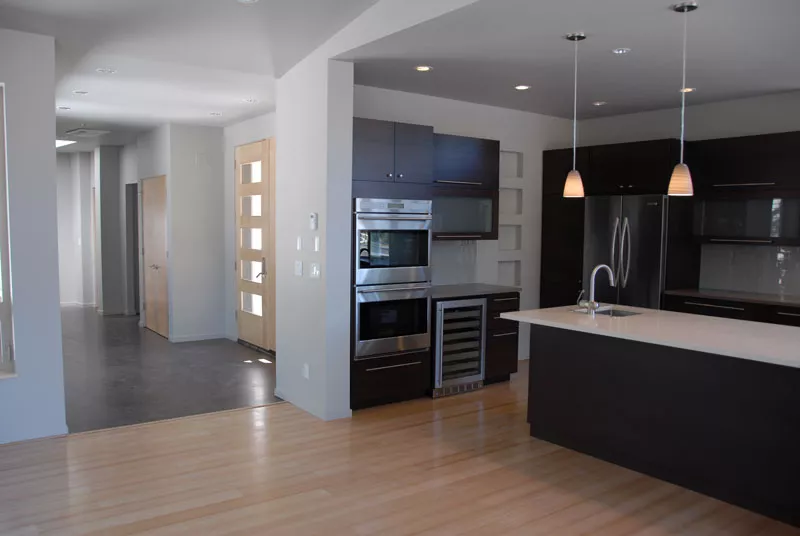

As you pass through the foyer you will see three picture windows that look out into a central courtyard space and a coat closet located near the door.To the left there is an open living space that includes a kitchen and dining area.  Read more >

House Plan Details

Sq. Ft.
2,331
Beds
2
Baths
2.0
Stories
1
Garages
2
Width
72' 5"
Depth
100' 0"
Select Plan Package
PDF
$1695
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

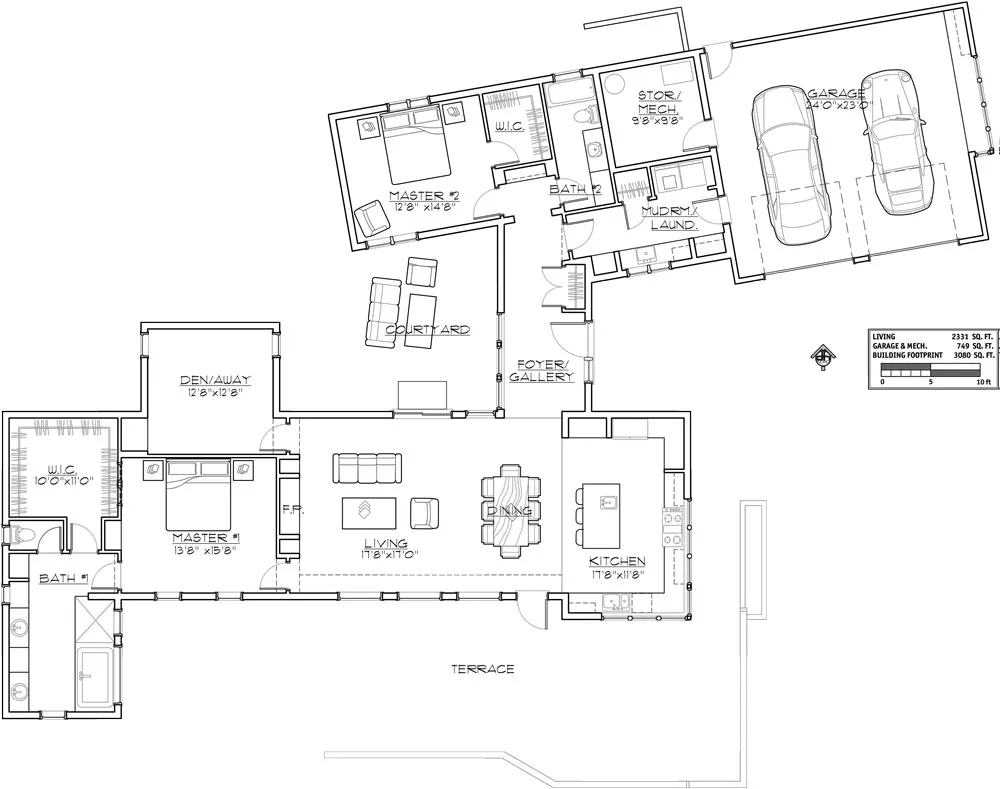

1st Floor Plan

1st Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,331
1st Floor SQ. FT.:
2,331
Bedrooms:
2
Bathrooms:
2.0
Garage:
2
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
'
Framing:
Other
Roof Framing:
Stick
Roof Pitch:
Primary: 2:12
Secondary: 3:12
Width:
72' 5"
Height:
14' 6"
Depth:
100' 0"
Exterior Styles:
Contemporary
Modern
Unheated Living Space:
Garage: 749
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Kitchen Features:
Kitchen Island
Peninsula / Eating Bar
Additonal Features:
Exercise Room
Fireplace
Home Office
Laundry 1st Fl
Mud Room
Open Floor Plan
Garage Features:
Attached
Side-entry
Garage Location:
Side
Lot Features:
Suited for corner lot
Suited for view lot

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer

Questions & Answers

Have questions about this plan?
Q.What is the framing for this home?

A.2 x 8

Q.Can this home be designed as passive solar?

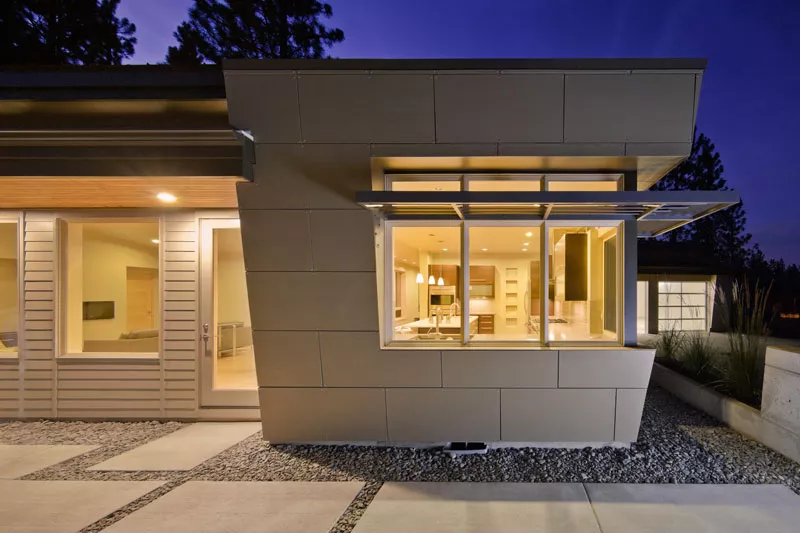

A.Yes. To maximize its passive solar design, the front of this house should face East (or West, if the house is reversed). The Shevlin features ample south facing windows with purpose–designed roof overhangs, including custom aluminum solar shades, to let the sun's heat in during cooler months, and block it in the warmer months. The switch–operated clerestory windows provide day lighting and can be opened to cool the home at night. Cool air enters through the low windows and warm air exits at high windows, encouraging rapid cooling.
