HOUSE PLANS SALE
START AT $850.00
SQ FT
1,775
BEDS
3
BATHS
2.5
STORIES
1.5
CARS
2
WIDTH
76'
DEPTH
48'
© copyright by designer

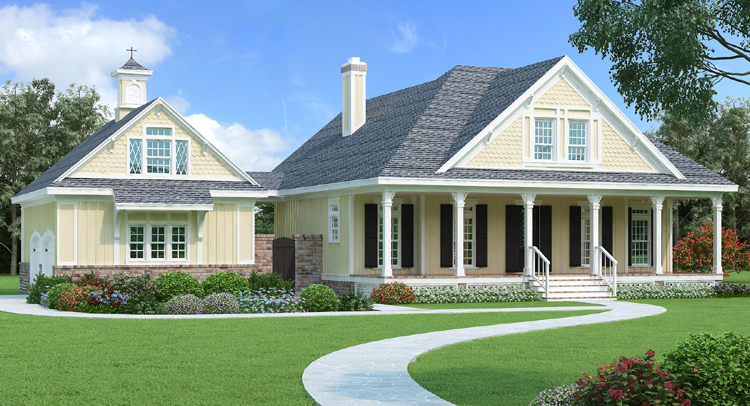

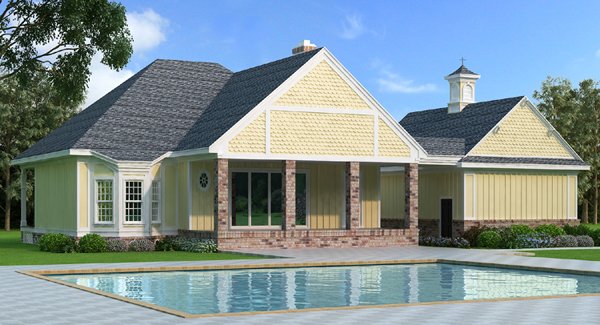

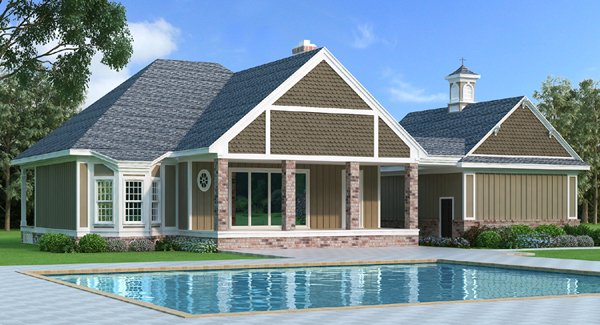

Photographs may reflect modified home | View all 8 images
SQ FT
1,775
BEDS
3
BATHS
2.5
STORIES
1.5
CARS
2

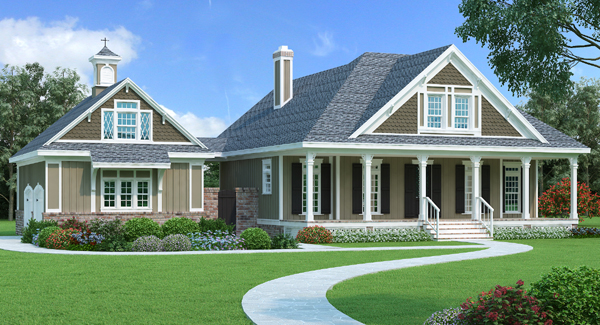

House Plan 1163: Shady Oaks Manor - 1723

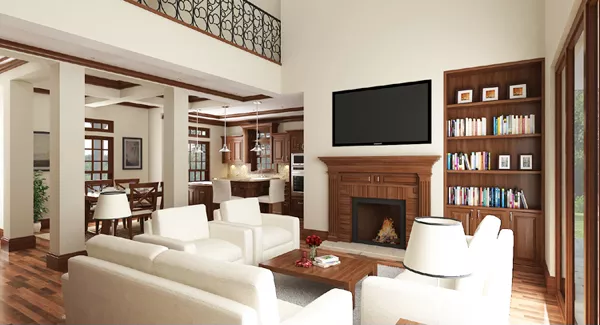

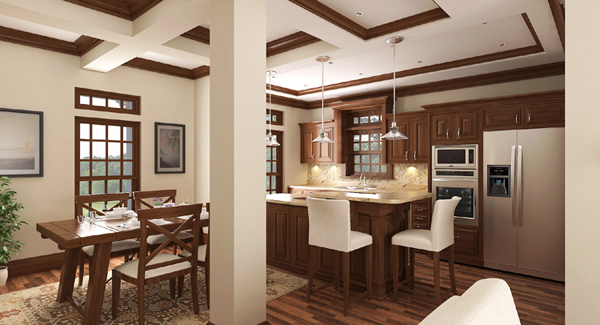

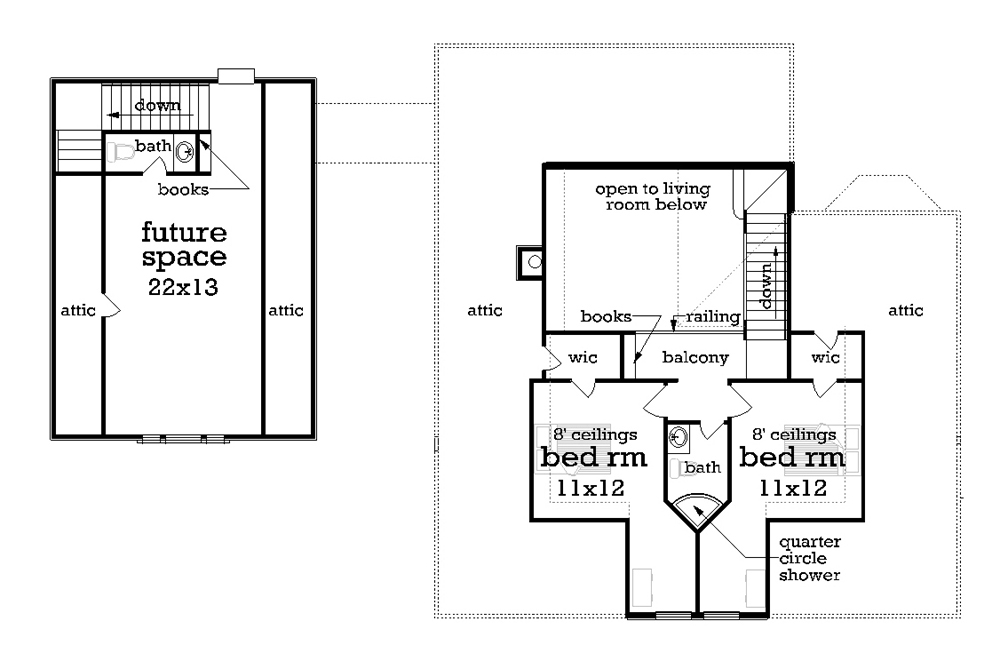

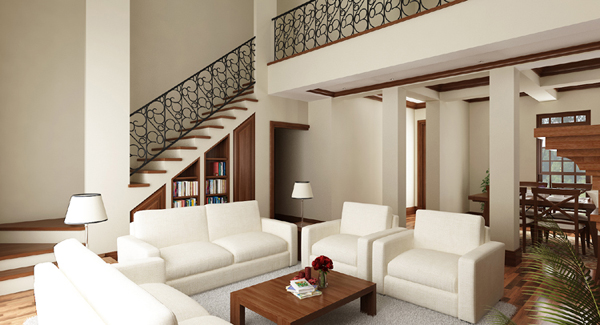

This 3 bedroom, 2.5 bath home is designed to cut the cost of heating and cooling in half. The construction documents contain dozens of energy saving features that cost very little extra but will save enormous amounts of energy over the life of the home. Some of the energy saving features includes 2x6 exterior walls, modified raised plate to allow 12' of ceiling insulation, insulated doors and windows, duct work located to insure no heat loss or gain and a host of other features. The living room has sloped ceilings to the upper level which allows the upper level balcony to have a view of the living room below. The upper level balcony has built in book shelves for the students in the family. There are also built in book shelves in the living room. The kitchen is fully appointed and has an island with a raised bar, book shelves and a trash compactor. The adjacent utility room has a laundry sink and a large pantry. The master suite bath has an appliance garage, glass shower, whirlpool tub, private toilet and dual sink vanity. The master closet, with dual clothes rods, has 32" of hanging space. The dining room has a coffered ceiling and it is open to the kitchen and living room. The front and rear porches feature beamed ceilings with beaded board ceiling finish. The garage is a man's delight with a built-in work bench, tons of storage and a large future room above which includes a half bath. With large front and rear porches, this is an excellent home to sit and relax and leave your cares behind.

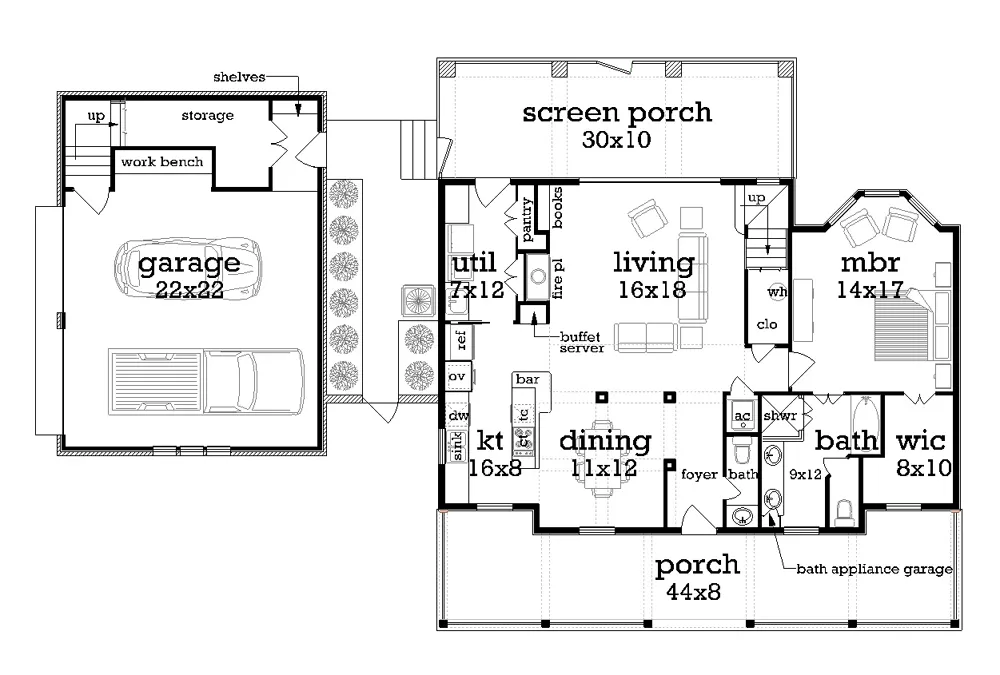

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
PDFs NOW!™
Digital set of plans for bidding purposes only
$800
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
PDFs NOW!™
Most recommended package
$1,000
4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

4 Printed Sets
Four printed sets of house plans
$1,085
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,130
8 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

8 Printed Sets + PDF
PDFs NOW!™
Digital plans plus 8 printed sets
$1,240
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets
Eight printed sets of house plans
$1,240
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
2D electronic editable computer files
$1,900
 Need To Reverse Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$125
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Kitchen Island
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Additional features
Bonus Room
Dining Room
Fireplace
Foyer
Laundry 1st Fl
Loft / Balcony
Mud Room
Open Floor Plan
Rec Room
Storage Space
Unfinished Space
Vaulted Ceilings
Workshop
Exterior features
Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Screened Porch/Sunroom
Wraparound Porch
Garage Location
Side
Garage Options
Attached
Side-entry
With Living Space

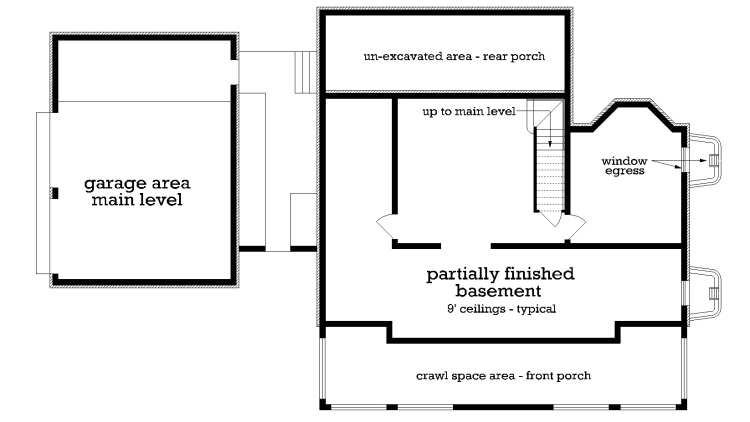

Foundation Options
Basement
Crawlspace
Slab
Lot Options
Suited for corner lot
Suited for view lot

Hide Plan Features
Details:
View All Plan Details
3,119 Ft
2
Total Structure:
1,775 Ft
2
Total Heated:
1,253 Ft
2
1st Floor:
522 Ft
2
2nd Floor:
3
Bedrooms:
2.5
Bathrooms:
2
Garage:
1.5
Stories:
76' 0"
Width:
48' 0"
Depth:
26' 0"
Height:
10'' 0"
Main Floor Ceiling:
8'' 0"
Upper Floor Ceiling:
2x6
Framing:
Stick
Roof Framing:
10:12
Primary Roof Pitch:
Single
Dwelling Number:
1st Floor
Bonus Access:
Unheated Living Space
484 Ft
2
Garage:
176 Ft
2
Storage:
684 Ft
2
Porch:
369 Ft
2
Bonus Room:
Exterior Styles
Cottage
Southern
Collections
Florida
Old House Classics
Open Floor Plan
Outdoor Living
Split Bedroom

Hide Plan Details
