Recently Viewed Plans | Advanced Plan Search

Sq Ft
2,861 FT²

Bed
3

Bath
2.5

Stories
2

Garage
2

Depth
52'

Width
30'

On Sale
$2,757.40
$3,244.00

Front Rendering

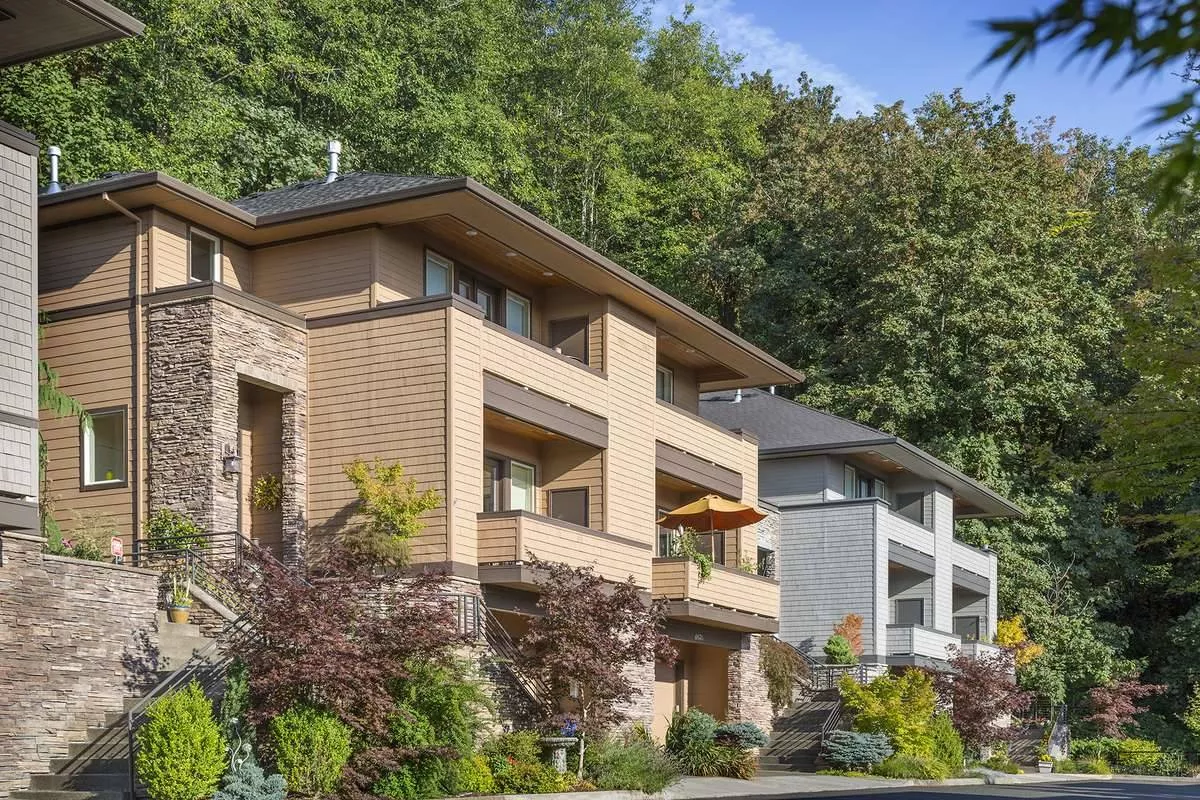

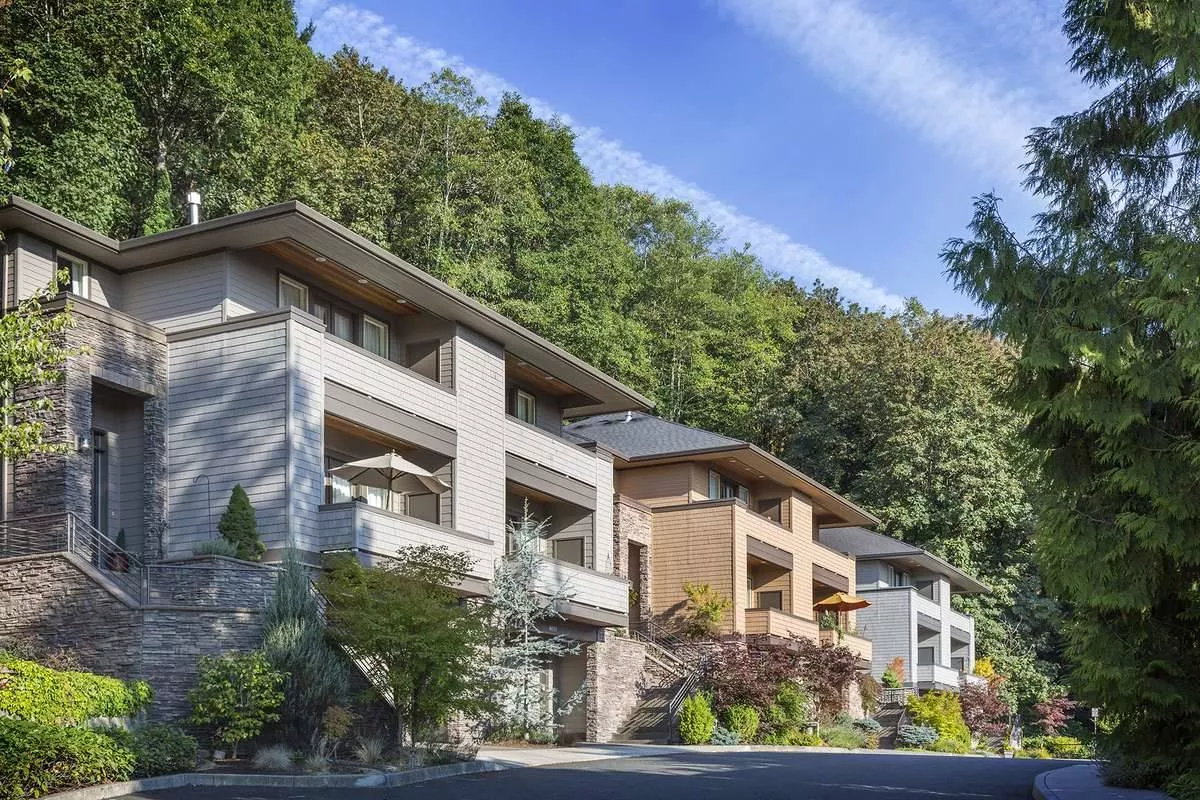

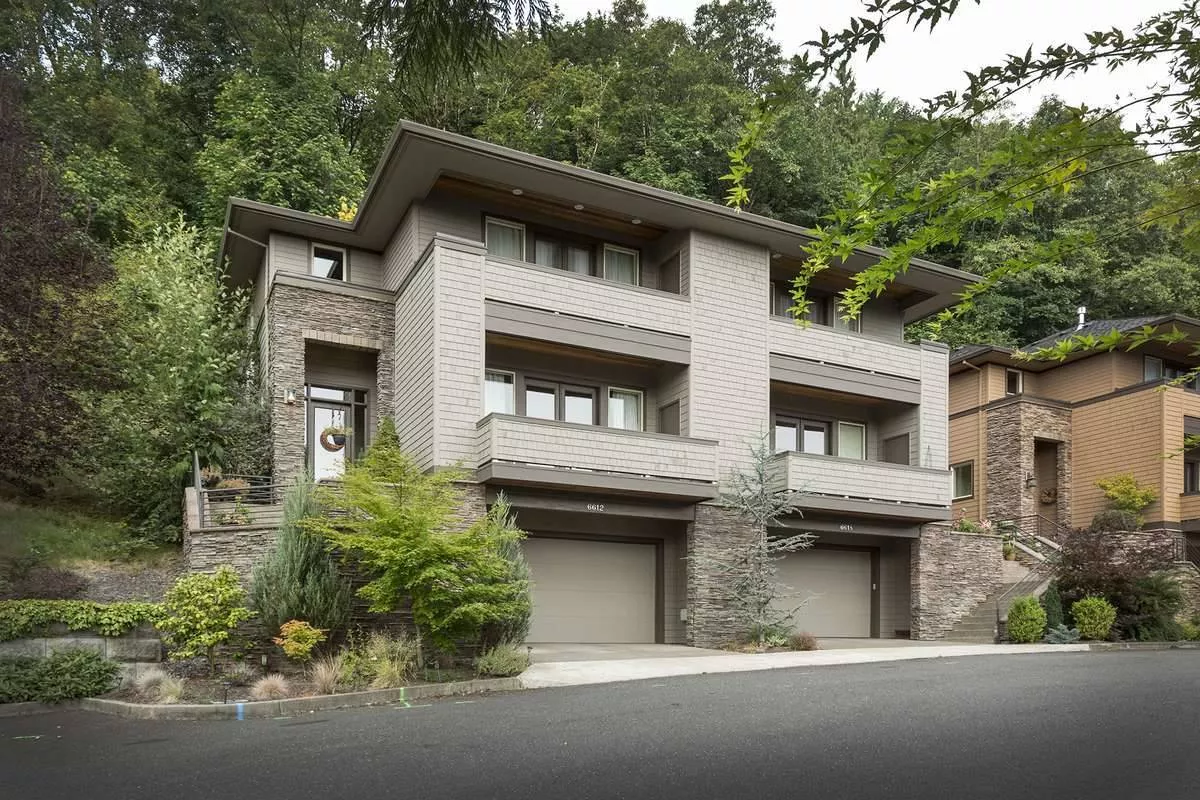

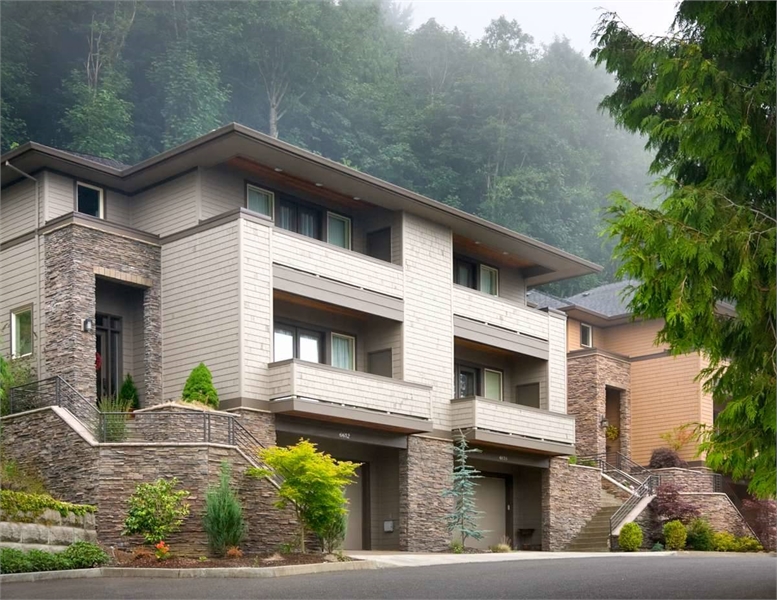

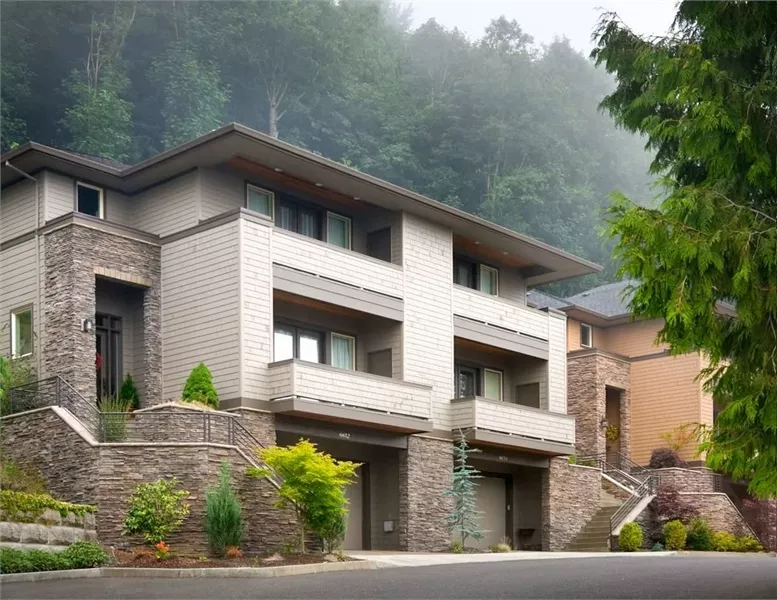

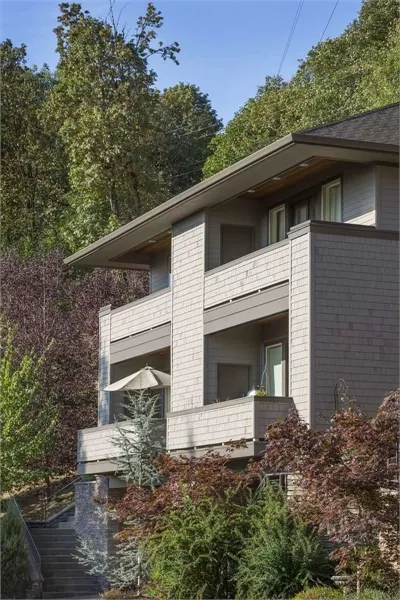

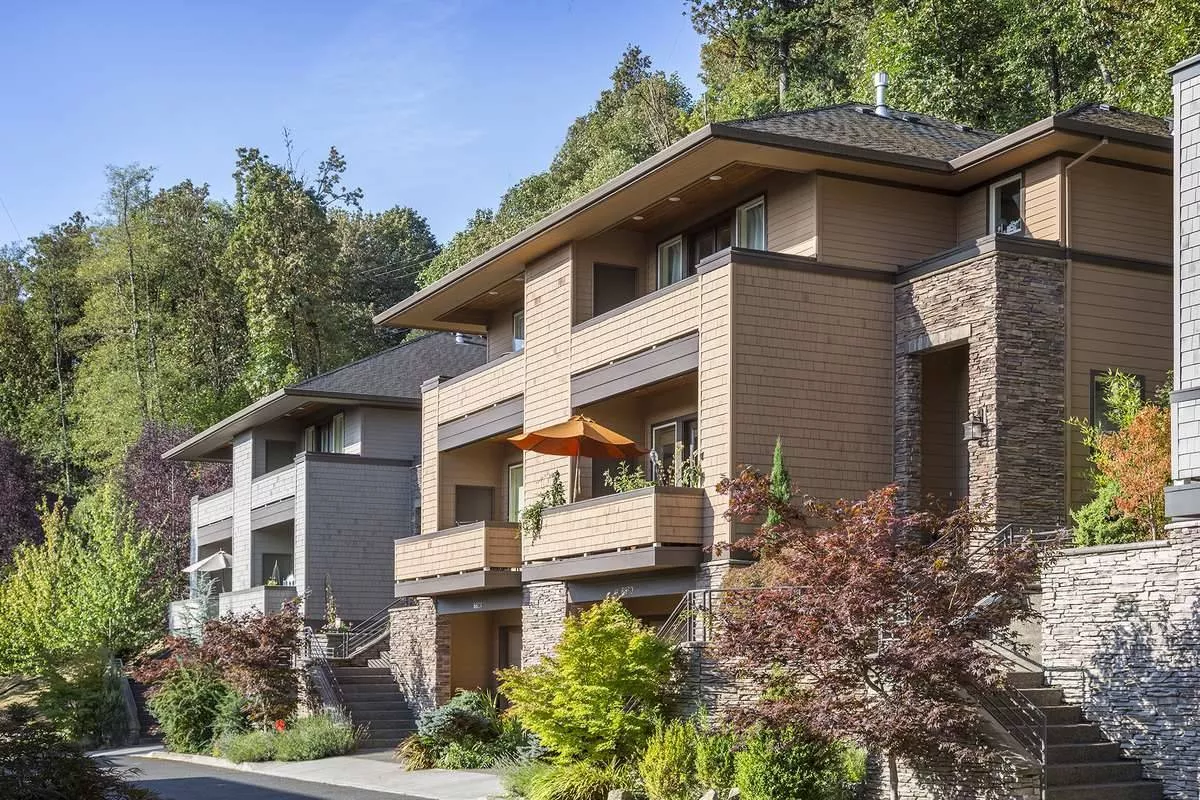

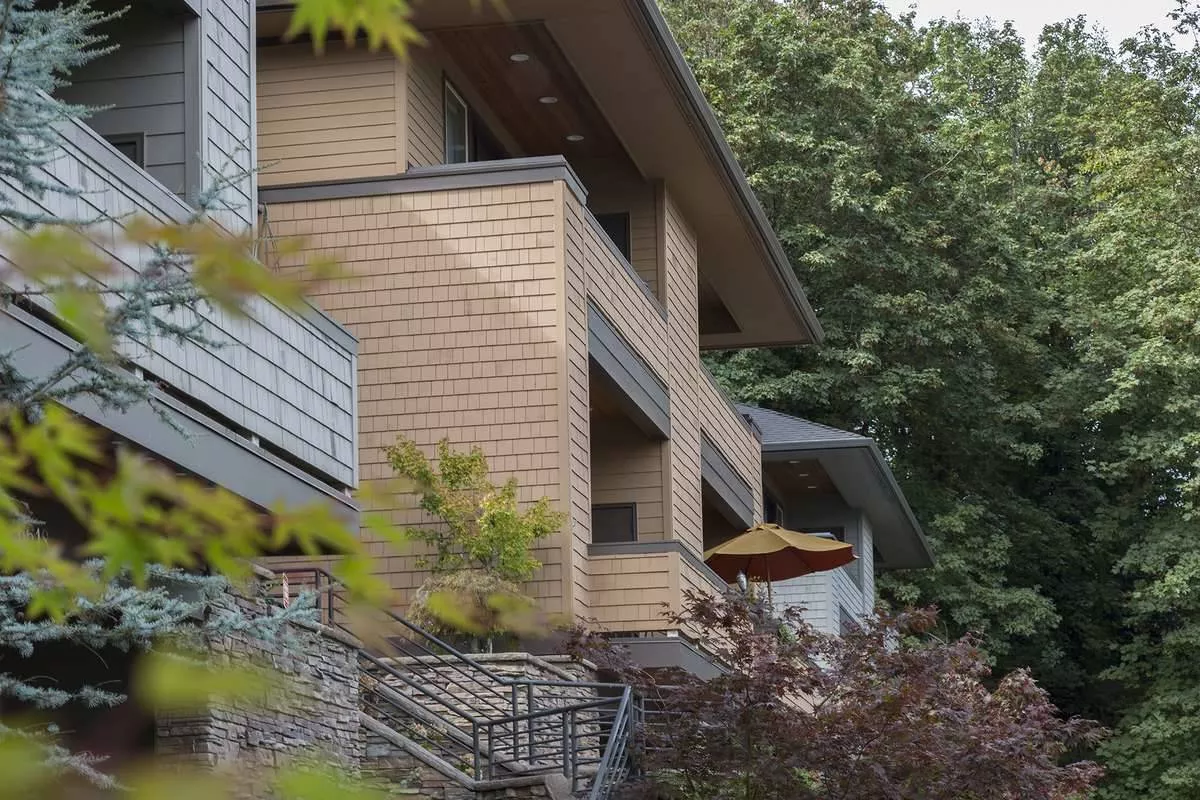

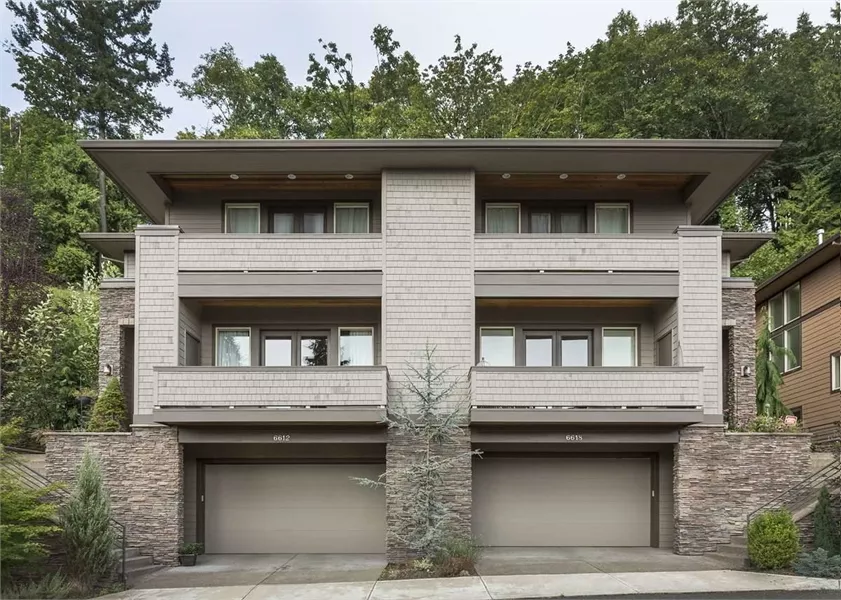

Front Exterior

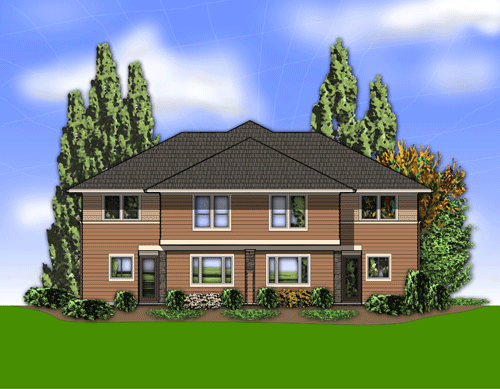

Rear Elevation

View All 11 Images | Photographs may reflect modified home

Sq Ft

2,861 FT²

From

$2,757.40

Bed

Bath

2.5

Stories

Garage

Depth

52'

Width

30'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

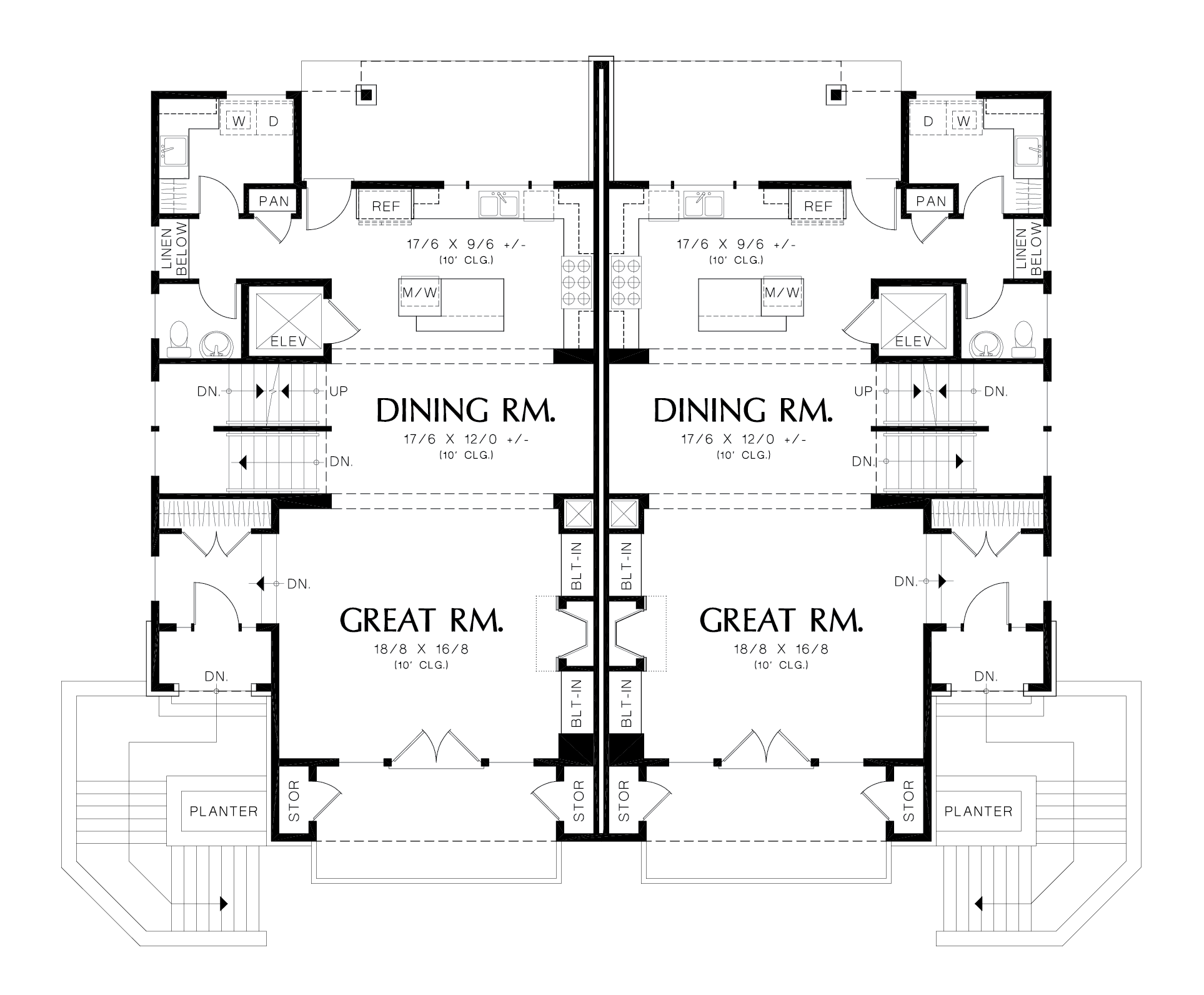

First Floor Plan

Second Floor Plan

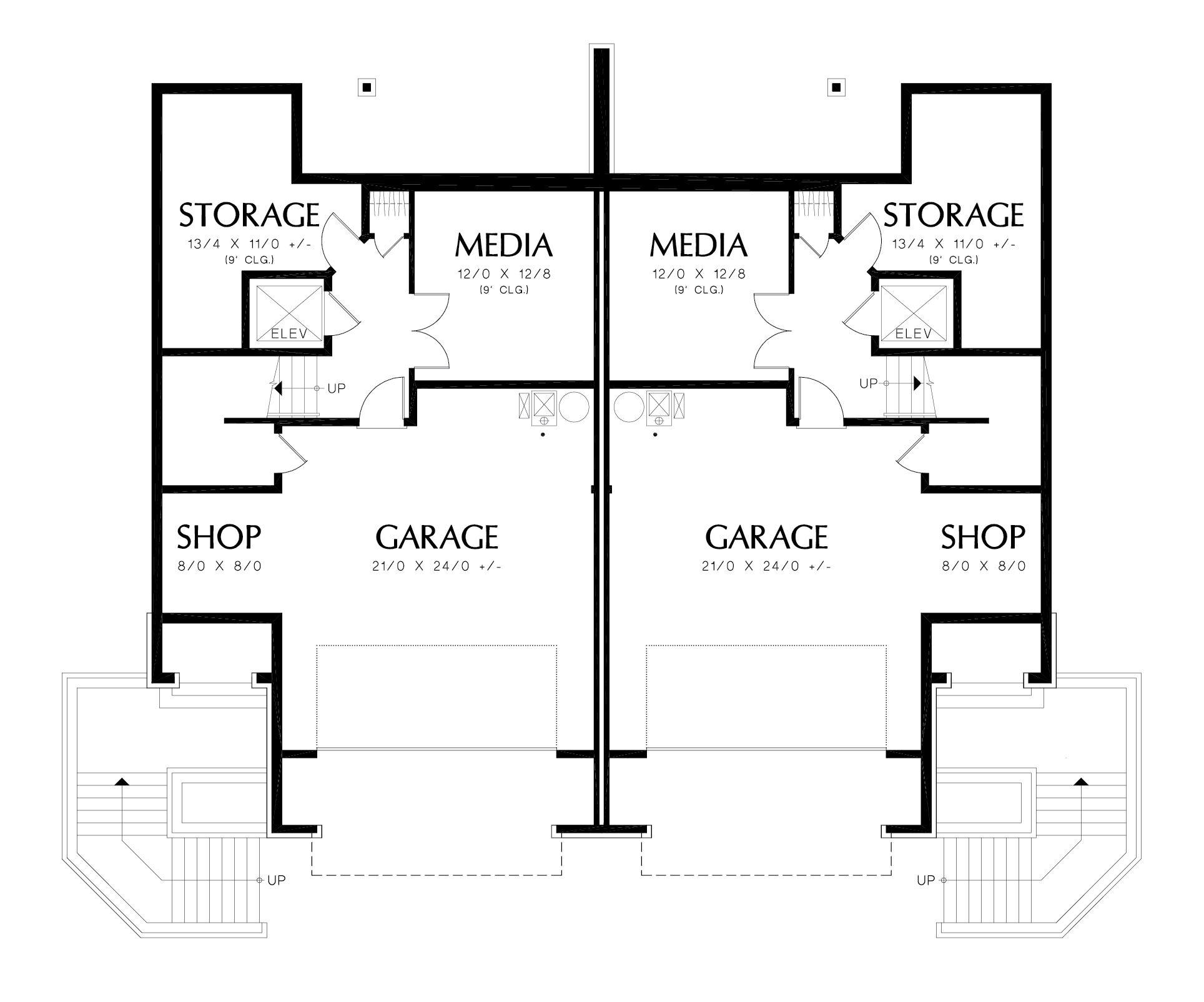

Lower Level

First Floor Plan

Second Floor Plan

Lower Level

About This Plan

An ideal multifamily dwelling to tuck into a hillside, each unit of this home is contained to just 30 feet in width. Whether the view is to the front or to the rear, projecting decks on the homes upper levels will provide residents with a place to relax while soaking it in. Stone and brick accents on the faade offer a natural counterpoint to the glass and metal deck railings and windows. Stone retaining walls with planters can be built to lead up to the main doors. Inside, a U-shape staircase and an elevator connect the floor plans three levels, making it accessible for anyone. The kitchen, dining room, and great room are conveniently open, allowing ceiling beams, flooring changes, cabinetry, and built-ins to define the rooms. The great room features a fireplace flanked by media built-ins.

The homes three bedrooms are on the top level. A walk-in closet, large shower, and spa tub outfit the master suite. Two more bedrooms share a full bath.

The ground level houses the garage, which includes space for a work bench. A media room and an unfinished storage area round out the floor plan.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Rear Porch
Deck

Foundation Options

Daylight Basement
Slab

Lot Options

Suited for sloping lot
Suited for view lot

Additional features

Fireplace
Foyer
Great Room
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Storage Space
Workshop

Garage Location

Under

Garage Options

Attached
Drive-under

5,722 Ft

Total Structure

2,861 Ft

Unit Heated

1,158 Ft

1st Floor

1,212 Ft

2nd Floor

491 Ft

Lower Floor

Bedrooms

2.5

Bathrooms

Garage

Stories

30' 0"

Width

52' 0"

Depth

32' 4"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

6/12

Primary Roof Pitch

Duplex

Dwelling Number

None

Bonus Access

Unheated Living Space

556 Ft

Garage

160 Ft

Deck

150 Ft

Patio

Exterior Styles

Contemporary

Modern

Collections

Open Floor Plan

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

$3,244

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$3,244

$3,444

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,444

$3,494

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$3,494

$6,488

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$6,488

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
