House Plan 3002: Royal Palms - 2503

This striking 4 bedroom home will heat and cool for a fraction of the cost of conventional construction because it is packed with energy saving construction techniques including 2x6 exterior walls. The floor plan is designed around a glass exterior atrium that really brightens the interior.  Read more >

House Plan Details

Sq. Ft.
2,519
Beds
4
Baths
2.1
Stories
2
Garages
2
Width
52' 0"
Depth
72' 0"
1st Floor
1,708
2nd Floor
811
Garage
571
Storage
144
Select Plan Package
PDF Construction Set - 1
$1050
Select Foundation Options
$0
Concrete Slab Foundation
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

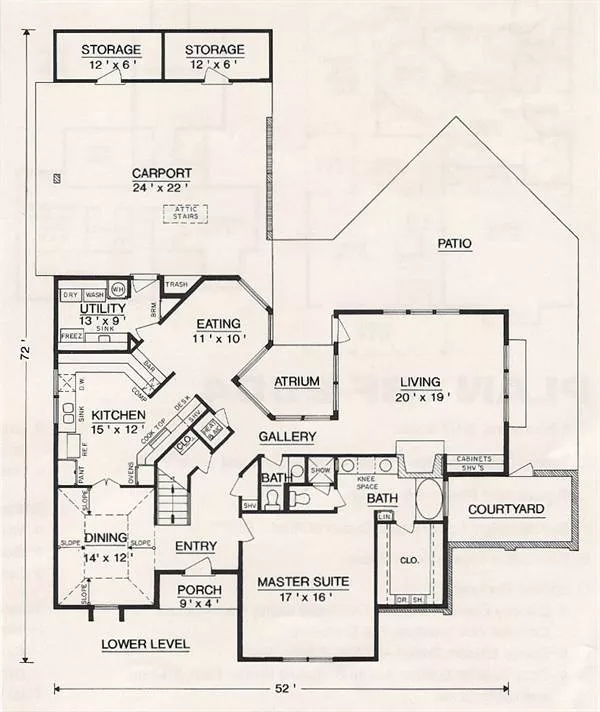

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 2.1
Garage: 2
Stories: 2
Exterior Style
European
Traditional
Dimensions
Width: 52' 0"
Height: 32' 0"
Depth: 72' 0"
Heated Living Space
Total Sq. Ft: 2,519
1st Floor: 1,708
2nd Floor: 811
Unheated Living Space
Garage: 571
Storage: 144
Porch: 36
Ceiling
Upper Ceiling Ft: 8
Main Ceiling Ft: 8
Framing Information
Framing: 2x6
Roof Framing: Stick
Bedroom Features
Kitchen Features
Additional Room Features
Garage Location
Rear
Garage Features
Attached
Carport
Oversized
Side-entry
Lot Features
Suited for corner lot
Suited for narrow lot
Suited for view lot
Roof Pitch
Primary: 12:12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
