Search Plans


Sq Ft
5,180 FT²

Beds
5

Baths
4

Stories
2

Garage
3

Depth
64'

Width
118'
From
$2,746.00
© copyright by designer
View All 66 Images | Photographs may reflect modified home
Sq Ft
5,180 FT²
From
$2,746.00
Beds
5
Baths
4
Stories
2
Garage
3
Depth
64'
Width
118'

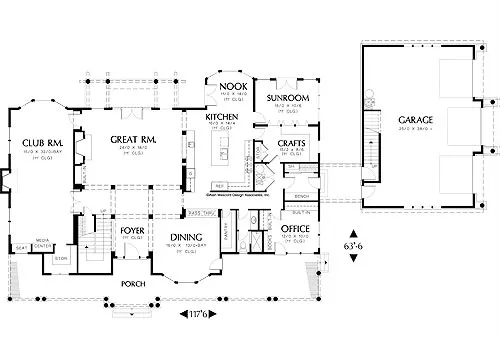

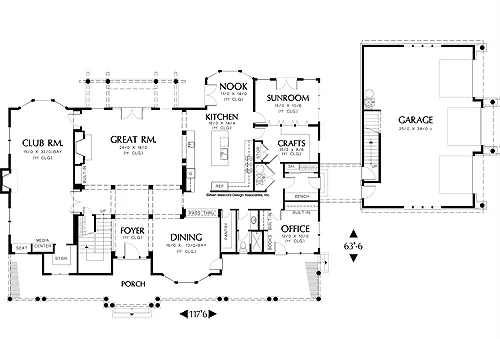

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Note: The main house has an attic/storage area with an additional 1604+ sq. ft. and a separate Guest Suite over the Garage with another 908+ sq. ft.

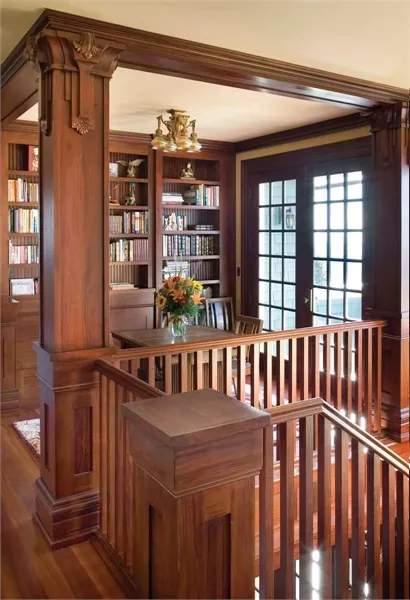

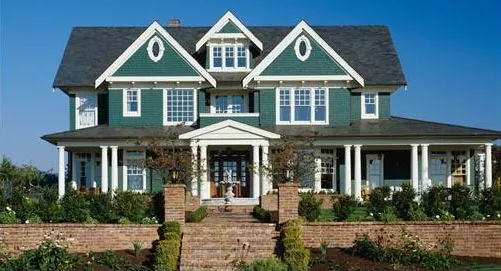

There's no doubt, this home plan is pure luxury. The plan incorporates a wealth of space on two levels plus every amenity a family could desire. The main level is host to a bevy of rooms devoted to special interests - an office, complete with storage units and a French door to the front porch; a crafts or hobby room, furnished with an L-shaped work surface; a sunroom, replete with windows and French doors; and a club room that's sized for gatherings on a grand scale.

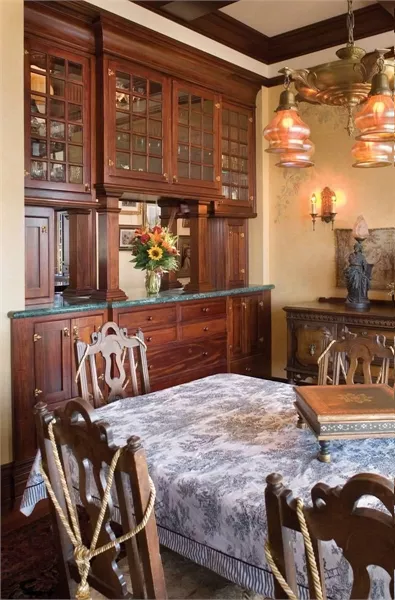

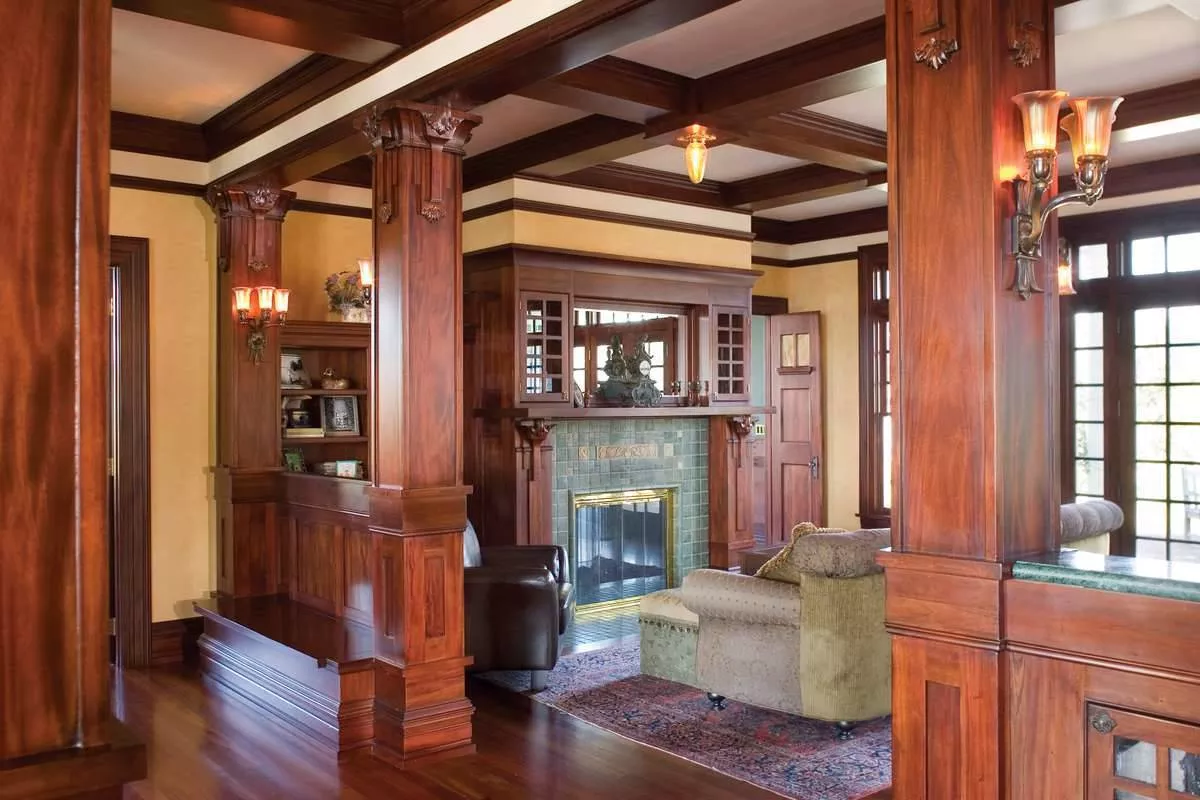

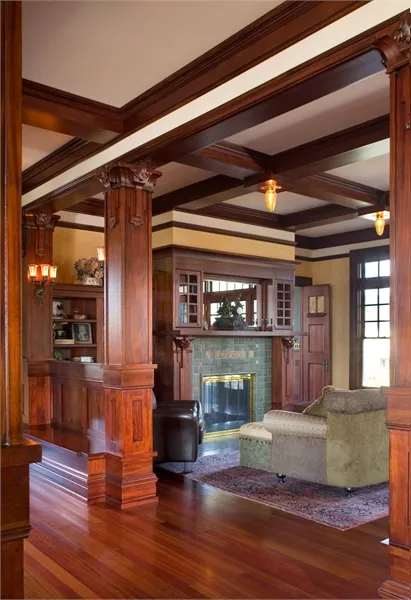

The family area is at the hub of the main level. Defined by columns, this area includes a great room with a fireplace, a kitchen, and a casual dining nook with a wall of windows. Furnished with multiple workstations, the kitchen can accommodate a cook and helpers. The island is equipped with a sink and dishwasher. A secondary sink occupies the half-wall facing the family room. A walk-in pantry beside the dining room supplements storage.

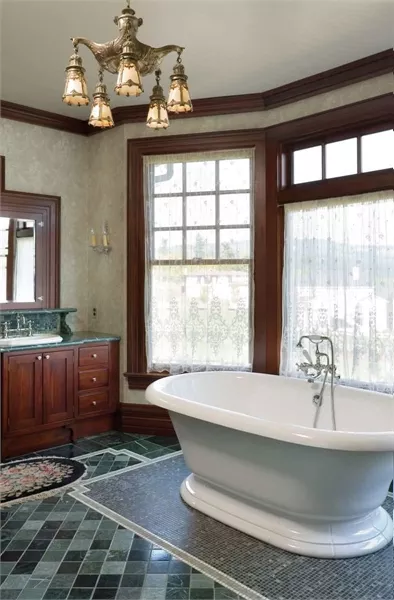

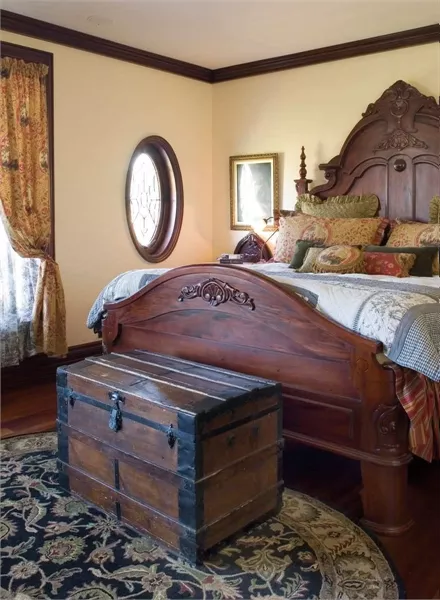

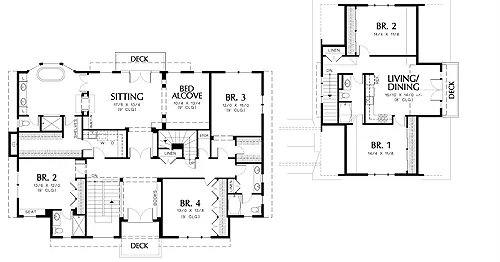

The upper level of this home accommodates three bedrooms, two baths, a full-service laundry room, and a master suite that's a dream come true. The master bedroom is divided into sitting and sleeping areas. French doors open it to a private deck. A two-sided fireplace warms both the sitting area and the bath. The highlight of the spacious bath is an oval tub tucked beneath a bay window.

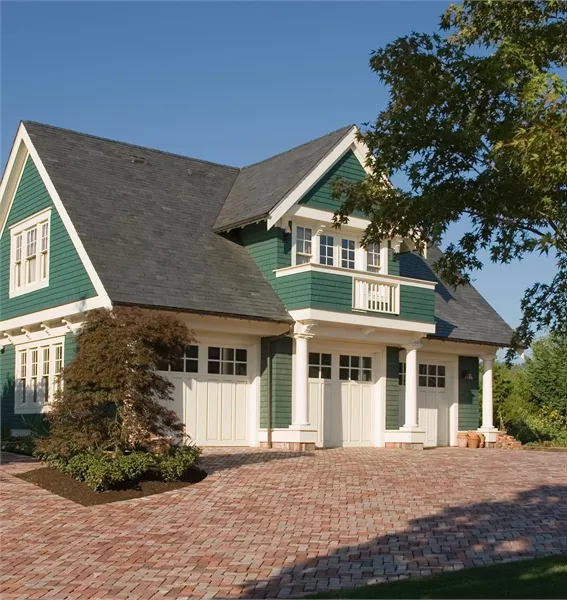

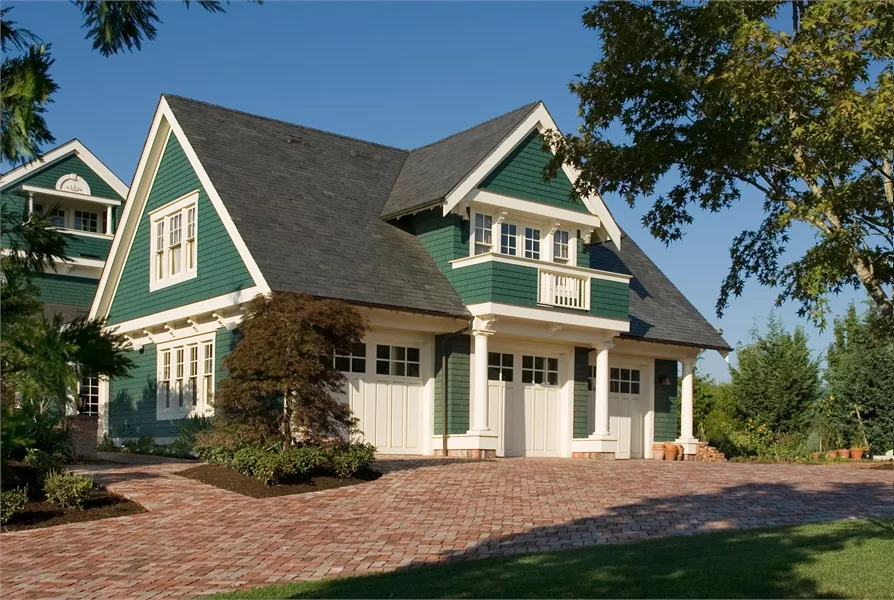

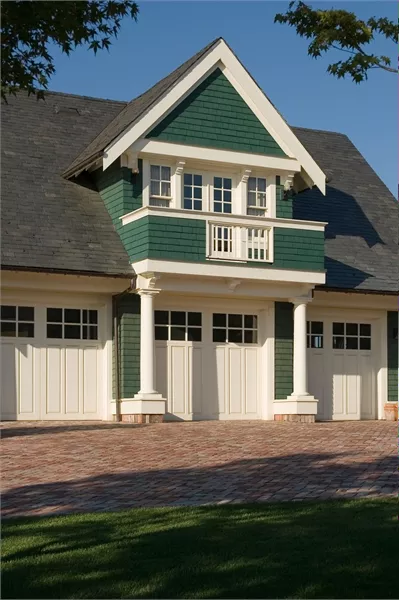

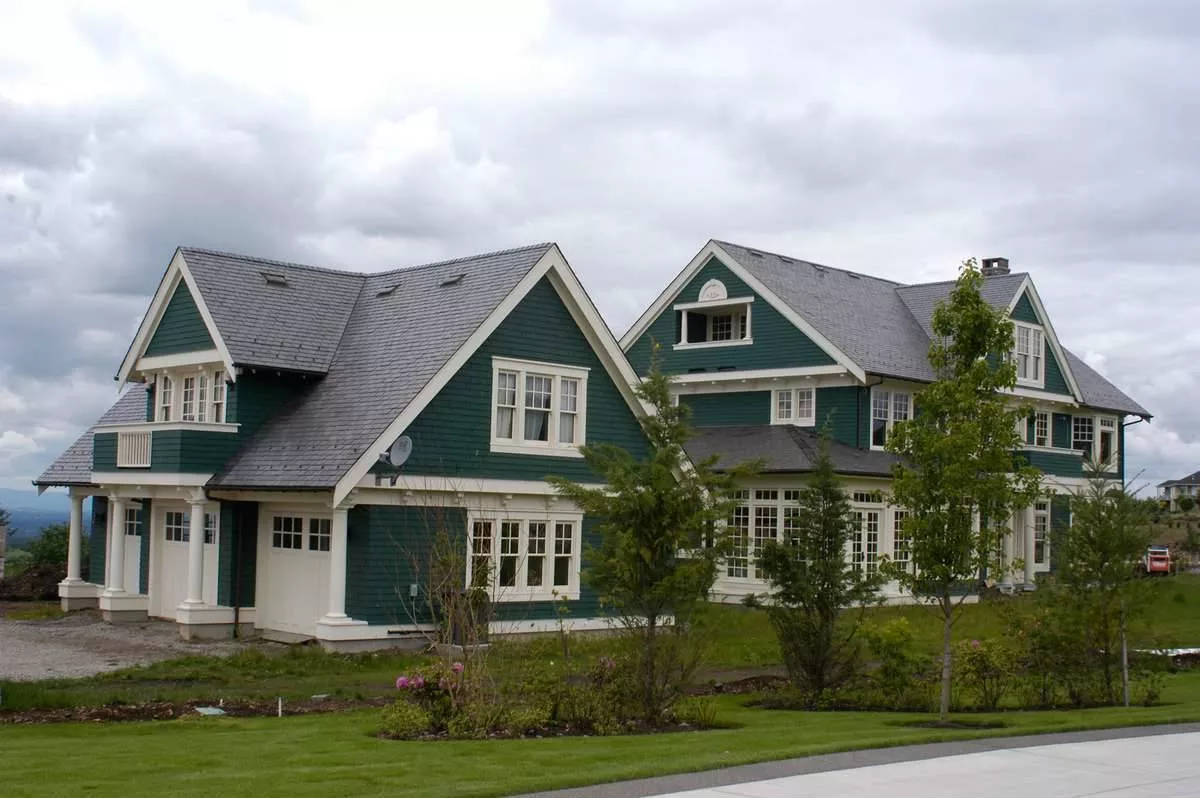

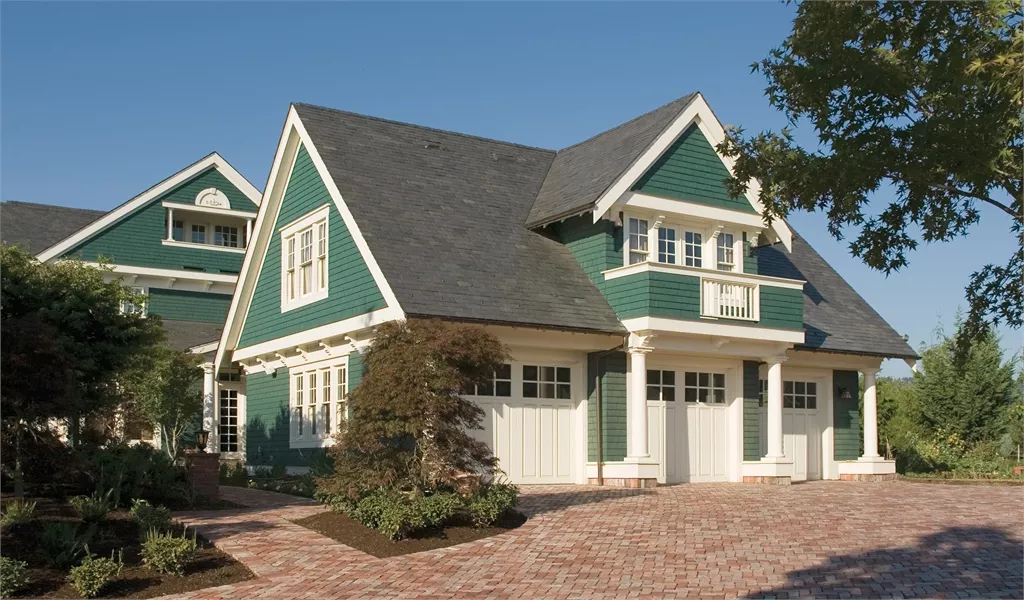

A breezeway links the side-access garage to the house with an anteroom that includes a coat closet, shelves for briefcases and backpacks, and a bench for removing boots. Above the garage, a two-bedroom suite provides independent living space.



FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
2 Primary Suites
Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Walk-in Closet
Exterior features
Breezeway

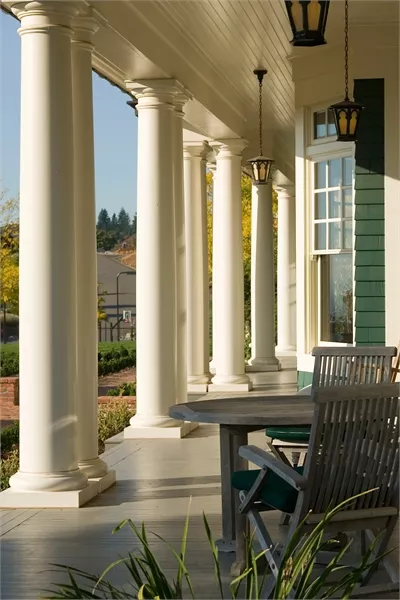

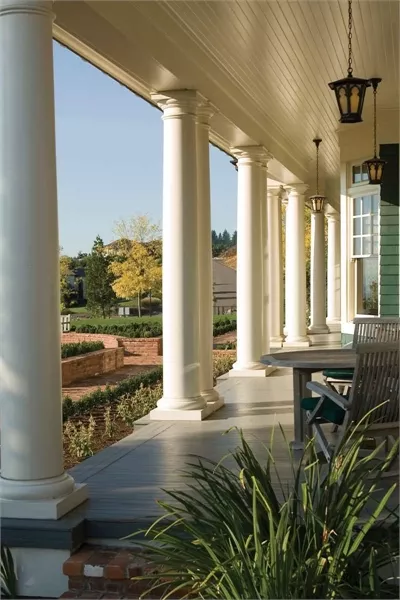

Covered Front Porch
Front Porch
Screened Porch/Sunroom
Wraparound Porch
Foundation Options
Basement
Crawlspace
Slab
Lot Options
Suited for corner lot
Suited for view lot
Additional features
Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Home Office
In-law Suite
Laundry 2nd Fl
Mud Room
Open Floor Plan
Rec Room
Storage Space
Unfinished Space
Garage Location
Side
Garage Options
Detached
Side-entry
With Living Space
5,180 Ft
2
Total Heated
3,030 Ft
2
1st Floor
2,150 Ft
2
2nd Floor
5
Bedrooms
4
Bathrooms
3
Garage
2
Stories
118' 0"
Width
64' 0"
Depth
36' 2"
Height
11' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
9/12
Primary Roof Pitch
12/12
Secondary Roof Pitch
4/12
Porch Roof Pitch
Single
Dwelling Number
1st Floor
Bonus Access

Unheated Living Space
1,079 Ft
2
Garage
1,604 Ft
2
Storage
631 Ft
2
Porch
908 Ft
2
Bonus Room


Plan Package Options

 Select Plan Package
$2,746
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,746
$2,946
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,946
$2,996
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,996
$5,492
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$5,492
 Need To Reverse Plan? (Optional)
$225
Readable Reverse

Reverse house plans with readable text and dimensions

$225
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
