House Plan 3085: Revere

The Park Place encourages the occupants to lead an efficient lifestyle. There are plenty of well thought out amenities embedded in the design, blending efficiency, convenience and practicality into the lives of the occupants.  Read more >

House Plan Details

Sq. Ft.
1,613
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
40' 0"
Depth
56' 0"
1st Floor
1,613
Garage
475
Porch
75
Select Plan Package
PDF Files - Single Build
$953
Select Foundation Options
$0
Crawlspace
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

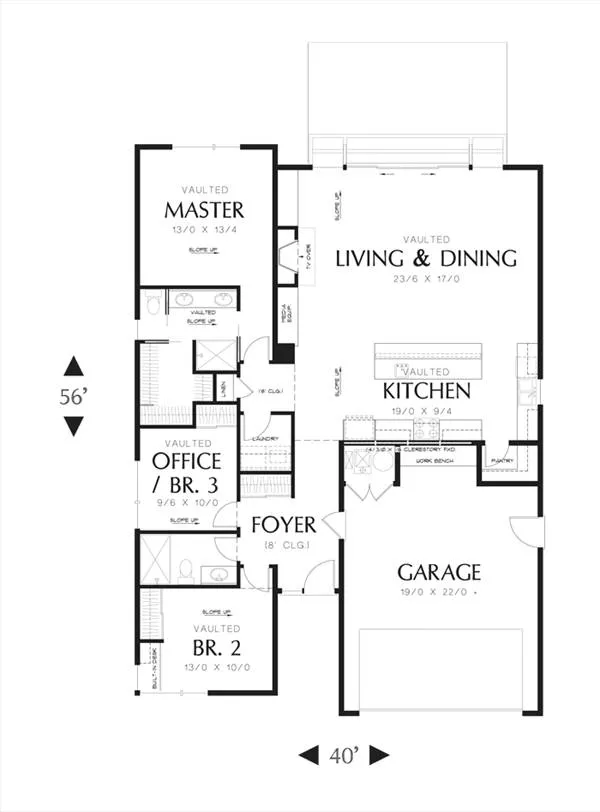

Main Floor Plan

Main Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Contemporary
Modern
Ranch
Dimensions
Width: 40' 0"
Height: 16' 0"
Depth: 56' 0"
Heated Living Space
Total Sq. Ft: 1,613
1st Floor: 1,613
Unheated Living Space
Garage: 475
Porch: 75
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: varies
Framing Information
Framing: 2x6
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
Master Bdrm Main Floor
Walk-in Closet
Kitchen Features
Country Kitchen
Kitchen Island
Walk-in Pantry
Additional Room Features
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for narrow lot
Roof Pitch
Primary: 1/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
