Sq Ft
3,305 FT²

Beds
4

Baths
3.5

Stories
2

Garage
2

Depth
69' 10"

Width
41'

From
$1,652.00

Left View

Front View

Rear View

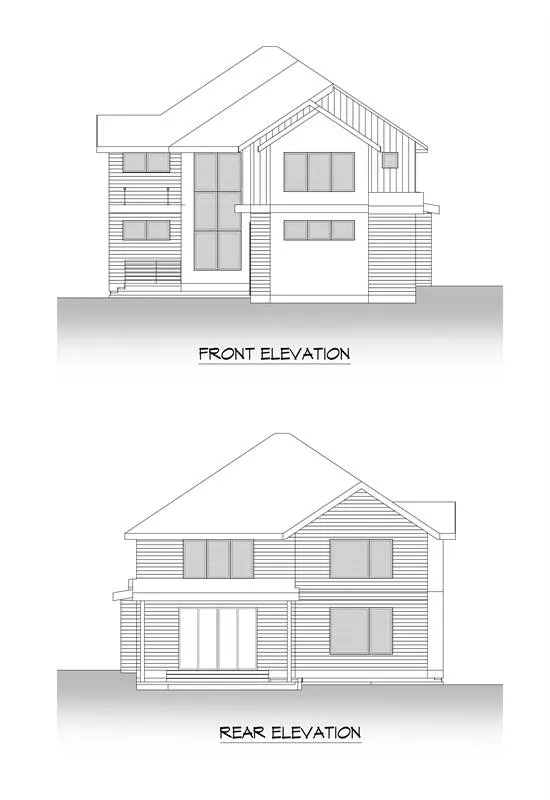

Front and Rear Elevations

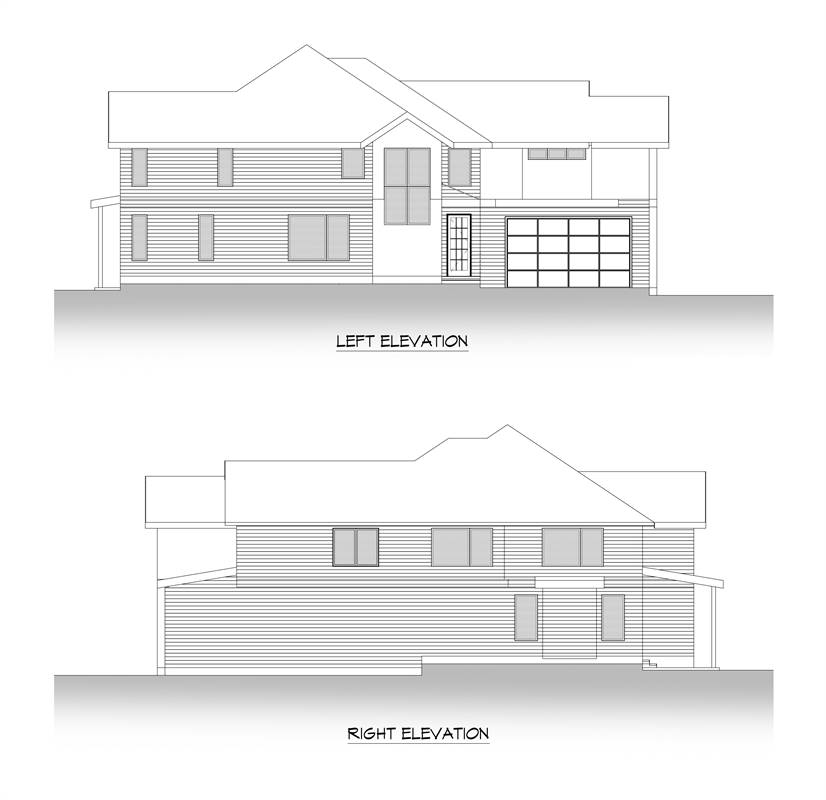

Left and Right Elevations

View All 6 Images | Photographs may reflect modified home

Sq Ft

3,305 FT²

From

$1,652.00

Beds

Baths

3.5

Stories

Garage

Depth

69' 10"

Width

41'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

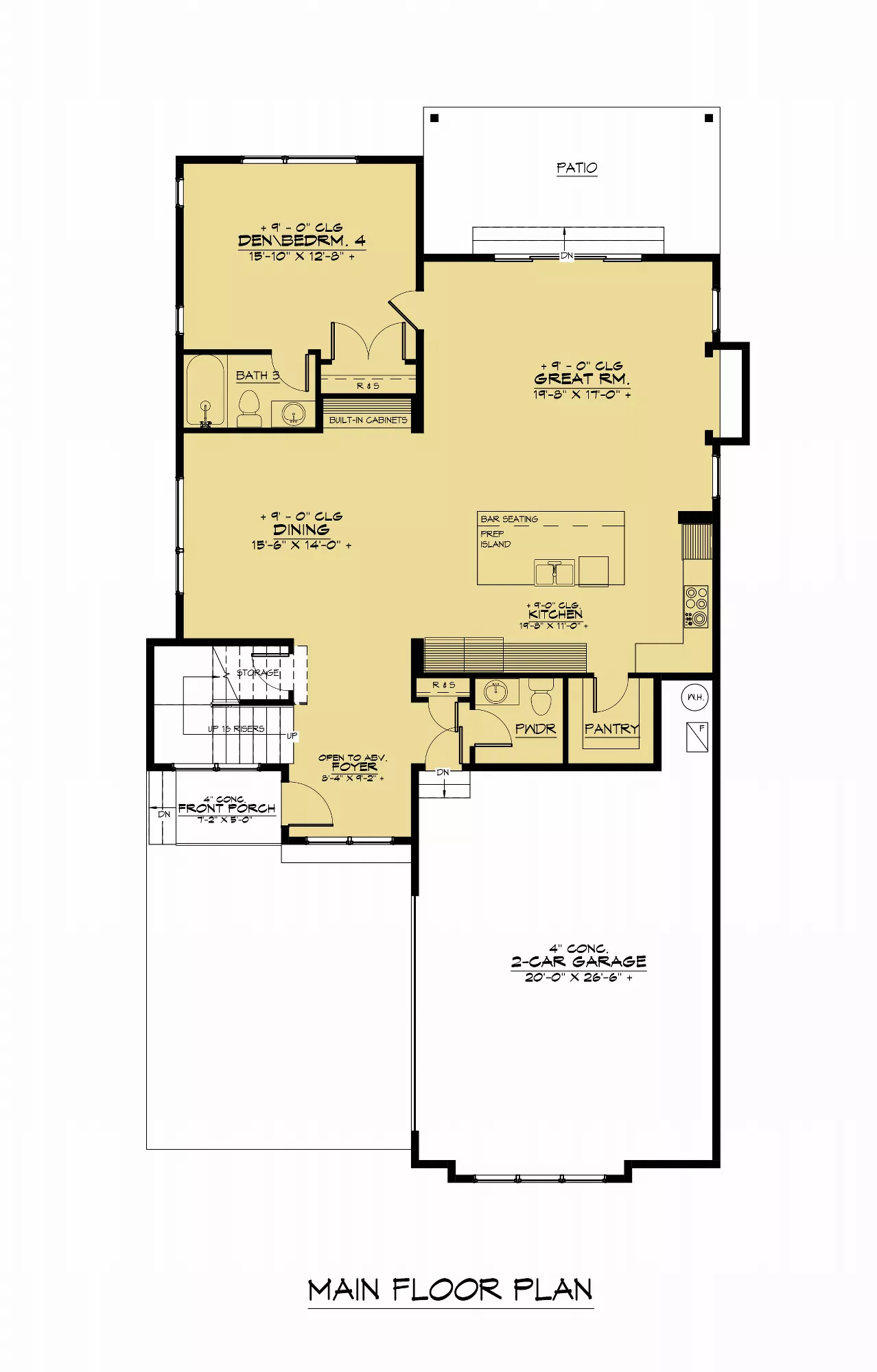

1st Floor

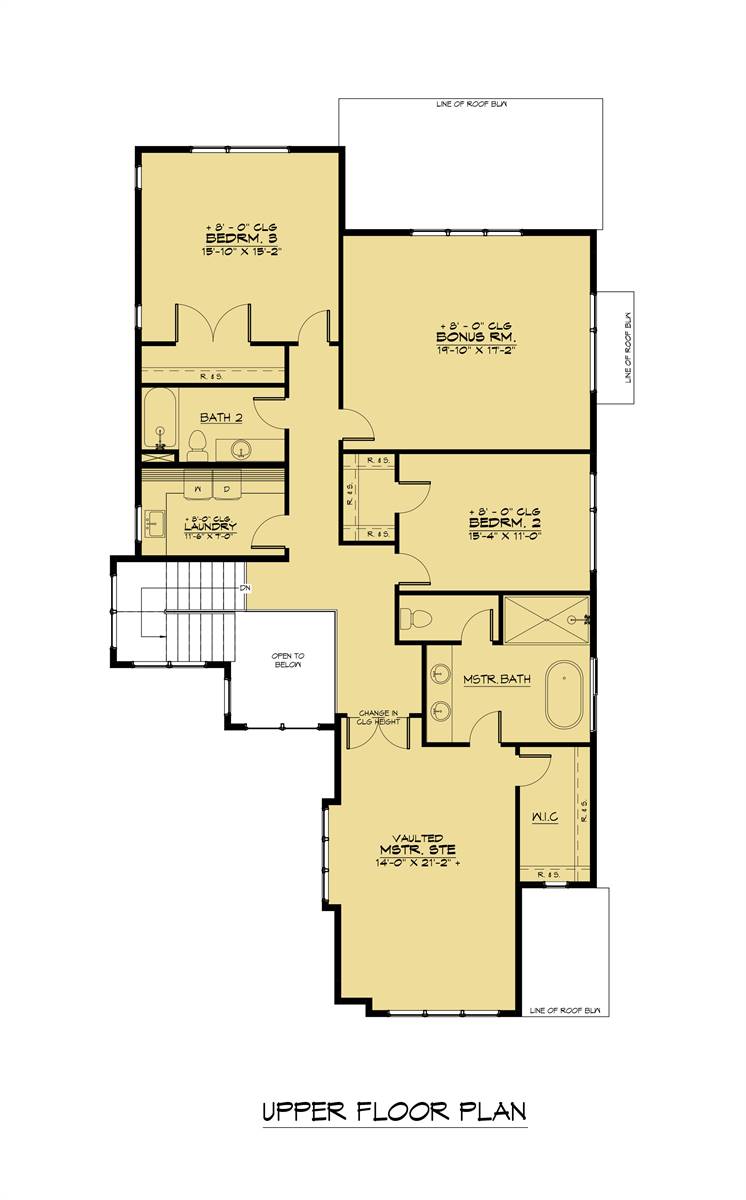

2nd Floor

1st Floor

2nd Floor

About This Plan

If you need a larger home with a tight shape for a neighborhood, consider House Plan 3176. This design is only 41' wide, but it offers 3,305 square feet, four bedrooms, and three-and-a-half baths. The two-car garage is placed in front with side entry to maintain chic modern curb appeal. Inside, you'll find open living with an island kitchen and a den/bedroom suite on the main level. The master suite and two other bedrooms are upstairs along with a spacious bonus and the laundry room. House Plan 3176 has a wonderful layout for growing families and hosts!

FEATURES & DETAILS

Kitchen features

Kitchen Island
L-Shaped
Pantry
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch

Lot Options

Suited for narrow lot

Additional features

Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Laundry 2nd Fl
Vaulted Foyer

Garage Location

Front

Garage Options

Attached
Side-entry

4,145 Ft

Total Structure

3,305 Ft

Total Heated

1,467 Ft

1st Floor

1,838 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

41' 0"

Width

69' 10"

Depth

31' 7"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

8:12

Primary Roof Pitch

2:12

Secondary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

602 Ft

Garage

36 Ft

Porch

202 Ft

Deck

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,652

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,652

$1,952

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,952

$2,102

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$2,102

$3,139

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,139

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
