Ragatta Landing - 1436, THD-8996

Sq Ft
2,072 FT²
Bed
3
Bath
3
Stories
2.5
Garage
1
Depth
34'
Width
32'
From
$900.00
© copyright by designer
View All 6 Images | Photographs may reflect modified home
Sq Ft
2,072 FT²
From
$900.00
Bed
3
Bath
3
Stories
2.5
Garage
1
Depth
34'
Width
32'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

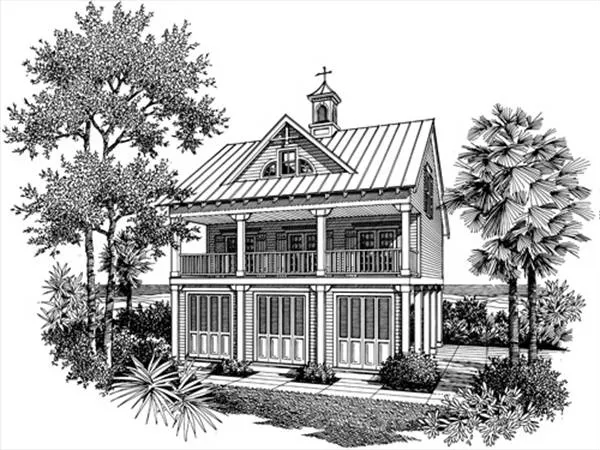

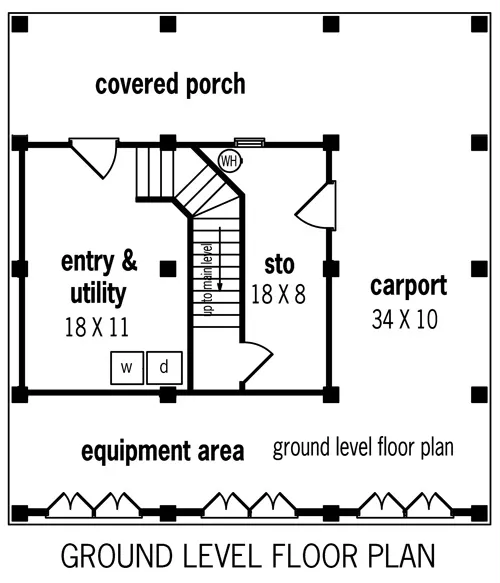

Designed as an affordable beach cottage, this two bedroom doll house has a full length front porch to enjoy sunsets and beach scenery. The ground level can be used as an open carport. It also houses an enclosed stairwell entry to the main level, a utility room and storage area for lockout storage.

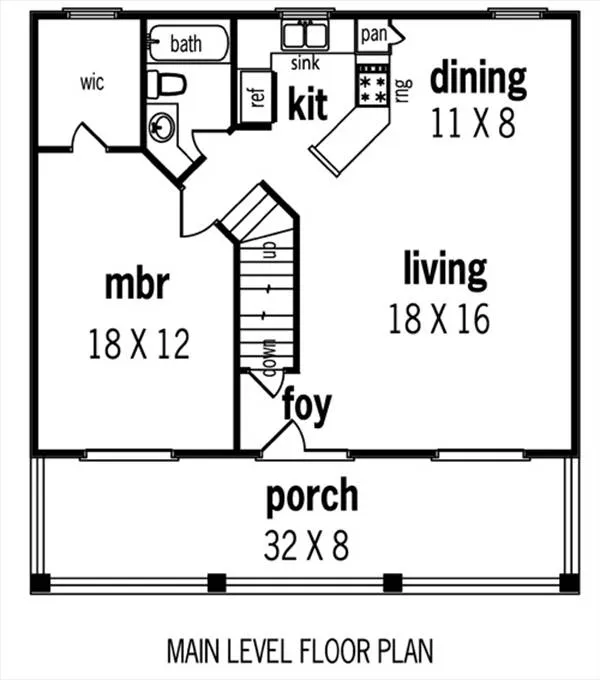

The living room has soaring two story ceilings and can be viewed from the ascending stairwell and 2nd floor balcony. There is a glassed in observation post at the upper level for taking advantage of the views.


FEATURES & DETAILS

Bedroom features
Primary Bdrm Upstairs
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Lot Options
Suited for narrow lot
Garage Location
Under
Garage Options
Attached
1,708 Ft
2
Total Structure
2,072 Ft
2
Total Heated
1,452 Ft
2
1st Floor
620 Ft
2
2nd Floor
1,088 Ft
2
Lower Floor
3
Bedrooms
3
Bathrooms
1
Garage
2.5
Stories
32' 0"
Width
34' 0"
Depth
8' 0"
Main Floor Ceiling
8' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
9.5:12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space


Plan Package Options

 Select Plan Package
$700
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$700
$900
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$900
$1,005
4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,005
$1,050
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,050
$1,110
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,110
$1,160
8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,160
$1,600
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,600
 Need To Reverse Plan? (Optional)
$125
Readable Reverse

Reverse house plans with readable text and dimensions

$125
  Select Foundation Option
  Add-Ons (Optional)

Free Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
